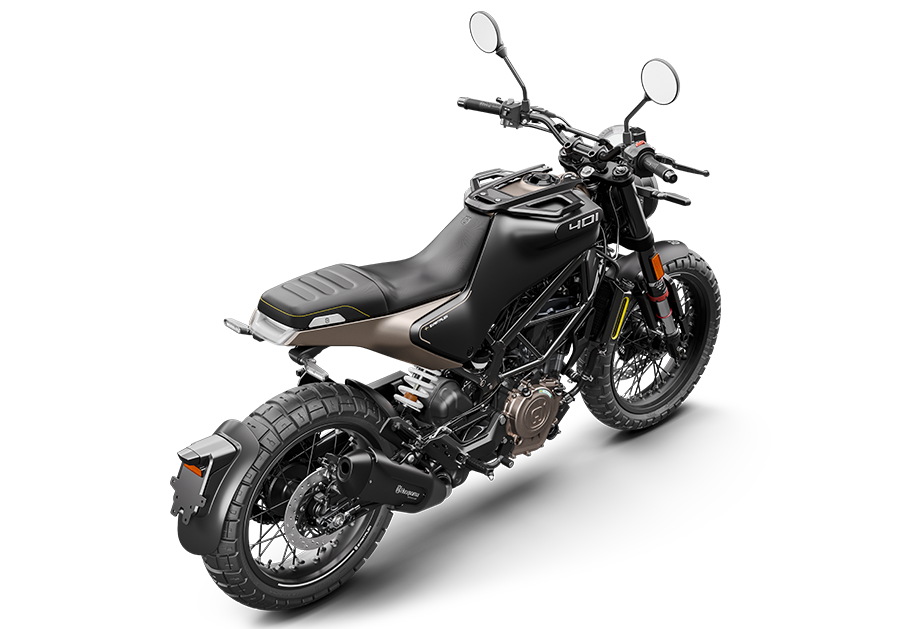

The Svartpilen 401 makes no excuses about its rugged appeal. It is by definition a motorcycle at home on the fringes of a metropolitan playground, where the blacktop is less than perfect.
Making use of its lightweight and punchy engine to navigate side streets, it is a master of all its surveys. The dark colors and graphics enhance the stunning appearance and reflect the progressive mix of modern thinking and classic design following the brand's Swedish heritage.
ENGINE
-
TRANSMISSION6-speed
-
COOLINGLiquid cooled
-
POWER IN KW32 kW
-
STARTERElectric starter
-
STROKE60 mm
-
BORE89 mm
-
CLUTCHPASC™ antihopping clutch, mechanically operated
-
CO2 EMISSIONS77 g/km
-
DISPLACEMENT373 cm³
-
EMSBosch EMS
-
DESIGN1-cylinder, 4-stroke engine
-
FUEL CONSUMPTION3.6 l/100 km
-
LUBRICATIONForced oil lubrication with 2 oil pumps
CHASSIS
-
WEIGHT (WITHOUT FUEL)152 kg
-
TANK CAPACITY (APPROX.)9.5 l
-
ABS two channel Bosch 10.1MB
-
FRONT BRAKE DISC DIAMETER320 mm
-
REAR BRAKE DISC DIAMETER230 mm
-
FRONT BRAKEByBre, opposed four-piston caliper, brake disc
-
REAR BRAKEByBre, single-piston, floating caliper, brake disc
-
CHAINX-Ring 5/8 x 1/4"
-
FRAME DESIGNChrome-moly tubular space frame, powder-coated
-
FRONT SUSPENSIONWP APEX 43
-
GROUND CLEARANCE145 mm
-
REAR SUSPENSIONWP APEX - Monoshock
-
STEERING HEAD ANGLE65 °
-
SUSPENSION TRAVEL (FRONT)142 mm
-
SUSPENSION TRAVEL (REAR)142 mm
