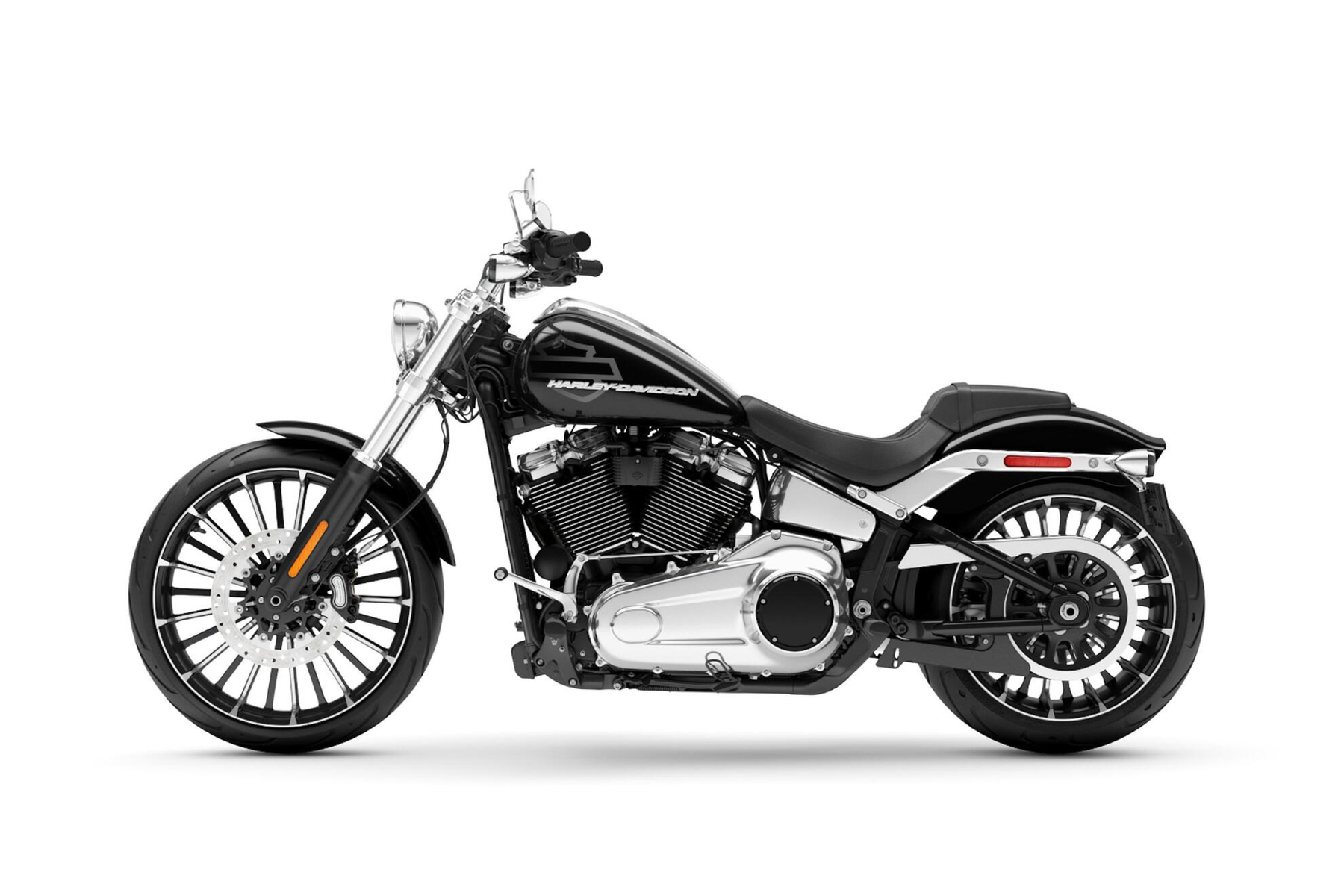

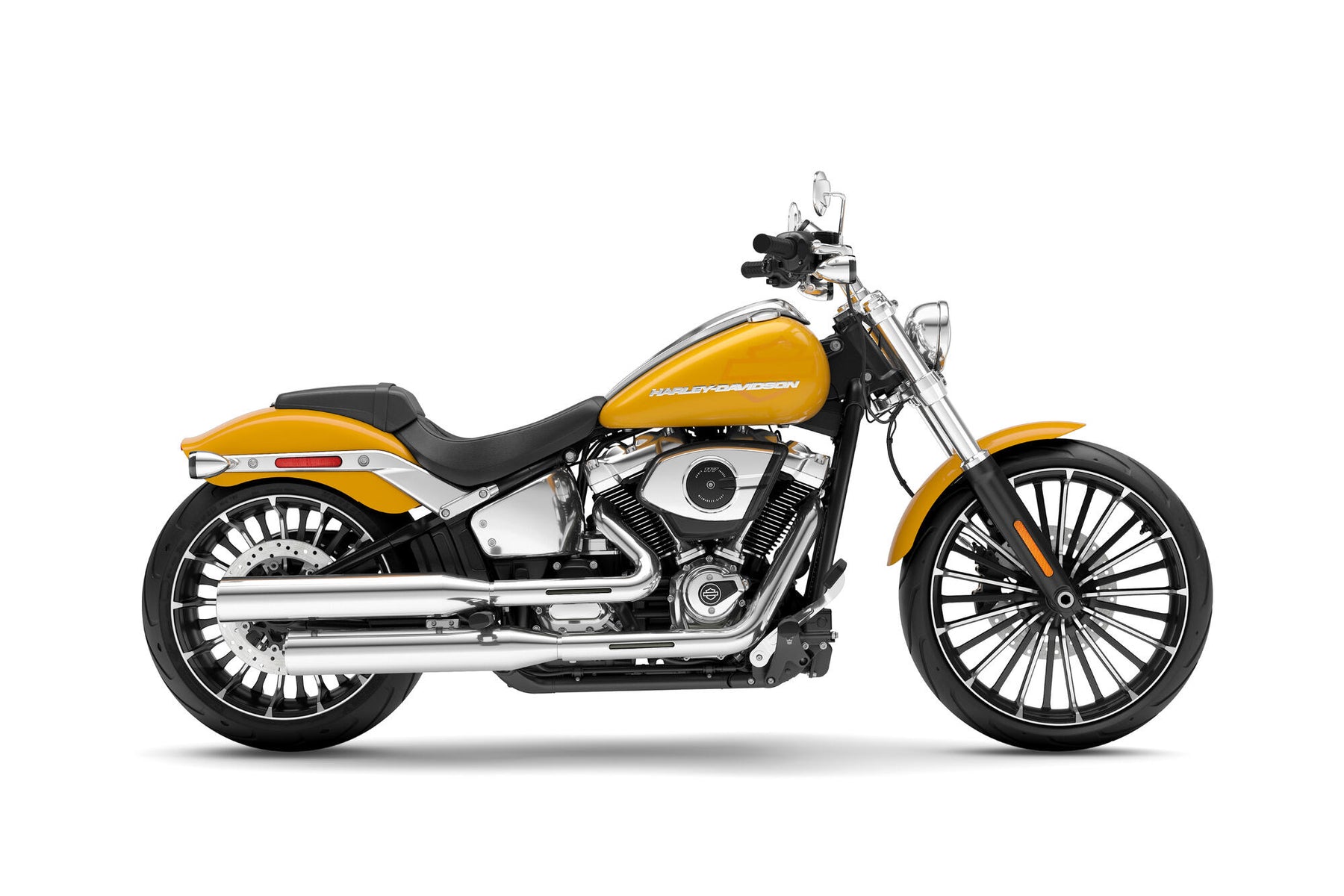

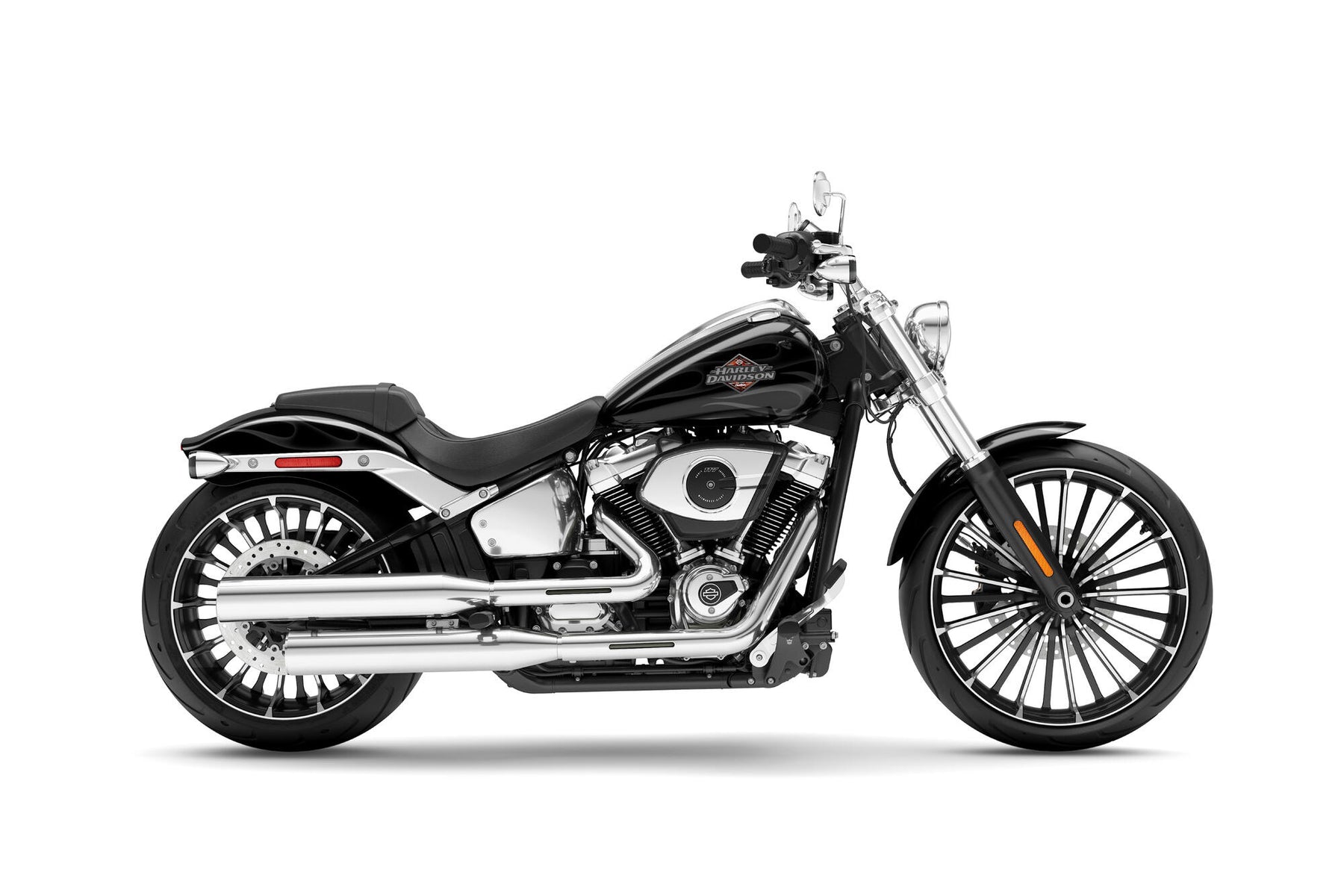

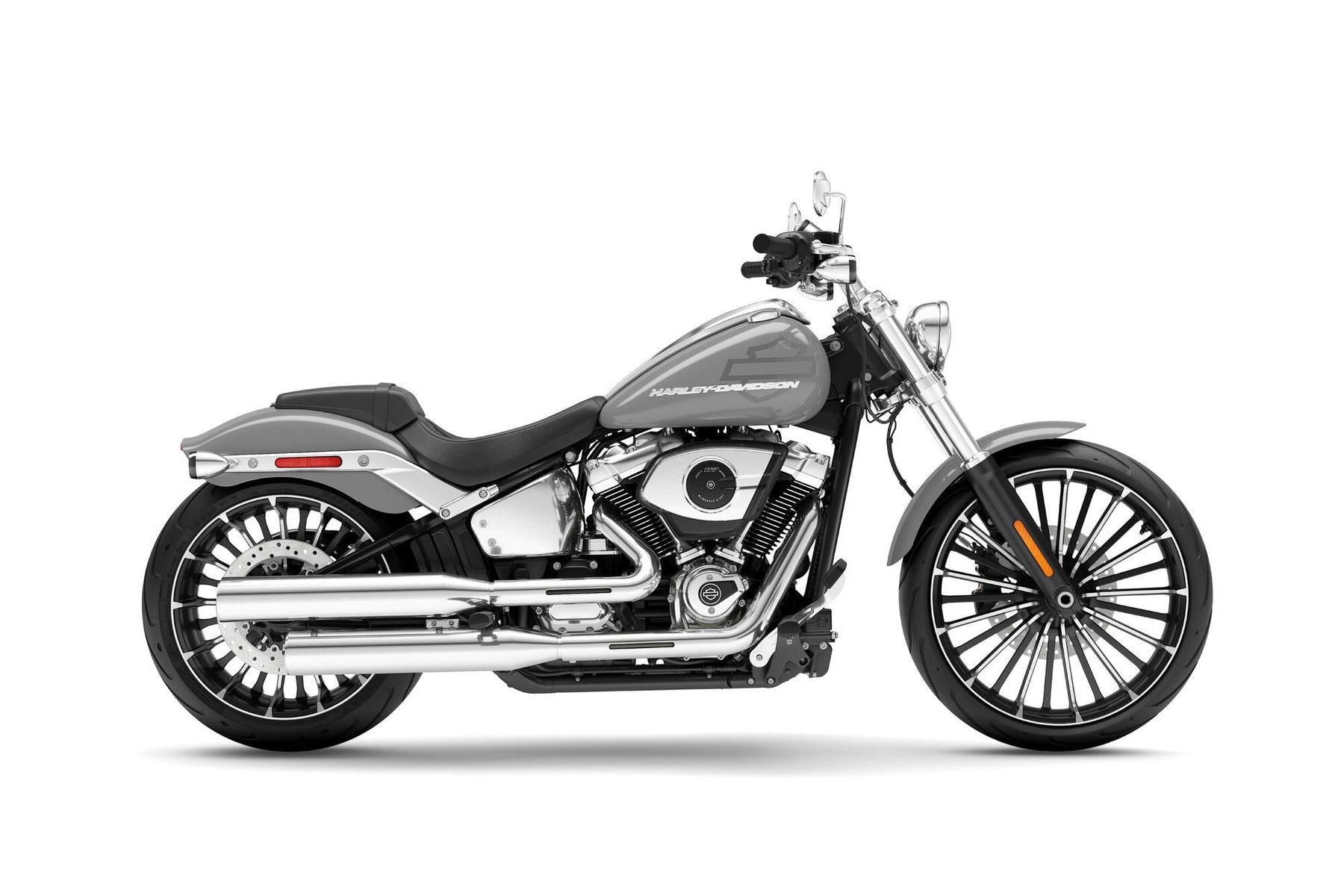

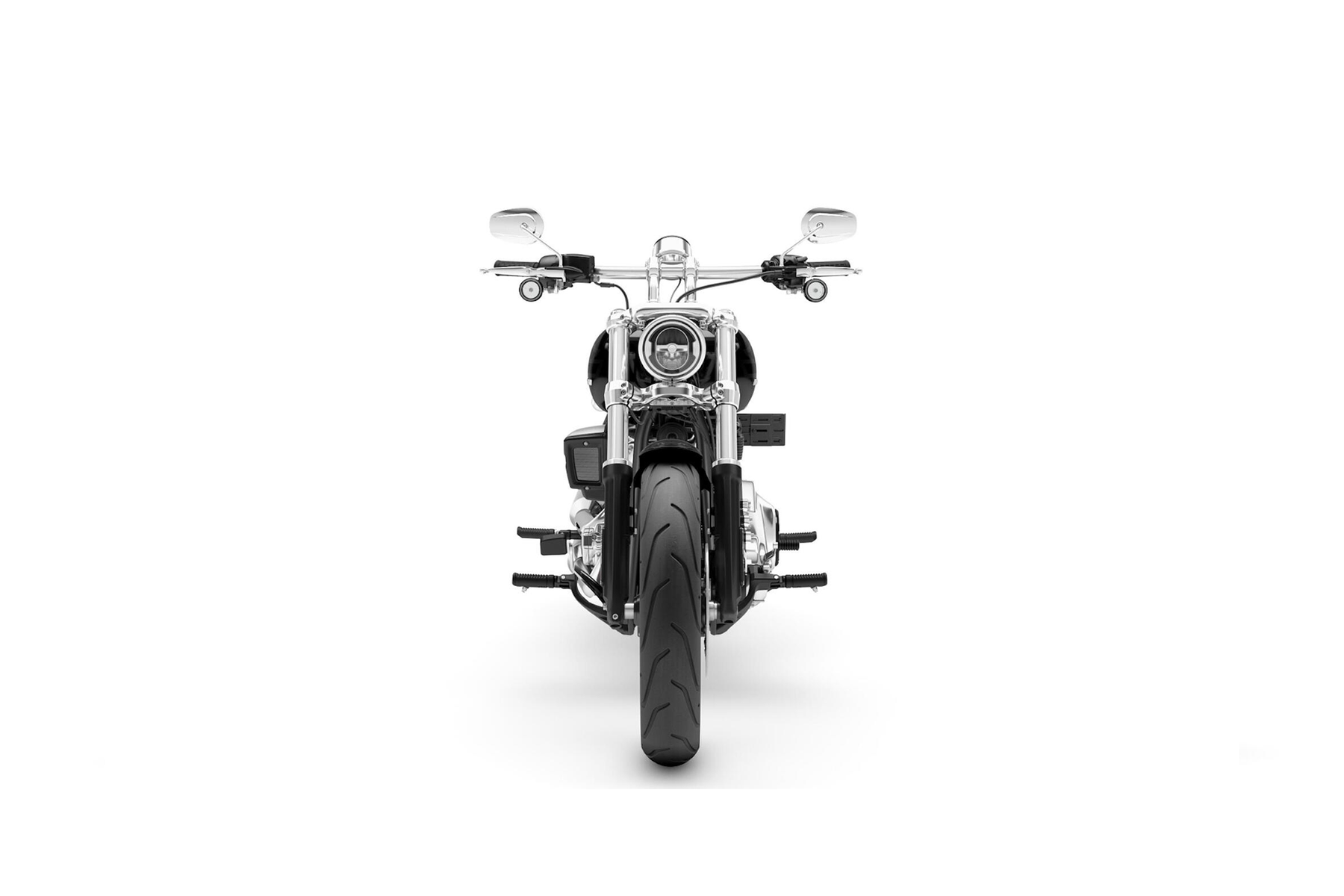

HARLEY-DAVIDSON 2025 BREAKOUT™ 117 FXBR
Thanks for your interest in Harley-Davidson. Please provide your details below and a member of our team will be in touch soon.
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.MILWAUKEE-EIGHT™ 117 CUSTOM POWERTRAIN
A new, more powerful engine with incredible torque for intense acceleration from stops, commanding passing power, and effortless cruising at highway speeds.
TWO- INTO-ONE EXHAUST
Enjoy classic cruiser lines and high-flowing performance with this two-into-two exhaust system.
REAR SUSPENSION
Hydraulic preload adjustment for monoshock is easily accessed underneath the seat for quick load adjustments to ensure optimal riding conditions.
LED LIGHTING
Compact lighting fits the old-school chopper vibe, while bright white LEDs meet modern standards.
DETAILED SPECS
DIMENSIONS
LENGTH | 2,375 mm |
SEAT HEIGHT, UNLADEN | 665 mm |
GROUND CLEARANCE | 115 mm |
RAKE | 34 |
TRAIL | 145 mm |
WHEELBASE | 1,695 mm |
TYRES, FRONT SPECIFICATION | 130/60B21,63H,BW |
TYRES, REAR SPECIFICATION | 240/40R18,79V,BW |
TYRE, TYPE | Michelin® Scorcher 11, front and rear |
FUEL CAPACITY | 18.9 l |
OIL CAPACITY (W/FILTER) | 4.7 l |
WEIGHT, AS SHIPPED | 297 kg |
WEIGHT, IN RUNNING ORDER | 309 kg |
ENGINE
ENGINE | Milwaukee-Eight® 117 Custom |
BORE | 103.5 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,923 cc |
COMPRESSION RATIO | 10.3:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-into-2 staggered; catalyst in muffler |
PERFORMANCE
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE | 166 Nm |
ENGINE TORQUE (RPM) | 3000 |
HORSEPOWER | 103 HP / 77 kW @ 5020 rpm |
LEAN ANGLE, RIGHT (DEG.) | 26.8 |
LEAN ANGLE, LEFT (DEG.) | 26.8 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 5.6 l/100 km |
DRIVE TRAIN
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.311 |
GEAR RATIOS (OVERALL) 2ND | 6.454 |
GEAR RATIOS (OVERALL) 3RD | 4.793 |
GEAR RATIOS (OVERALL) 4TH | 3.882 |
GEAR RATIOS (OVERALL) 5TH | 3.307 |
GEAR RATIOS (OVERALL) 6TH | 2.79 |
CHASSIS
FRONT FORK |
Dual-bending valve 49 mm telescopic with aluminium fork triple clamps; dual rate spring |
REAR SHOCKS |
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment |
WHEELS, FRONT TYPE | Gloss black, 26-spoke cast aluminium |
WHEELS, REAR TYPE | Gloss black, 26-spoke cast aluminium |
BRAKES, ROTOR TYPE | Front and rear black, Split 7-spoke floating rotors |
BRAKES, CALIPER TYPE | 4-piston fixed front and 2-piston floating rear |
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS |
All LED, low beam, high beam and signature position lamp |
GAUGES |
102 mm (4-inch) analogue speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer |
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS) |
Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
