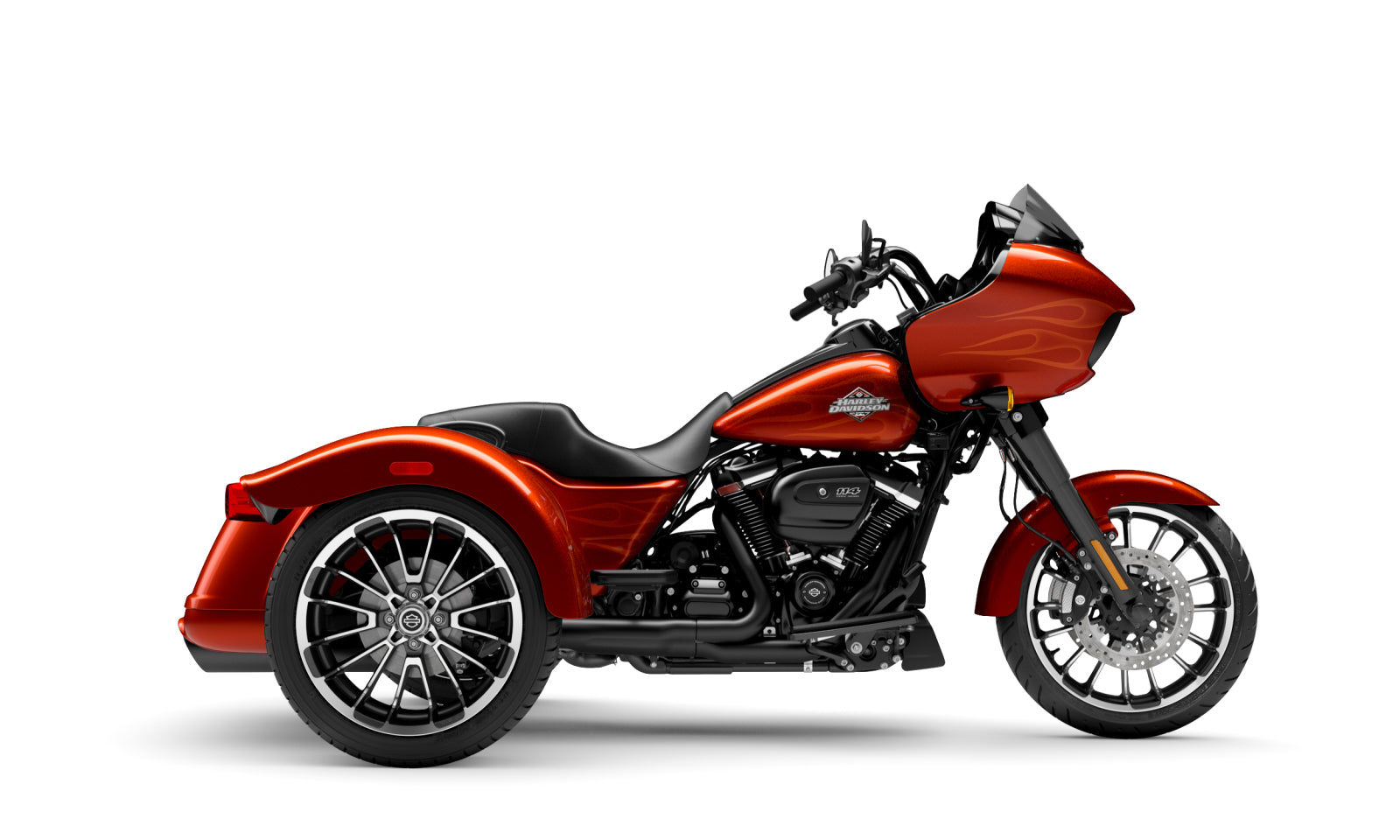

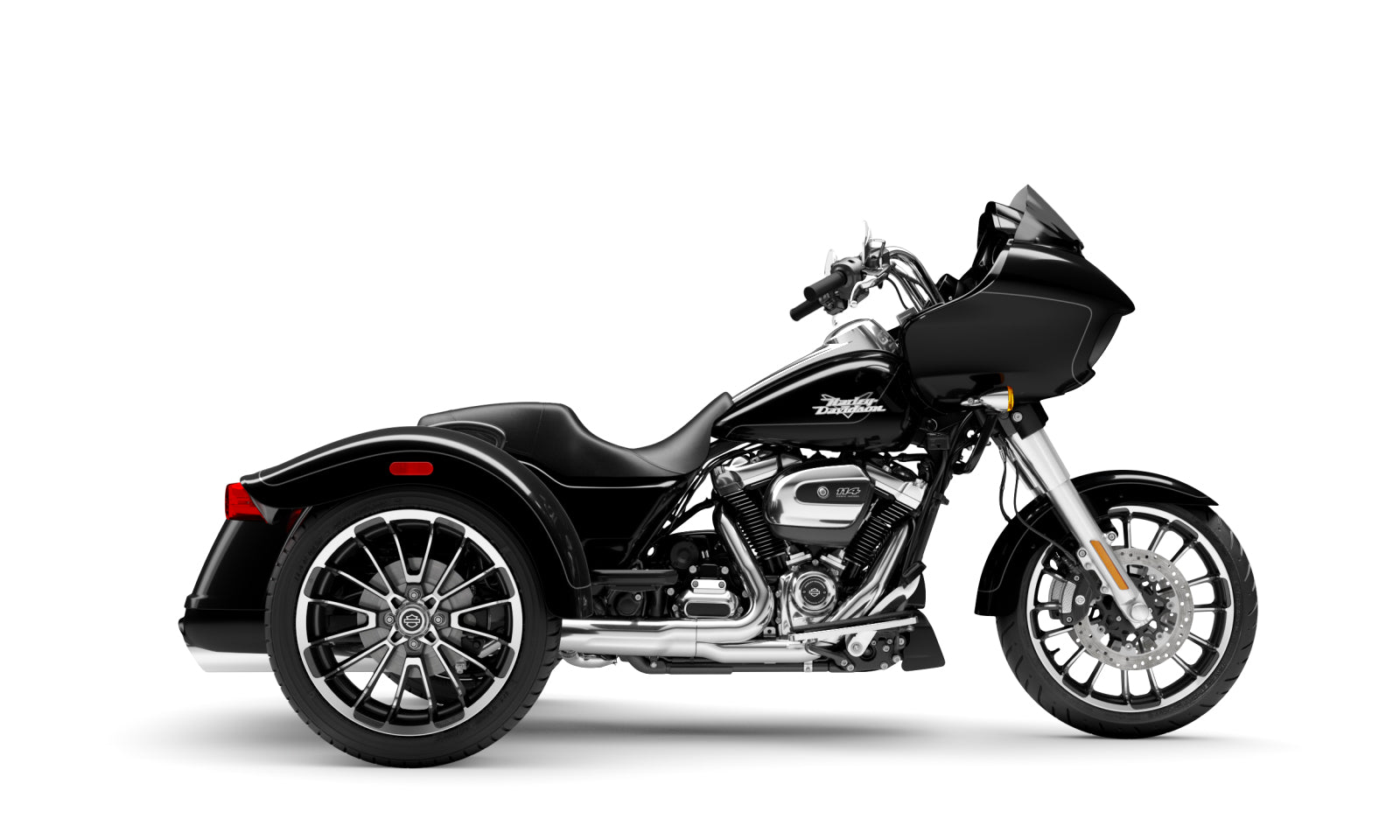

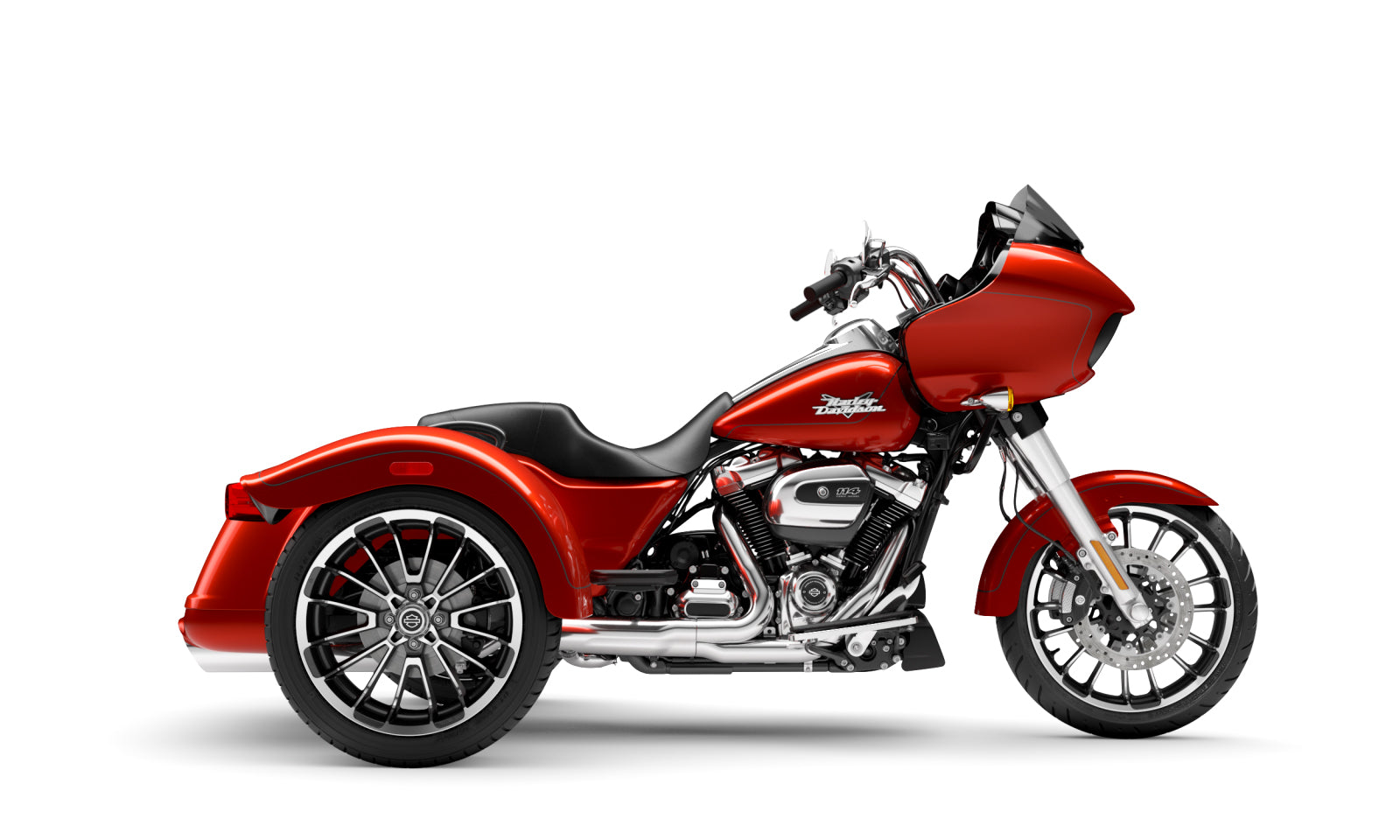

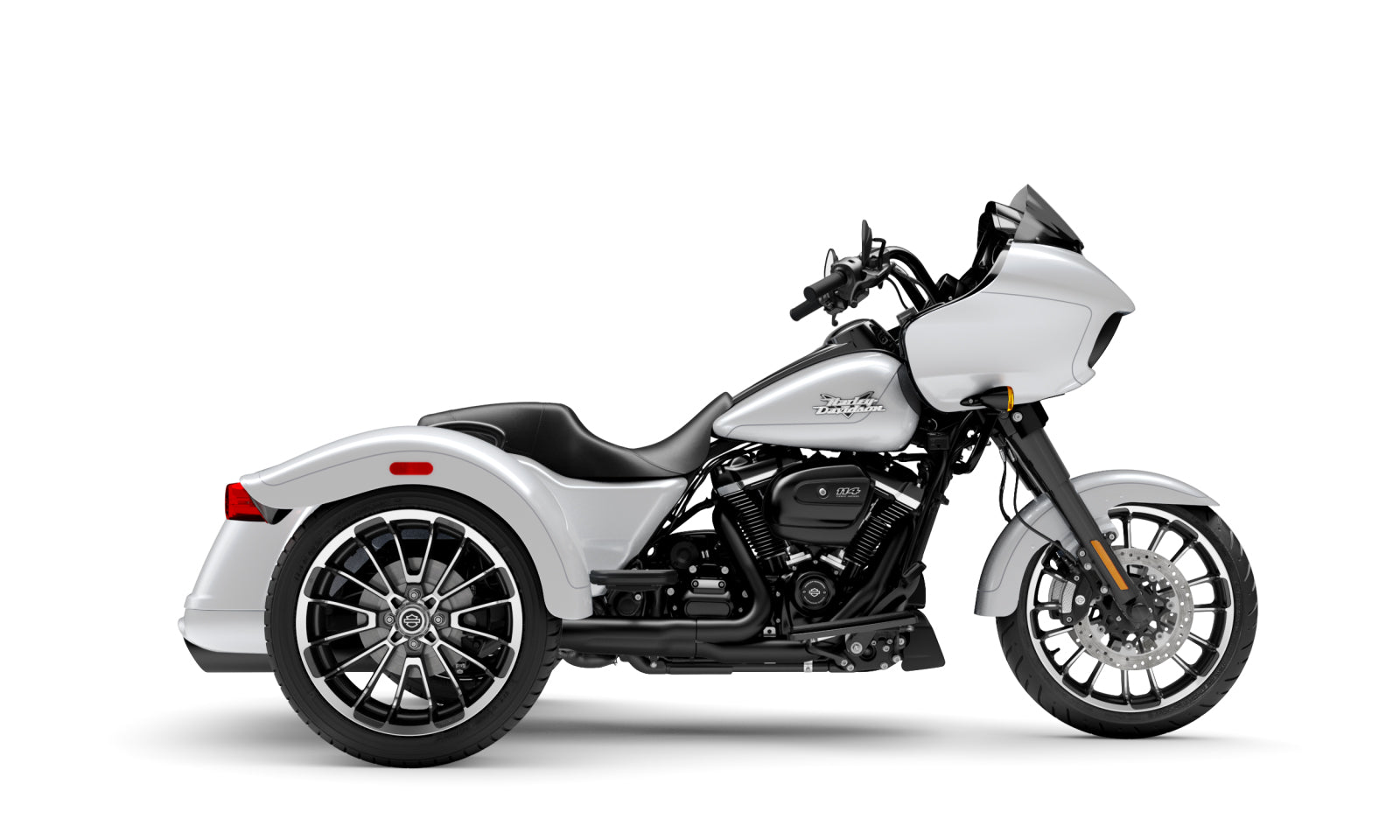

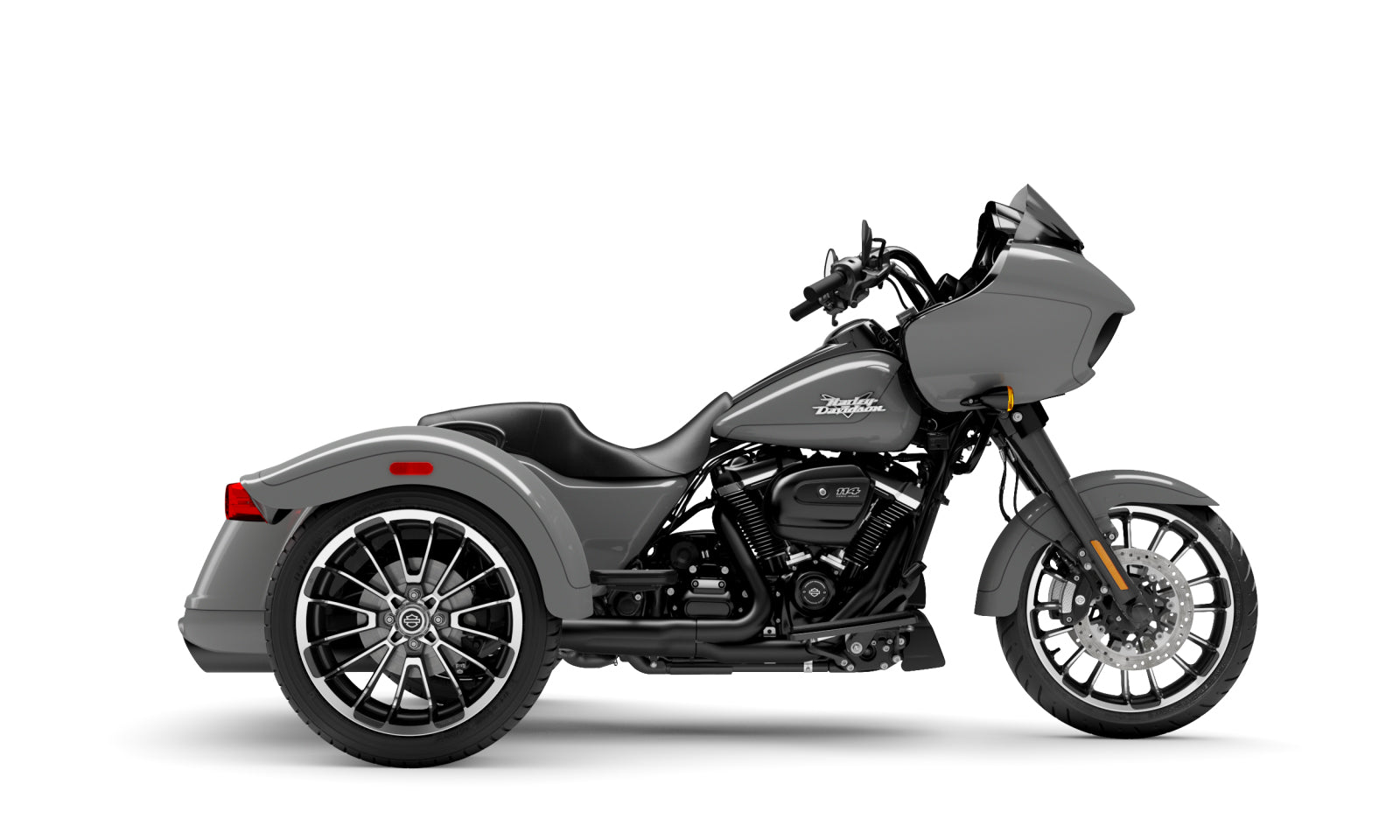

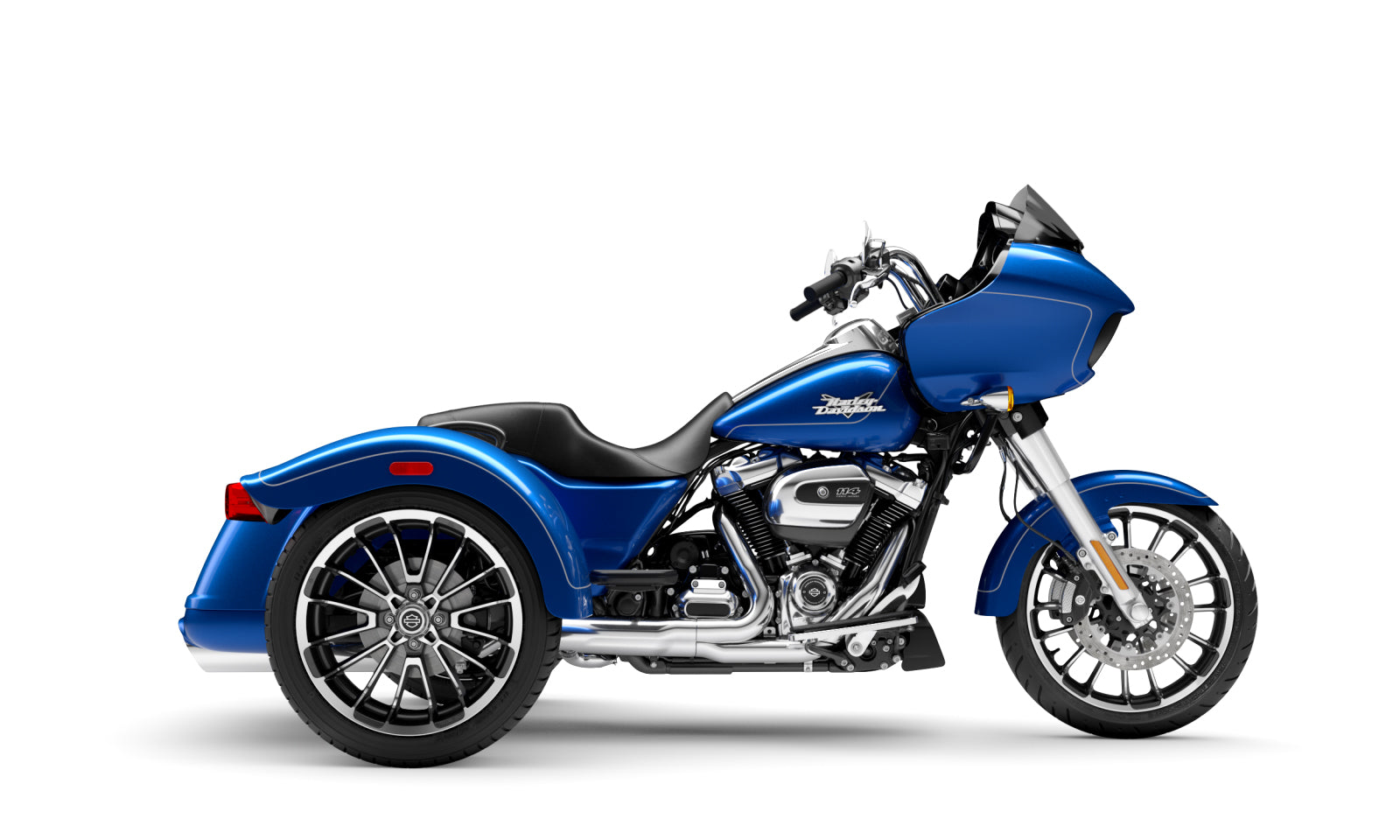

HARLEY-DAVIDSON 2025 Road Glide™ 3
Thanks for your interest in Harley-Davidson. Please provide your details below and a member of our team will be in touch soon.
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.Design
The iconic Road Glide, known for its classic Sharknose bagger design, blends tradition with modern comfort and connectivity, featuring advanced engineering and a suite of intuitive technologies.
Fairing
Featuring the iconic Sharknose fairing, Dual Daymaker® LED headlamps, full infotainment system with internal speakers, and triple splitstream vents for enhanced comfort at highway speeds.
Wheels
With 483mm front wheel and 457mm rear wheels, the Road Glide 3 has a powerful and commanding stance with ample ground clearance, and the comfort of a low, 673 mm seat height.
Comfort Seat
Long-mile comfort for rider and passenger alike, with soft-touch grab handles for an added level of passenger security.
Rear Fenders
Flared bobtail rear fenders over 457mm wheels add even more attitude to the Road Glide 3’s already powerful presence
Storage
The weatherproof and locking trunk has two cubic feet of storage and a top-mounted door for easy loading and unloading.
Premium Paint
A wide variety of premium paint options let you match your style and personality, including an all-new Factory Custom Whiskey Firestorm paint scheme, with brilliant and bright contrasting flames.
PERFORMANCE
Increased displacement means more power and torque, while cast wheels, improved aerodynamics, and reduced weight enhance handling. The Road Glide earned its reputation as the standard in bagger performance, and it’s only getting better.
Milwaukee-Eight® 114 Engine
The iconic thump and incredible torque of Milwaukee-Eight® 114 V-twin power, tuned for trike performance and delivered to two 457mm rear wheels for impressive acceleration power.
Rear Suspension
Quickly tune rear suspension for added payload with single-knob preload adjustment to ensure comfortable and composed performance.
Slash-Down Dual Mufflers
Dual mufflers with slash-down tips between the rear wheels deliver a classic hot rod style.
INNOVATION
Trike-specific tech that maximizes performance and long-mile touring amenities that keep you comfortable and connected on the road.
165 mm Touchscreen Display
Easy-to-use touchscreen infotainment system helps you quickly choose music, tune Rider Safety Enhancements, and more.
Audio
Bold, clear audio whether you’re cruising around town or blasting down the highway, easily managed through intuitive hand controls and the touchscreen display.
Technical Specifications
|
DIMENSIONS |
|
|
Length |
2,615 mm
|
|
Width |
1,405 mm
|
|
Seat Height, Unladen |
700 mm
|
|
Ground Clearance |
125 mm
|
|
Rake |
26
|
|
Trail |
101 mm
|
|
Wheelbase |
1,670 mm
|
|
Tyres, Type |
Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear
|
|
Tyres, Front Specification |
MT 130/60B19 M/C 61H
|
|
Tyres, Rear Specification |
P215/45R18 83T
|
|
Fuel Capacity |
22.7 l
|
|
Oil Capacity (w/filter) |
4.7 l
|
|
Weight, In Running Order |
528 kg
|
|
Luggage Capacity -Volume |
0.06 m3
|
|
ENGINE
|
|
|
Engine |
Milwaukee-Eight® 114
|
|
Bore |
102 mm
|
|
Stroke |
114.3 mm
|
|
Displacement |
1,868 cc
|
|
Compression Ratio |
10.5:1
|
|
Fuel System |
Electronic Sequential Port Fuel Injection (ESPFI)
|
|
Exhaust |
Shorty slash down-style chrome finish mufflers
|
|
PERFORMANCE
|
|
|
Engine Torque Testing Method |
EC 134/2014
|
|
Engine Torque |
159 Nm
|
|
Engine Torque (rpm) |
3000
|
|
Horsepower |
87 HP / 65 kW @ 5020 rpm
|
|
Fuel Economy Testing Method |
EU 134/2014
|
|
Fuel Economy |
6.5 l/100 km
|
|
DRIVE TRAIN
|
|
|
Primary Drive |
Chain, 34/46 ratio
|
|
Gear Ratios (overall) 1st |
10.534
|
|
Gear Ratios (overall) 2nd |
7.302
|
|
Gear Ratios (overall) 3rd |
5.423
|
|
Gear Ratios (overall) 4th |
4.392
|
|
Gear Ratios (overall) 5th |
3.741
|
|
Gear Ratios (overall) 6th |
3.157
|
|
CHASSIS
|
|
|
Front Fork |
49mm dual bending valve
|
|
Rear Shocks |
Hand-adjustable emulsion rear suspension
|
|
Wheels, Front Type |
Cast aluminum
|
|
Wheels, Rear Type |
Cast aluminum
|
|
Brakes, Caliper Type |
Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
|
|
Brakes, Rotor Type |
Dual floating rotors (front), fixed rotor (rear)
|
|
ELECTRIC
|
|
|
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights |
Headlamp: Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam. Tail/Stop/Front Signal Lights: Incandescent
|
|
Gauges |
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
|
|
INFOTAINMENT |
|
|
Infotainment system |
Boom!™ Box GTS
|
|
Screen Size |
165 mm
|
|
Type |
Full Color TFT
|
|
Watts Per Channel |
25
|
|
Speakers |
4
|
|
Speaker Size |
5.25 inch (133 mm)
|
|
Headset Specifications (if equipped) |
16 - 64 ohms
|
|
AM |
Standard
|
|
FM |
Standard
|
|
Weather Band (WB) |
Standard (USA & Canada only)
|
|
SD Card, Flash Drive and MP3 - via USB Connection |
Supported
|
|
Languages |
English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
|
|
Hands-free Mobile Phone - via Bluetooth |
Standard
|
|
Voice Recognition Languages: Phone functions only |
Phone dependent
|
|
Voice Recognition Languages: Tuner/Media/Navigation |
Phone dependent
|
|
Vehicle Information Screen (Air temperature, oil pressure and EITMS) |
Standard
|
|
Text-to-Speech (TTS) Languages |
Phone dependent
|
|
USB |
USB/MTP/iPod/iPhone
|
|
Bluetooth |
Phone/Media Supported
|
|
RIDER SAFETY ENHANCEMENTS
|
|
|
Anti-lock Brake System (ABS) |
Included: ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
|
|
Electronic Linked Braking (ELB) |
Included: This feature electronically applies braking effort to both wheels when the rider applies the front brake lever and, on some models when the rider applies the rear brake pedal. ELB can help many riders achieve better braking performance. It boosts braking power when needed while minimizing or stopping the linking for lighter braking or at lower speeds.
|
|
Traction Control System (TCS) |
Included: The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
|
|
Drag-torque Slip Control System (DSCS) |
Included: DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
|
|
Tire Pressure Monitoring System (TPMS) |
Included: TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
|
|
Cornering Enhanced Anti-lock Brake System (C-ABS) |
Included: C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
|
|
Cornering Enhanced Electronic Linked Braking (C-ELB) |
Included: C-ELB takes into account the motorcycle lean angle or Trike lateral acceleration. C-ELB will alter the proportioning of brake pressure between the front and rear brakes when braking while cornering in an attempt to improve the ability of the bike to maintain the rider's intended path.
|
|
Cornering Enhanced Traction Control System (C-TCS) |
Included: C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
|
