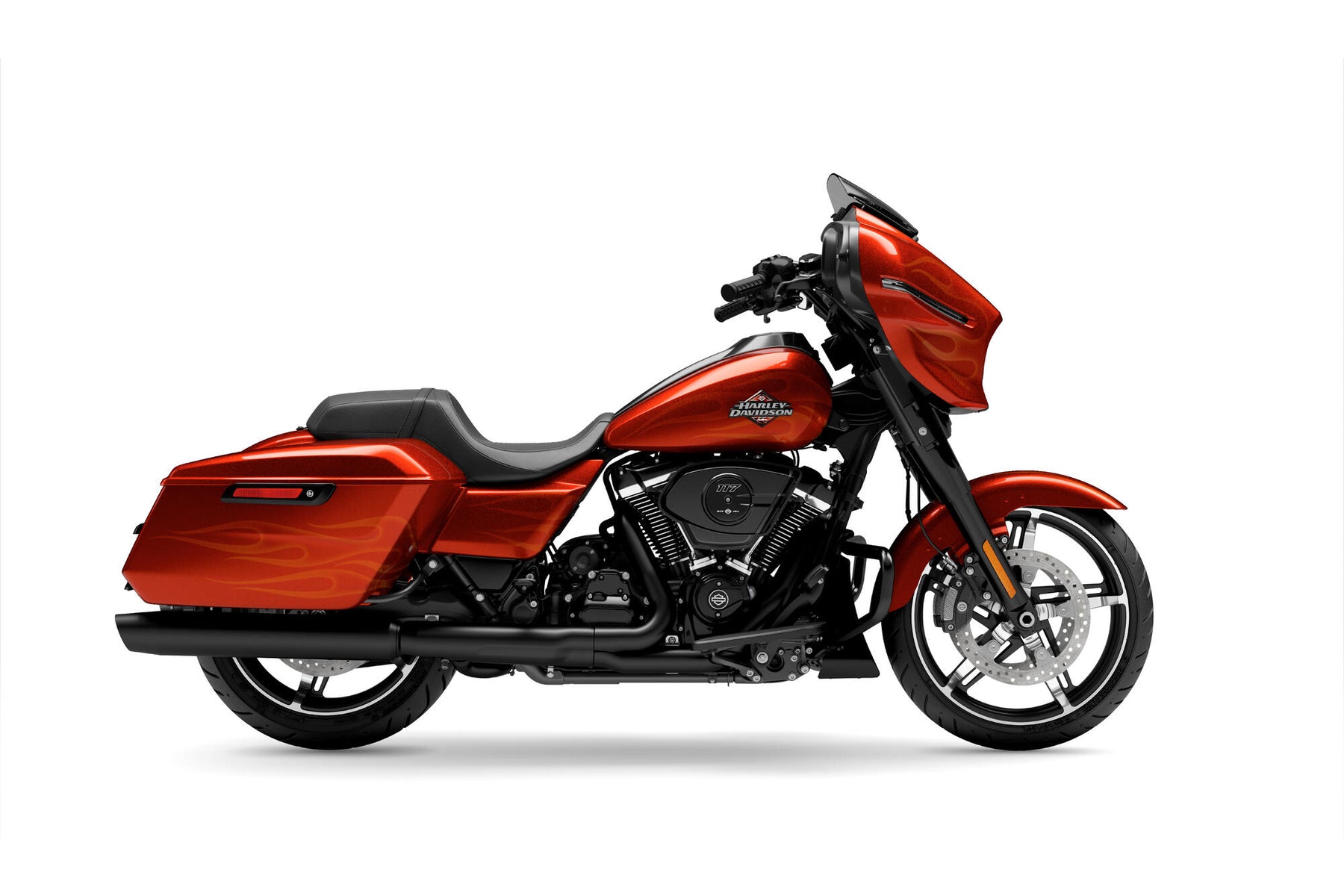

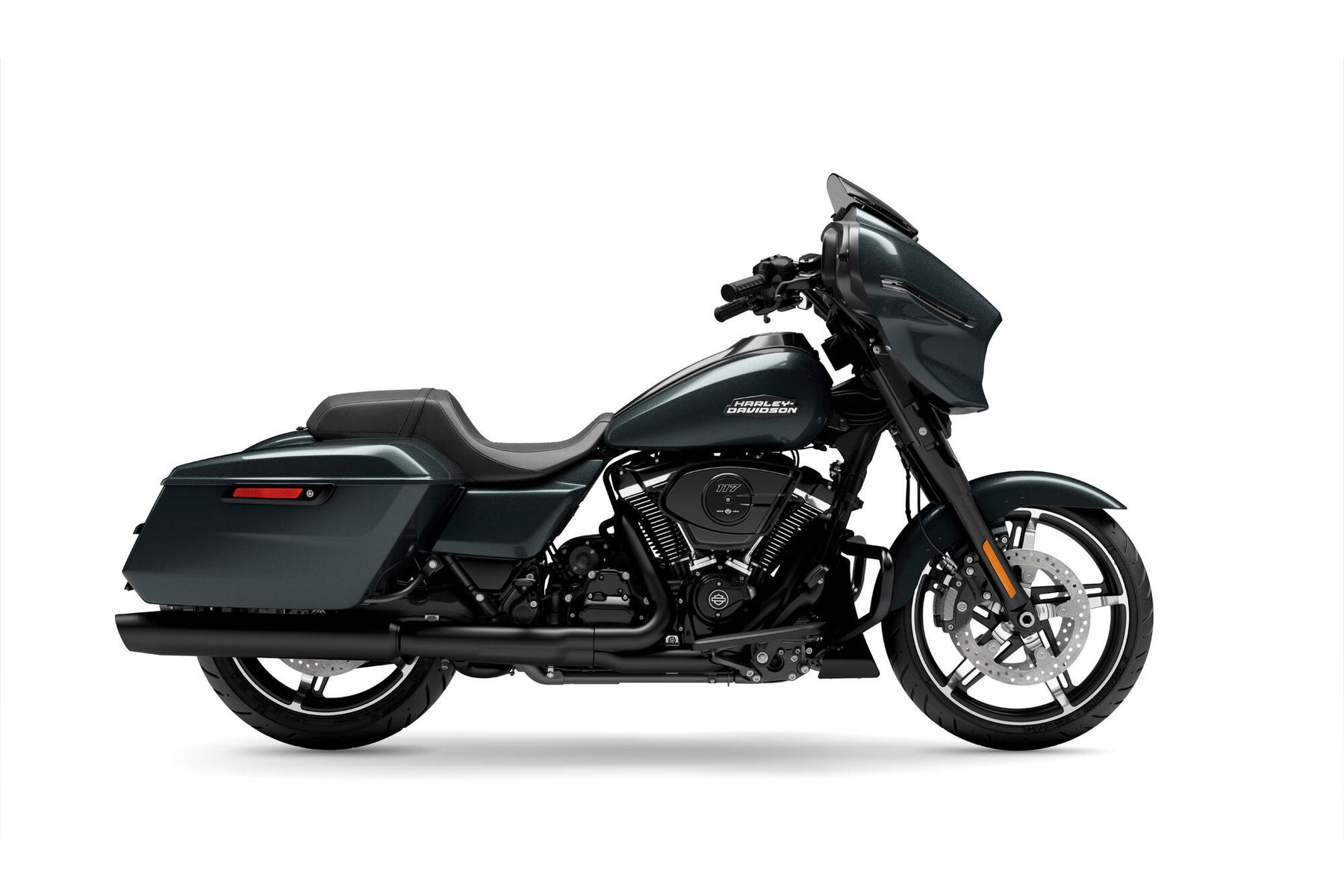

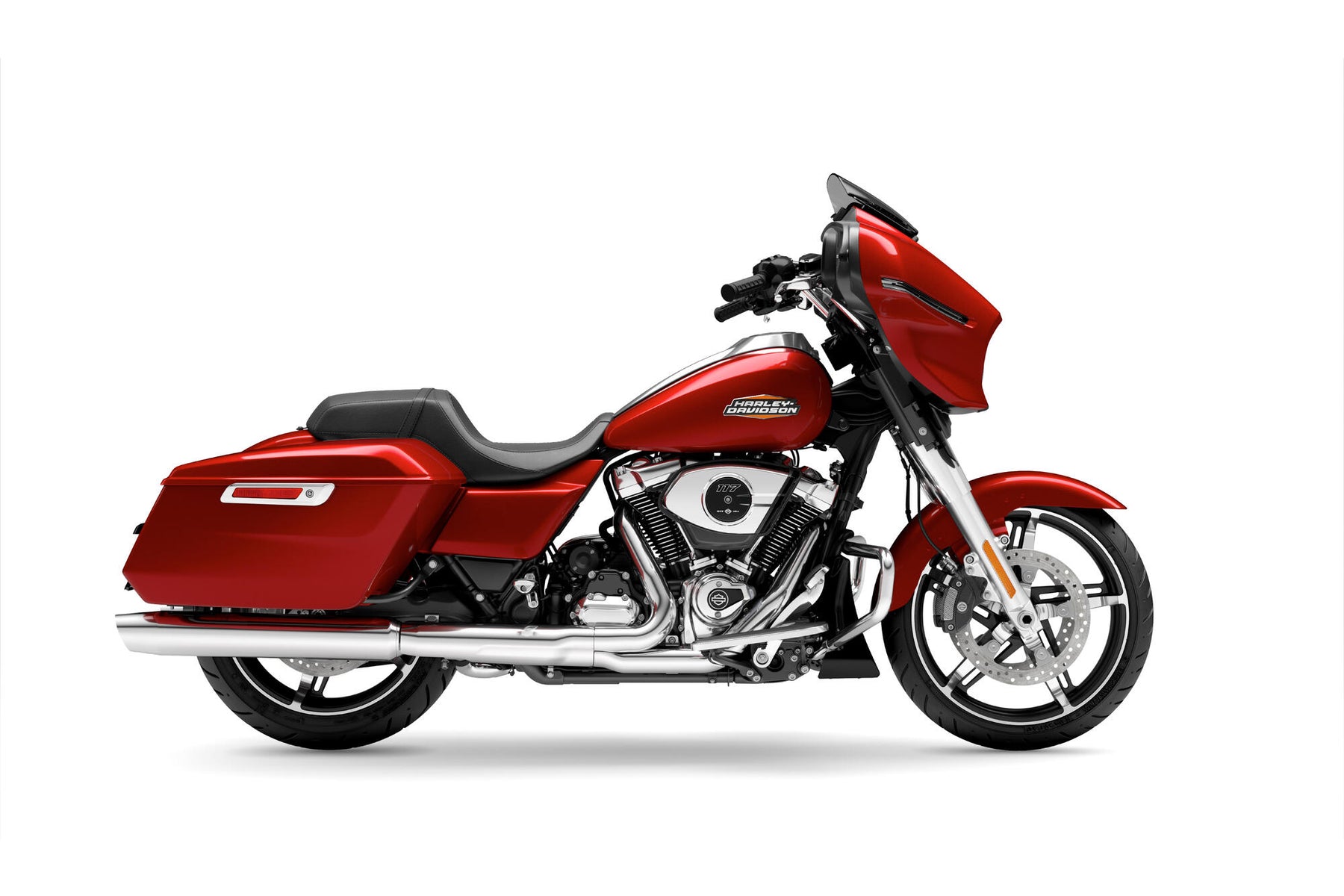

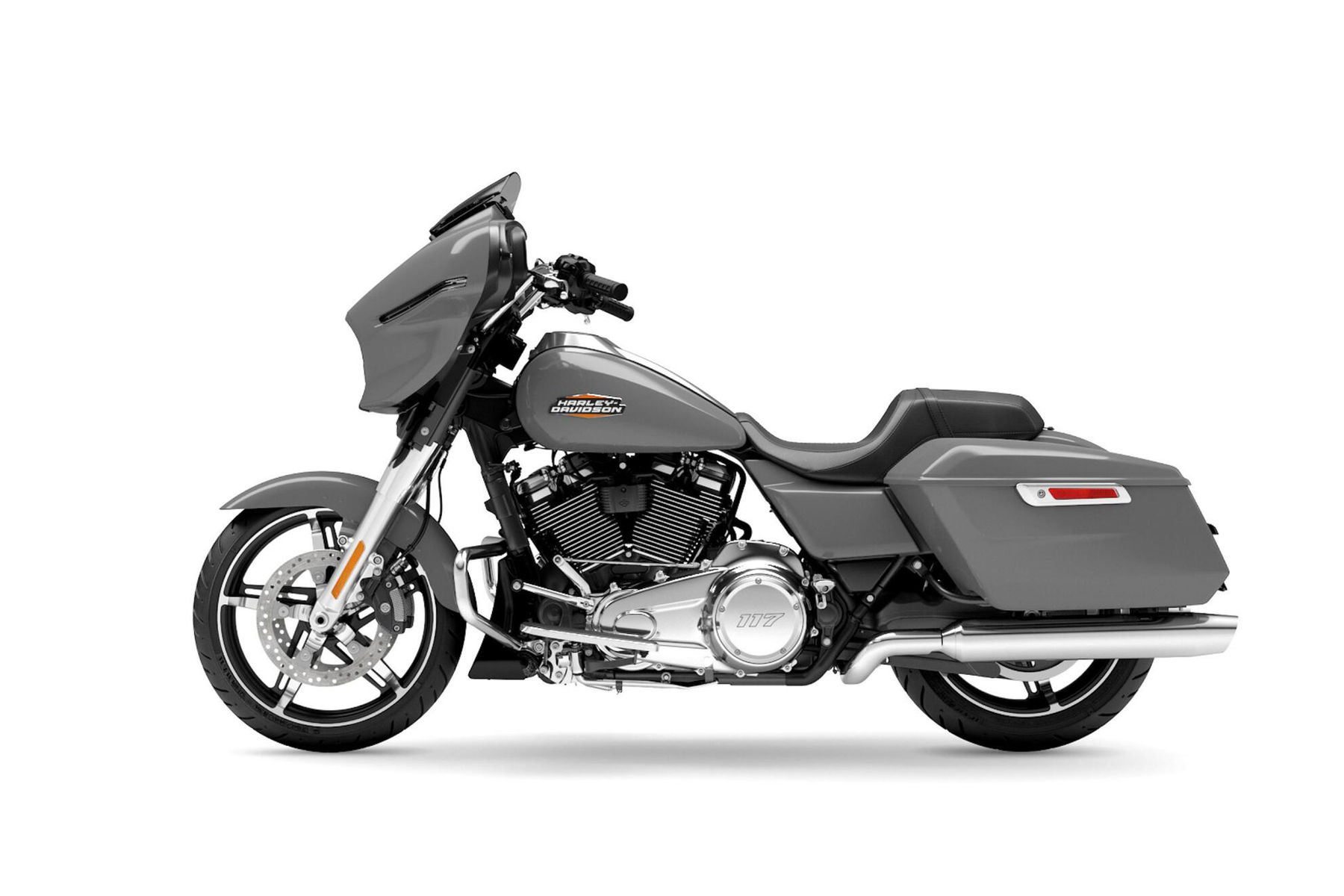

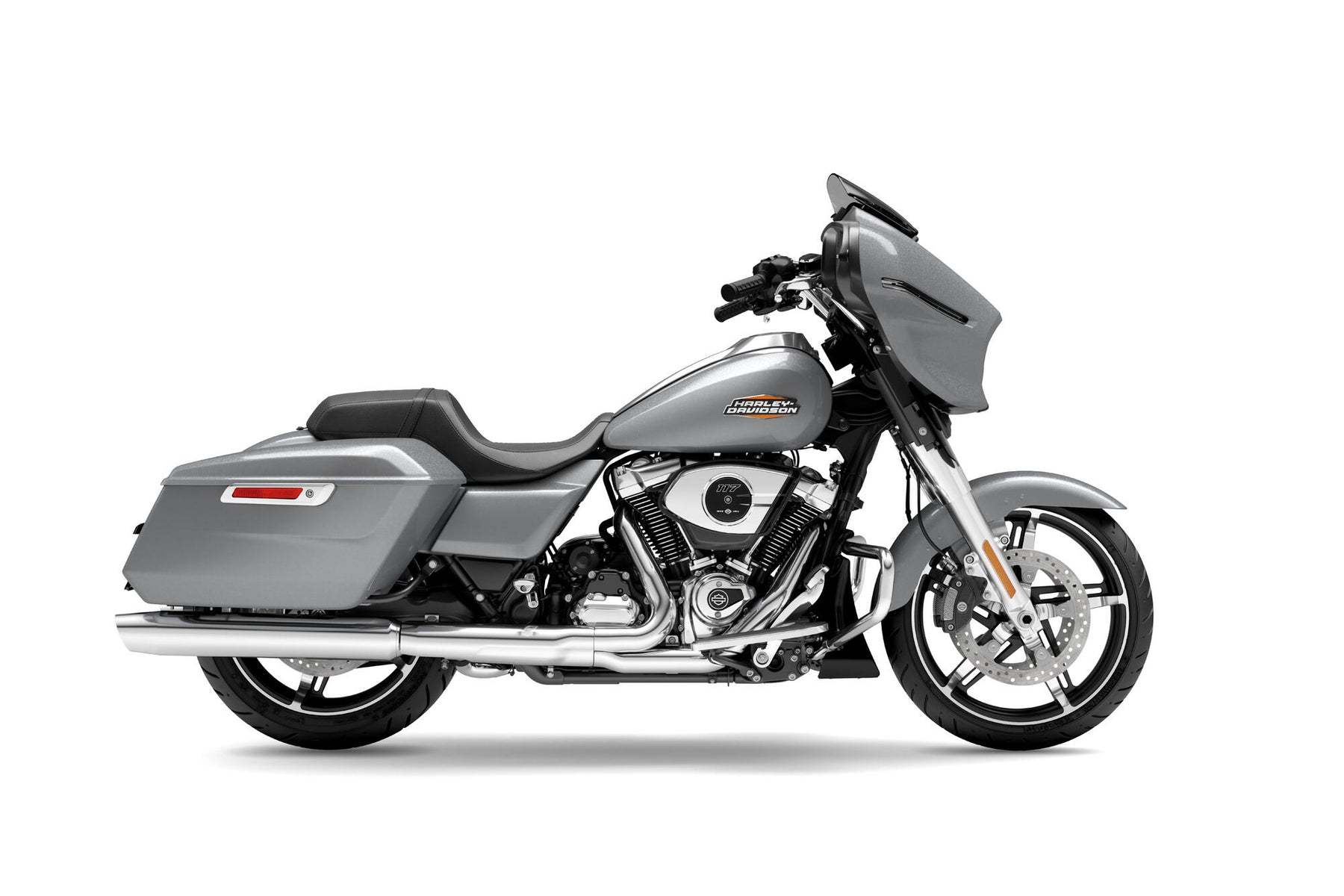

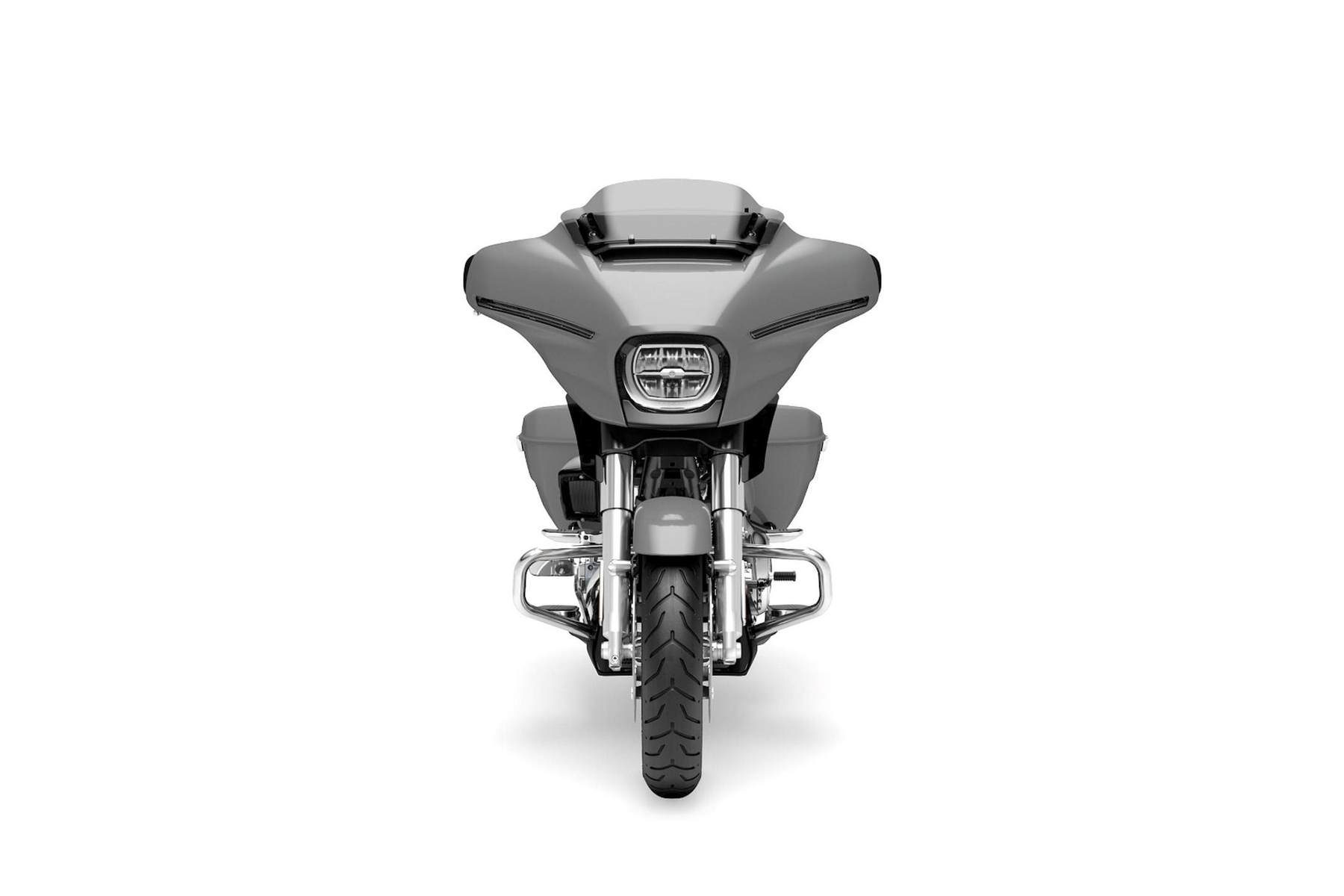

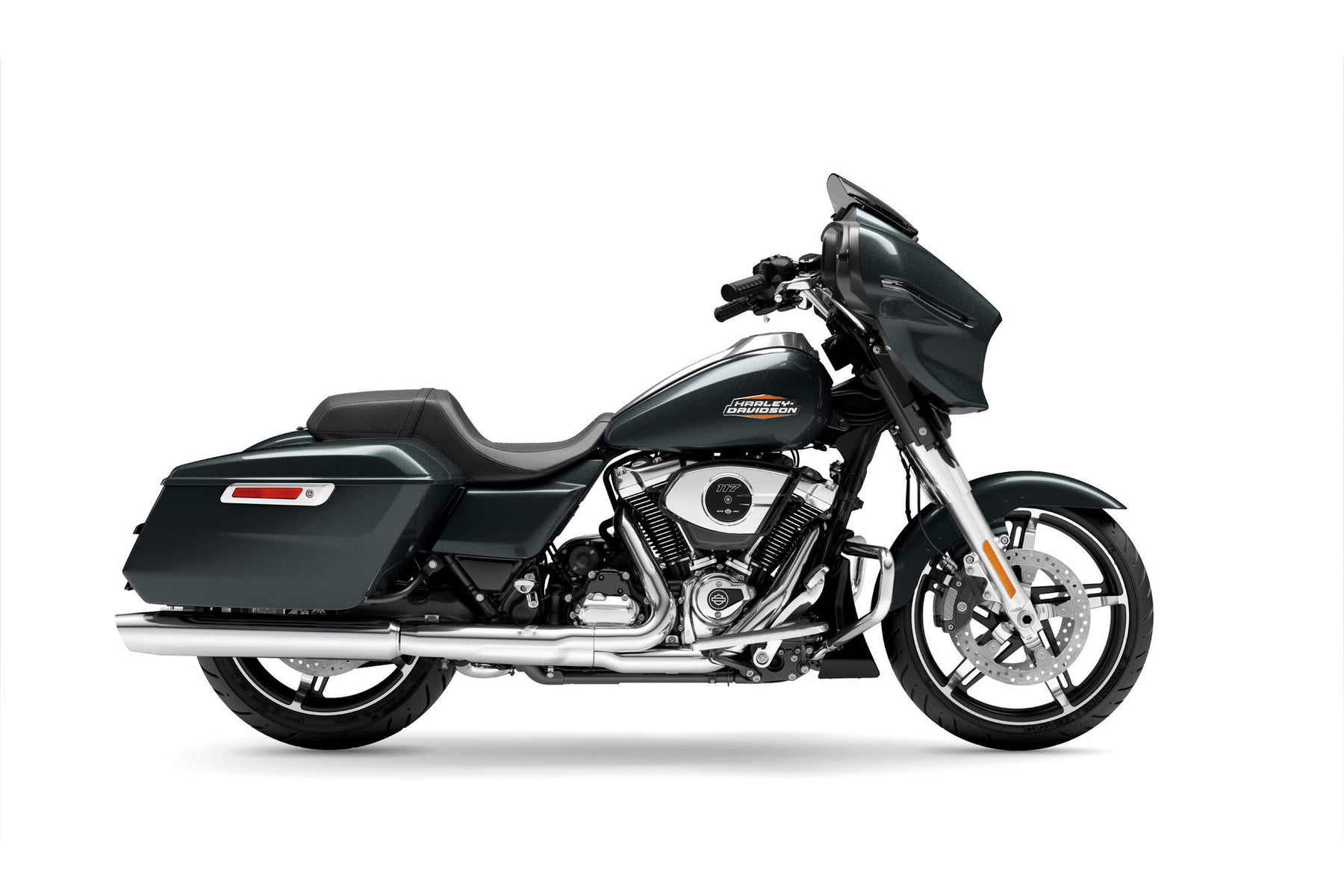

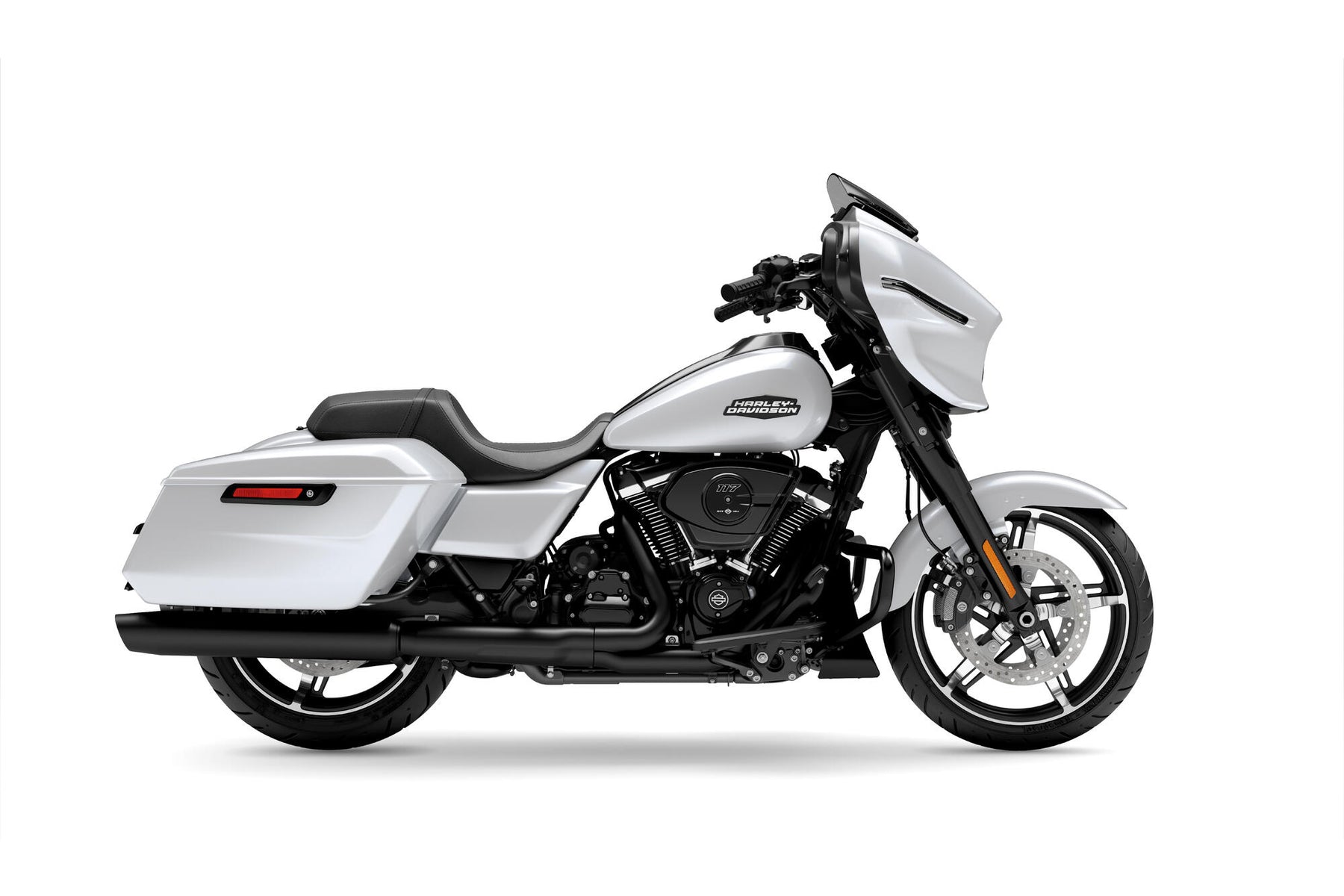

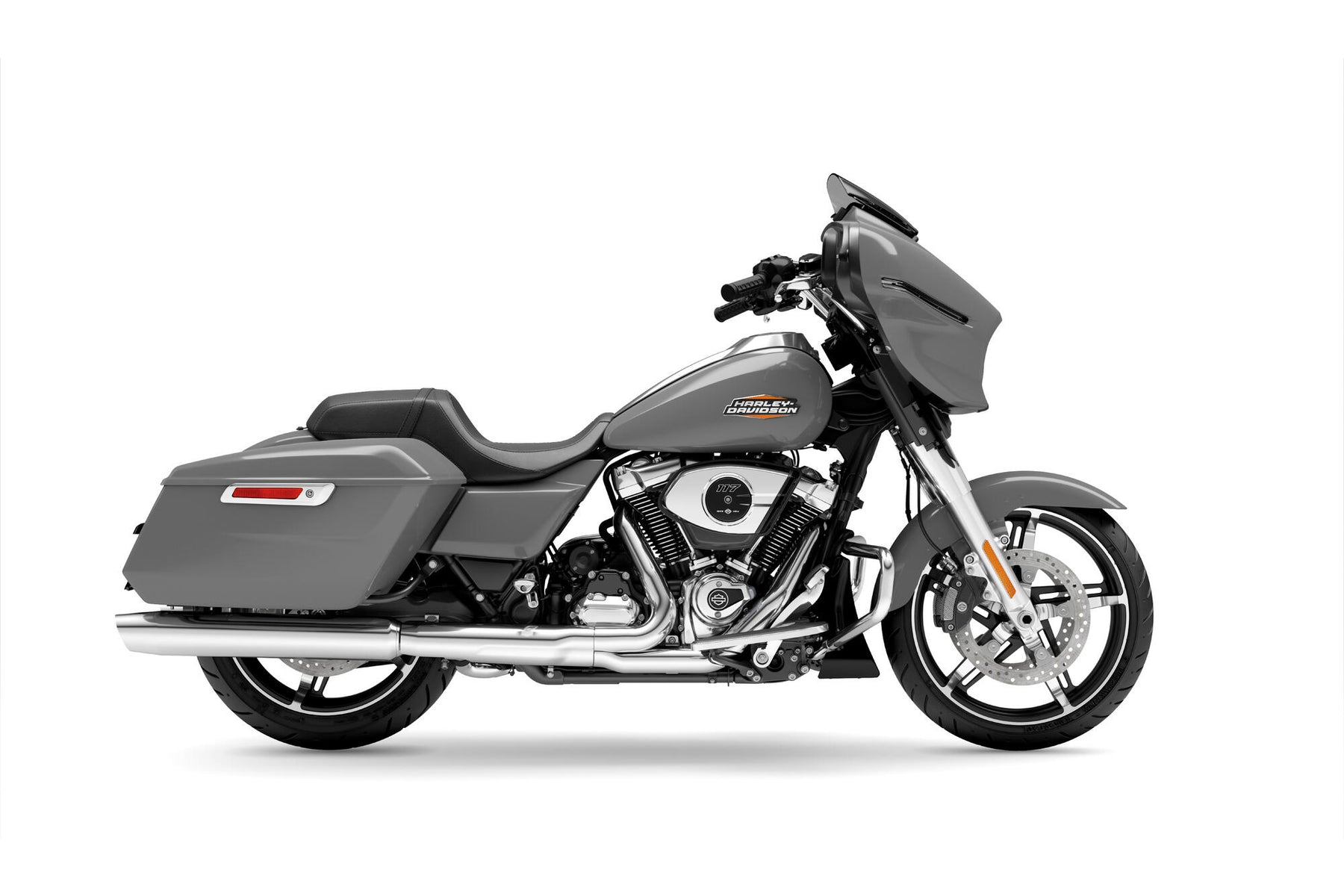

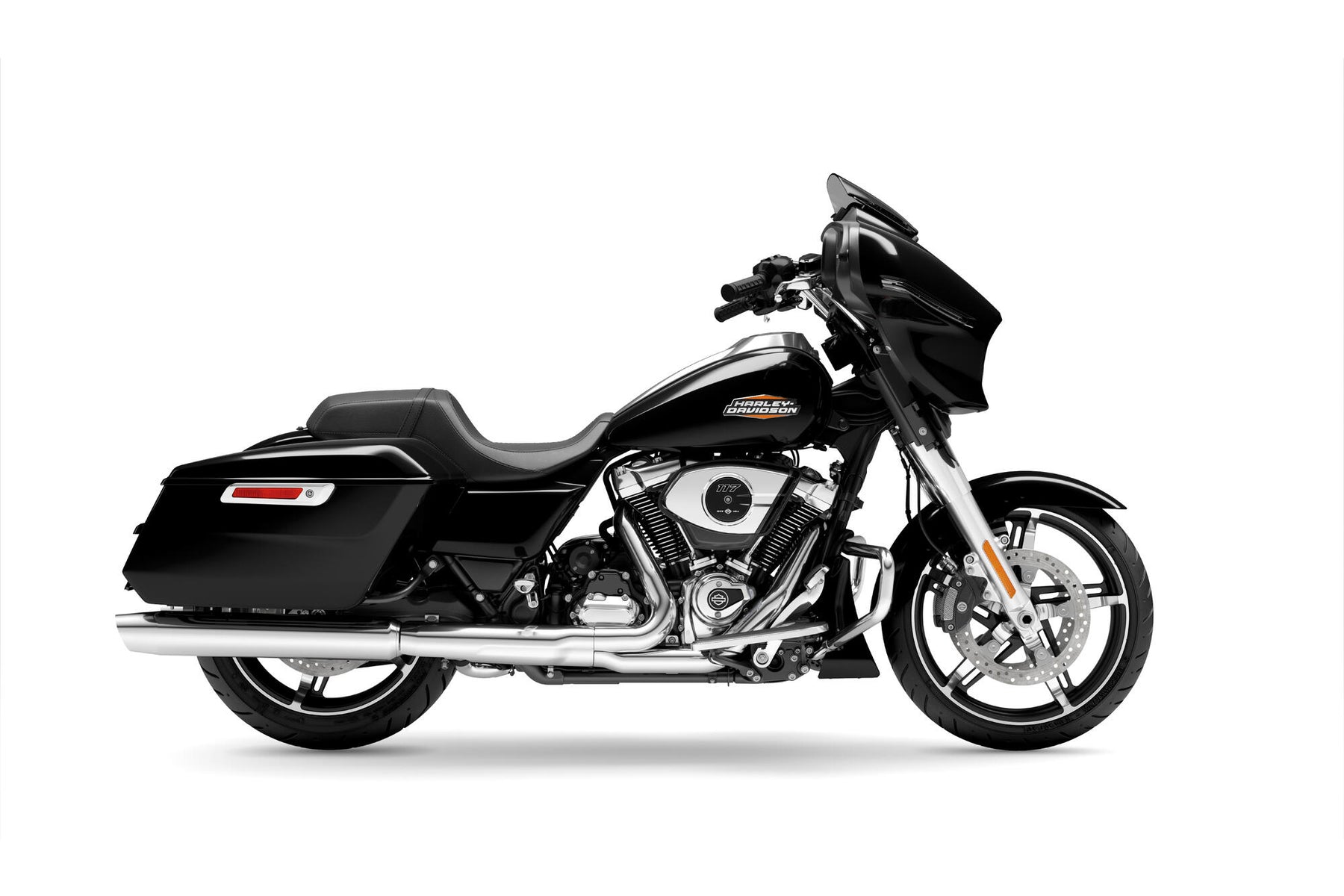

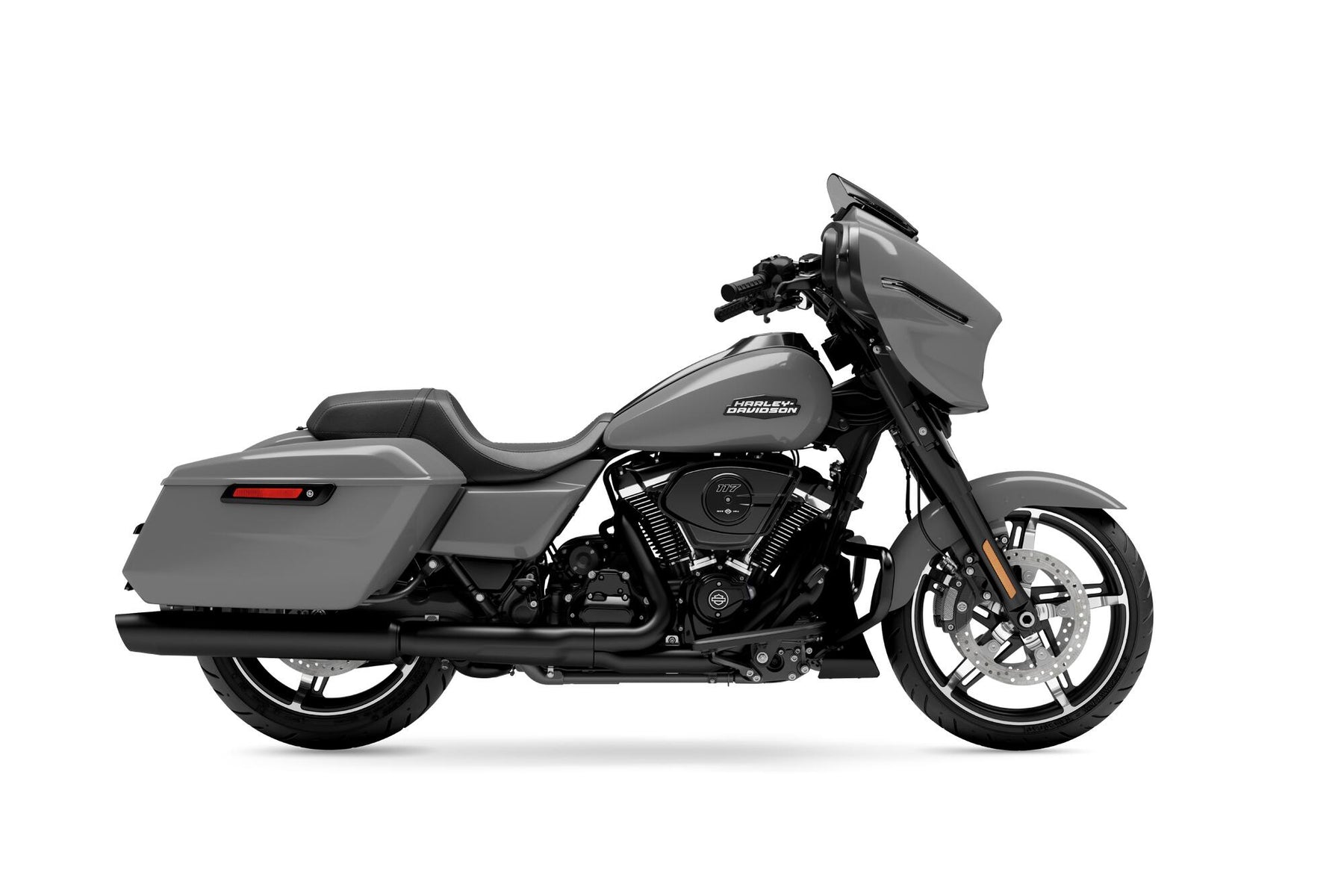

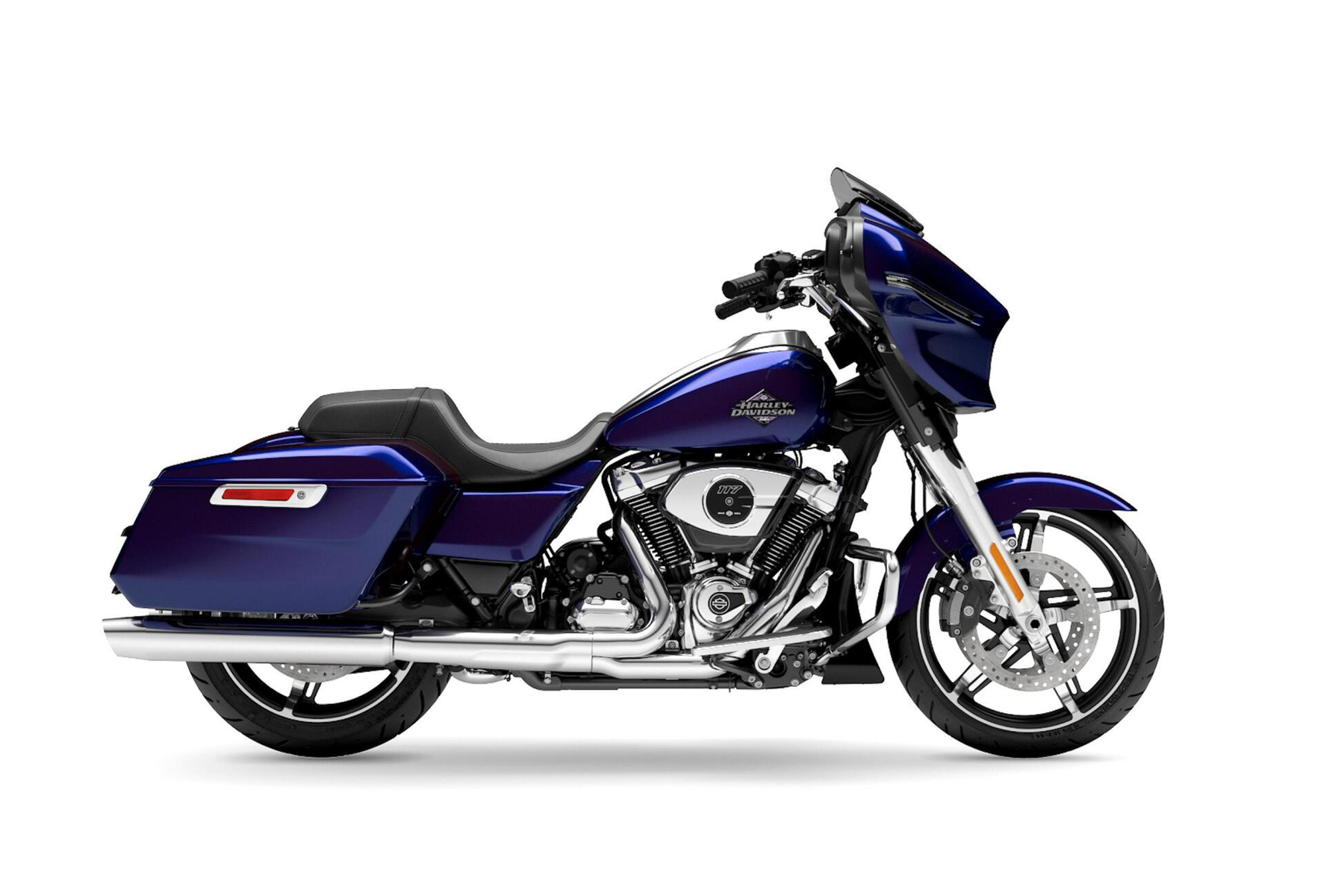

HARLEY-DAVIDSON 2025 STREET GLIDE™ 117 FLHX
Thanks for your interest in Harley-Davidson. Please provide your details below and a member of our team will be in touch soon.
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.MILWAUKEE-EIGHT™ 117 V-TWIN ENGINE
Big V-twin power without the heat. Equipped with liquid-cooled heads and a discrete centre-mounted radiator, it ensures efficient cooling even on the hottest rides.
REAR SUSPENSION
Easily adjust preload for passenger or luggage, maximizing comfort and performance in every setting.
RIDE MODES
Three pre-programmed ride modes allow you to change the Street Glide’s personality with the push of a button. Change from Road to Sport to Rain, or use the customizable mode to dial in your exact tuning preference.
AUDIO
The deep lows, clean mids, and crips highs of your favourite songs play through fairing-mounted speakers, powered by a 200-watt, four channel amplifier rated at 50 watts per channel
DETAILED SPECS
DIMENSIONS
LENGTH | 2,410 mm |
SEAT HEIGHT, UNLADEN | 715 mm |
GROUND CLEARANCE | 140 mm |
RAKE | 26 |
TRAIL | 170 mm |
WHEELBASE | 1,625 mm |
TYRES, FRONT SPECIFICATION | 130/60B19 61H |
TYRES, REAR SPECIFICATION | 180/55B18 80H |
TYRE, TYPE | Dunlop Harley-Davidson Series, bias blackwall front and rear |
FUEL CAPACITY | 22.7 l |
OIL CAPACITY (W/FILTER) | 4.7 l |
WEIGHT, AS SHIPPED | 351 kg |
WEIGHT, IN RUNNING ORDER | 368 kg |
LUGGAGE CAPACITY -VOLUME | 0.069 m3 |
ENGINE
ENGINE | Milwaukee-Eight 117 |
BORE | 103.5 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,923 cc |
COMPRESSION RATIO | 10.3:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-1-2 dual exhaust with tapered mufflers |
PERFORMANCE
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE | 175 Nm |
ENGINE TORQUE (RPM) | 3,500 |
LEAN ANGLE, RIGHT (DEG.) | 32 |
LEAN ANGLE, LEFT (DEG.) | 32 |
DRIVE TRAIN
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.593 |
GEAR RATIOS (OVERALL) 2ND | 6.65 |
GEAR RATIOS (OVERALL) 3RD | 4.938 |
GEAR RATIOS (OVERALL) 4TH | 4 |
GEAR RATIOS (OVERALL) 5TH | 3.407 |
GEAR RATIOS (OVERALL) 6TH | 2.875 |
CHASSIS
FRONT FORK | 49mm Dual Bending Valve |
REAR SHOCKS |
3 in. (76.2 mm) Dual Outboard Emulsion with Preload Adjustability |
WHEELS, FRONT TYPE | Cast Aluminium |
WHEELS, REAR TYPE | Cast Aluminium |
BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |
BRAKES, CALIPER TYPE | 32 mm, 4-piston fixed dual axially mounted front, and single axially mounted rear |
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | LED |
GAUGES | Digital gauges integrated within the display |
