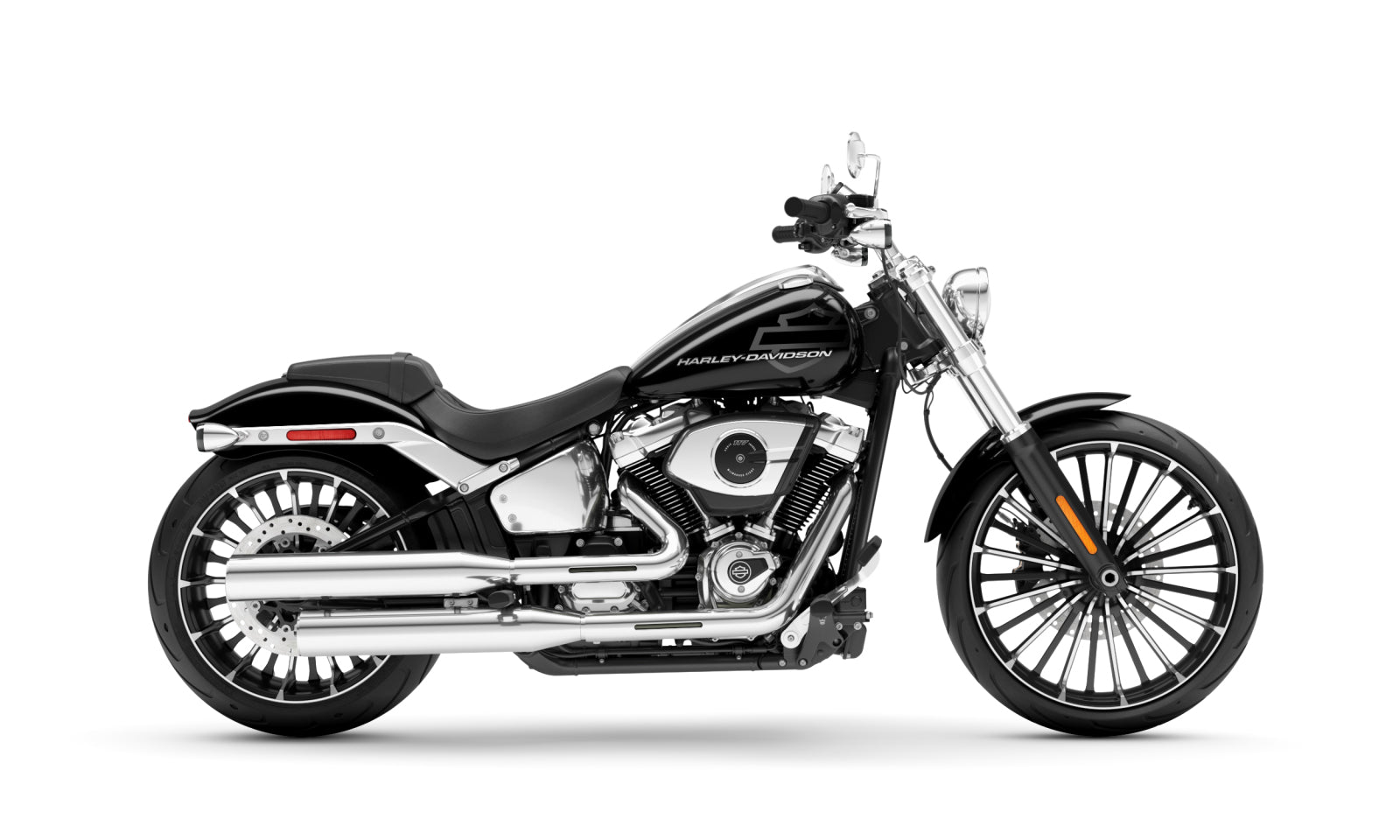

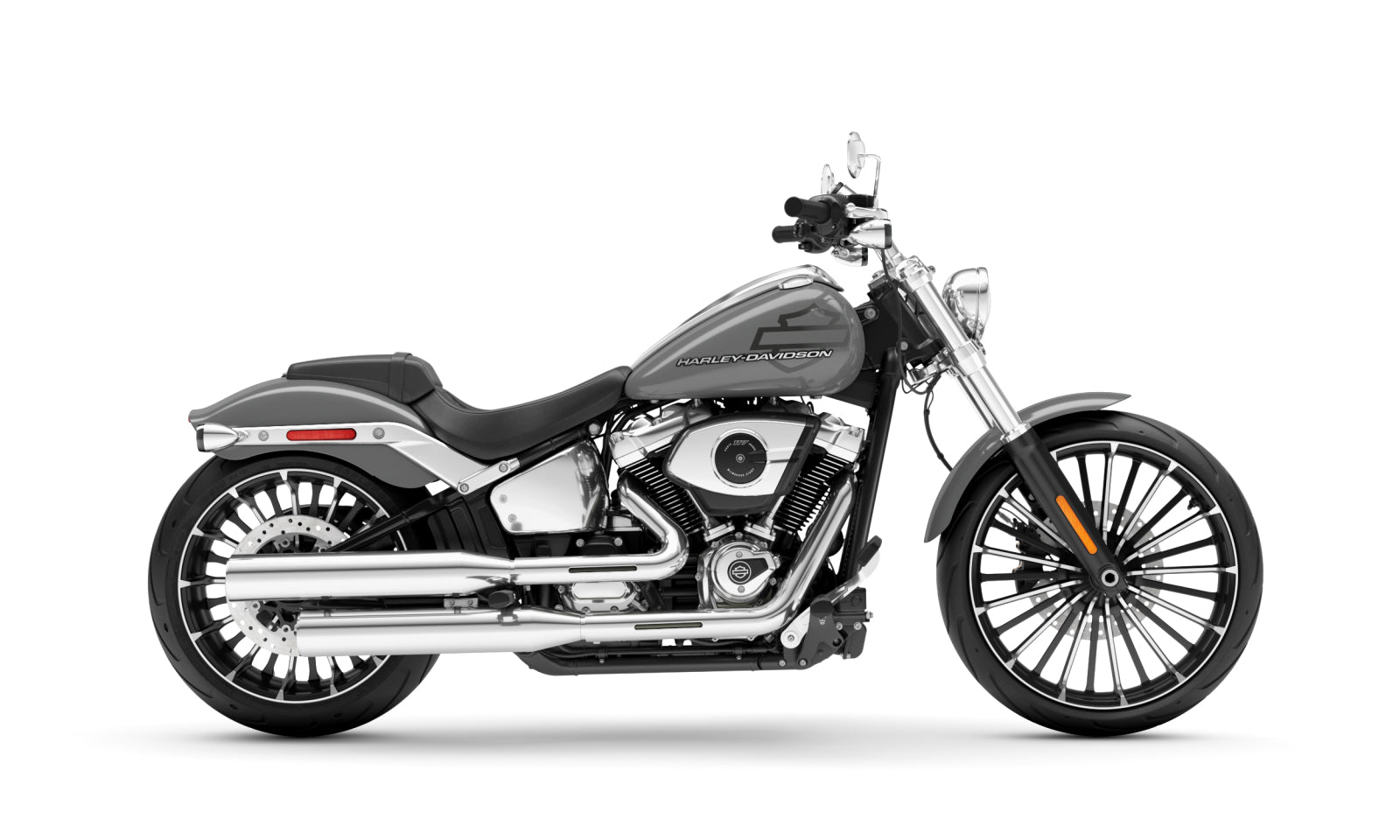

HARLEY-DAVIDSON 2026 BREAKOUT™
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.
The Breakout brings the attitude of a custom build and the ease of a factory bike home to your garage. Leave the hassle at the swap meet.
AT A GLANCE
Why Blend in When You Can Break Out?

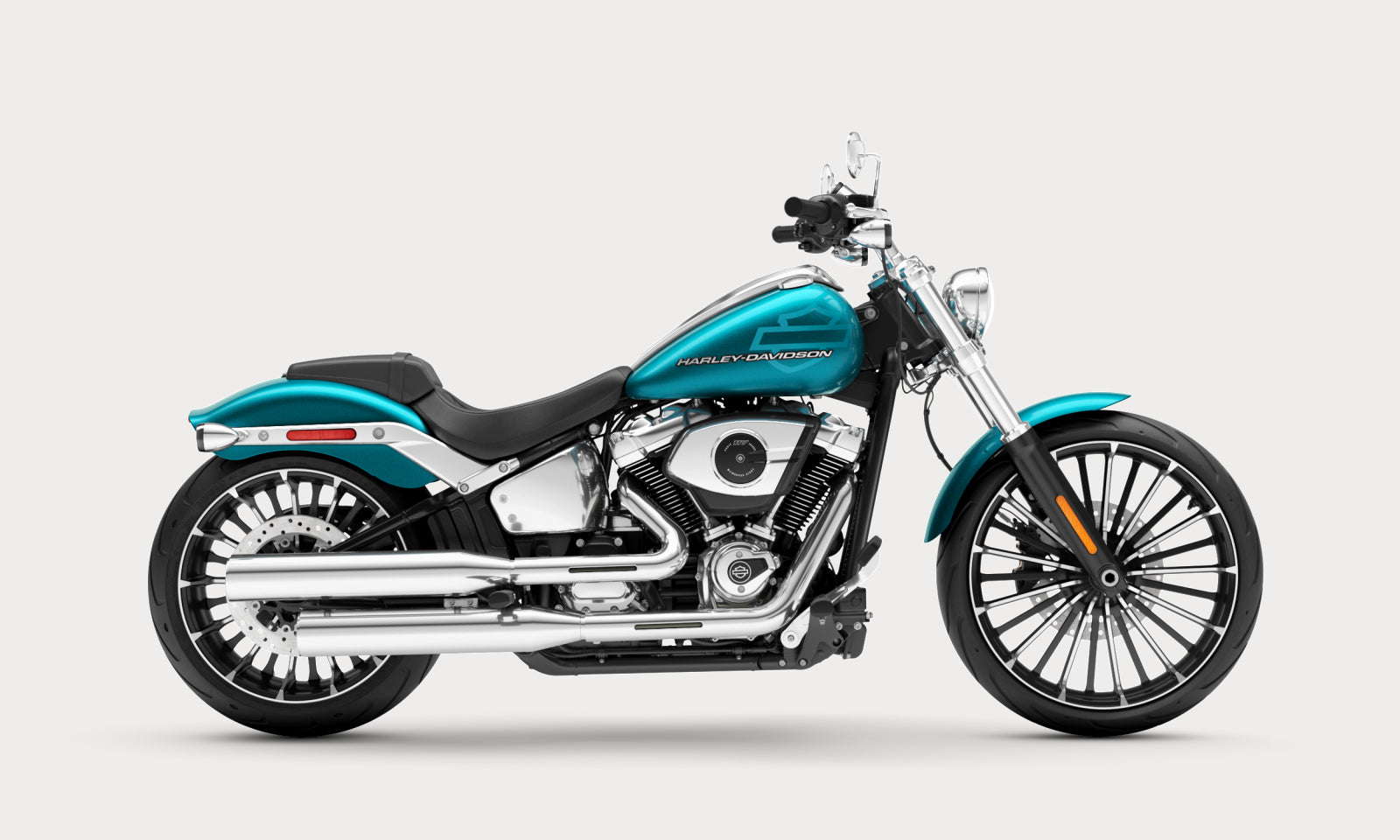

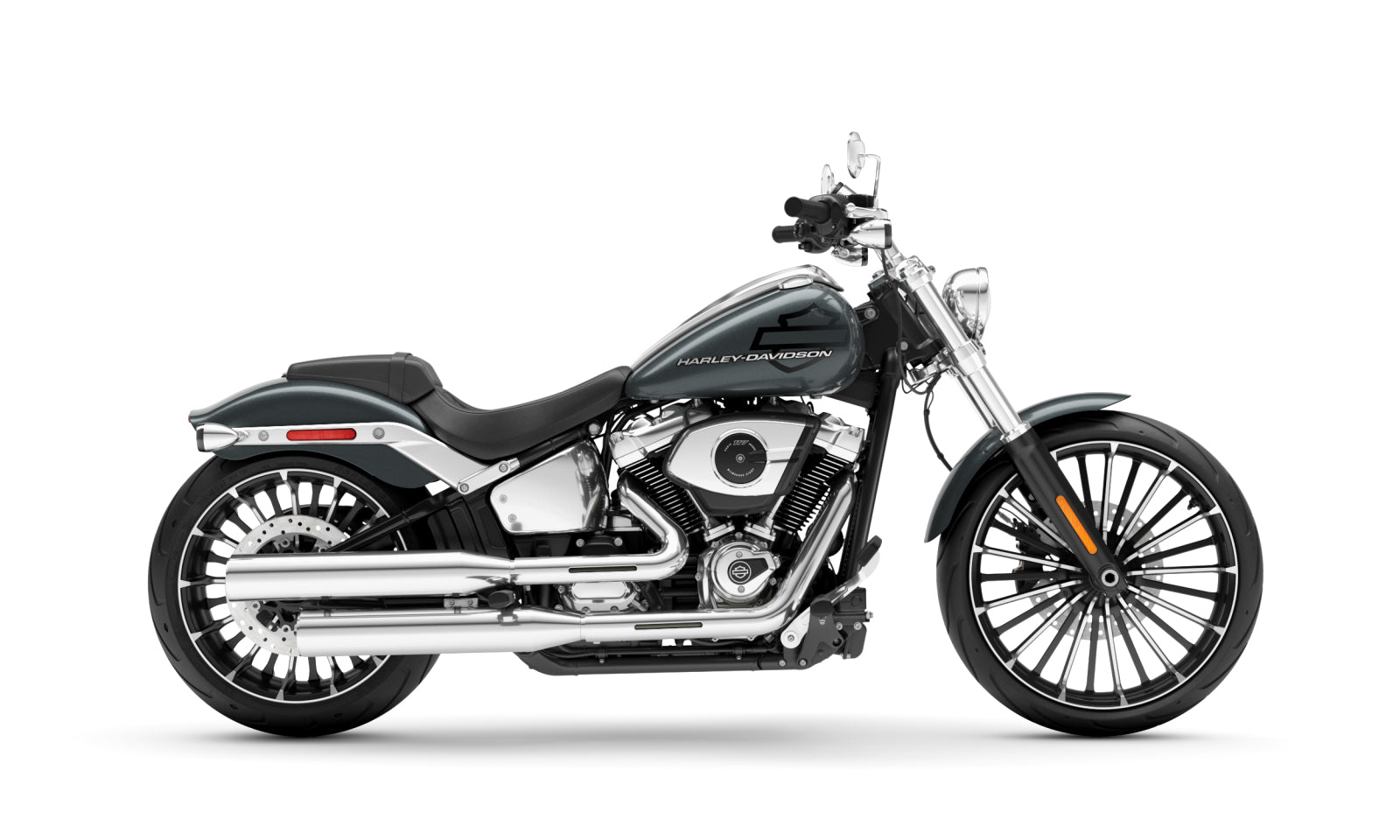

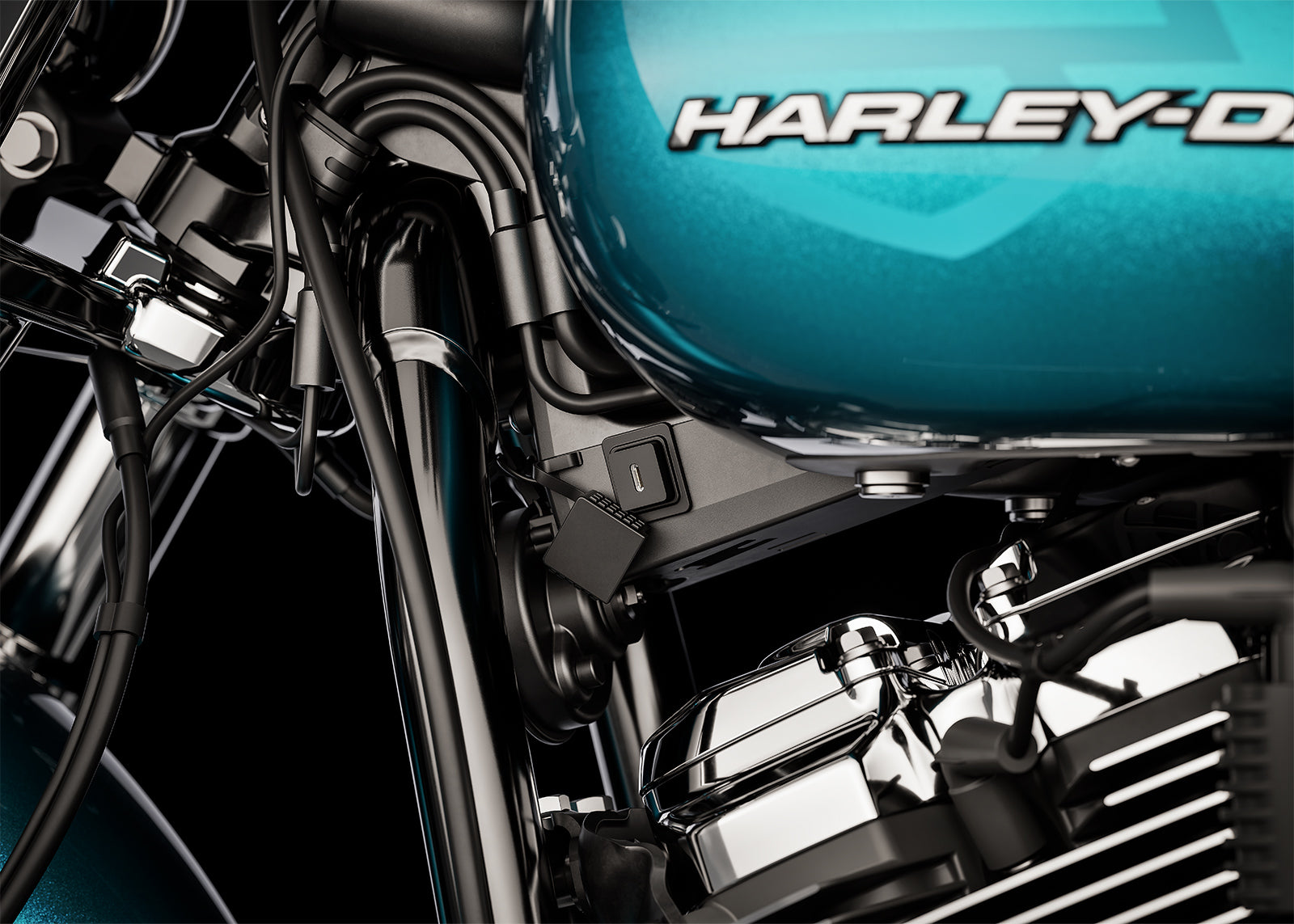

With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don't get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight™ 117 Custom, two new paint options, and much more.
|
103 HP Horsepower
|
25.6 in. Seat Height, Laden
|
|
126 ft-lbs Engine Torque
|
49 mpg Fuel Economy
|

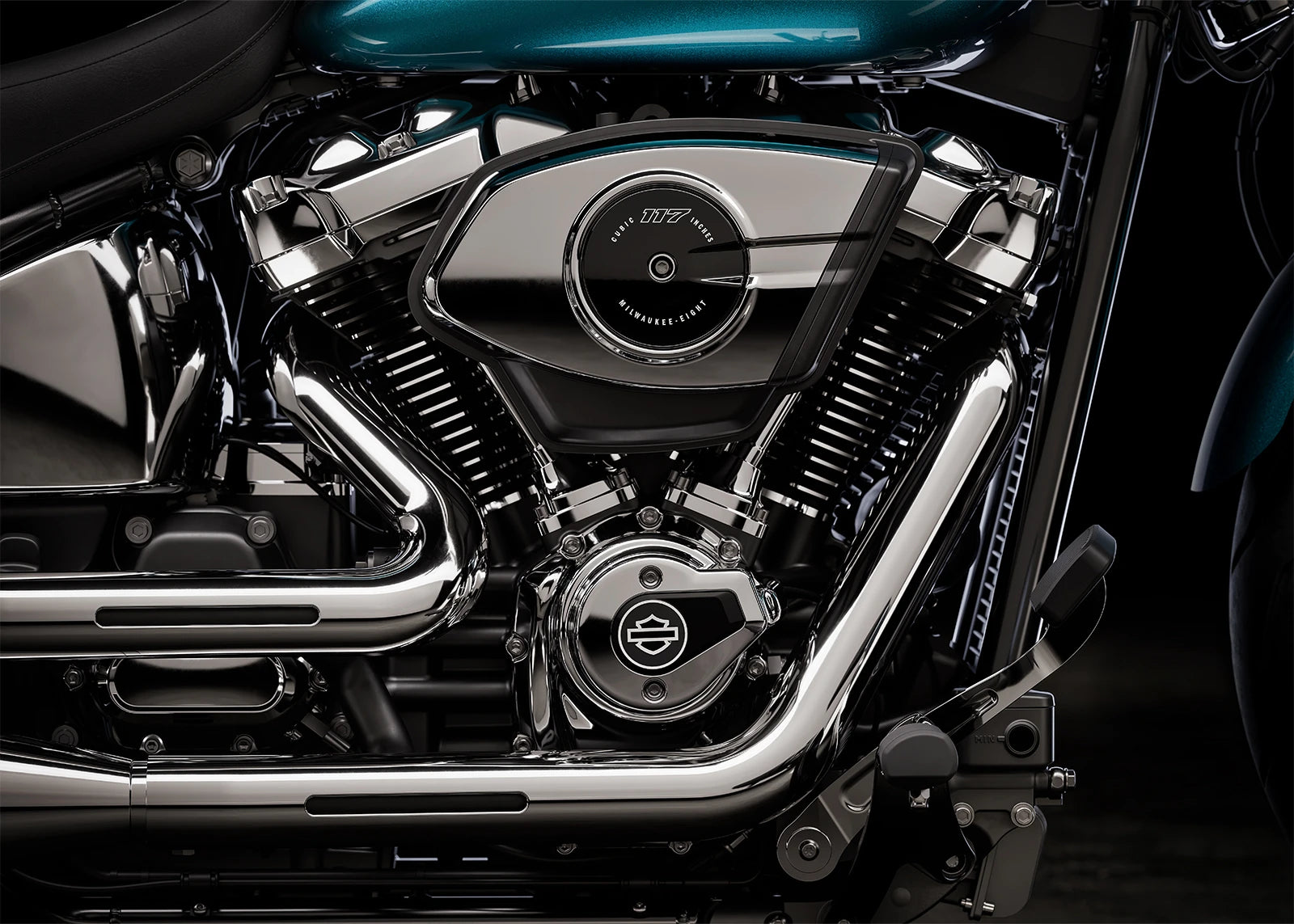

Big-Inch Milwaukee-Eight 117 Custom Motor
The most displacement you can get in a factory-installed, regular-production Harley-Davidson® powertrain. Torque-rich, smooth-running, and made to move.

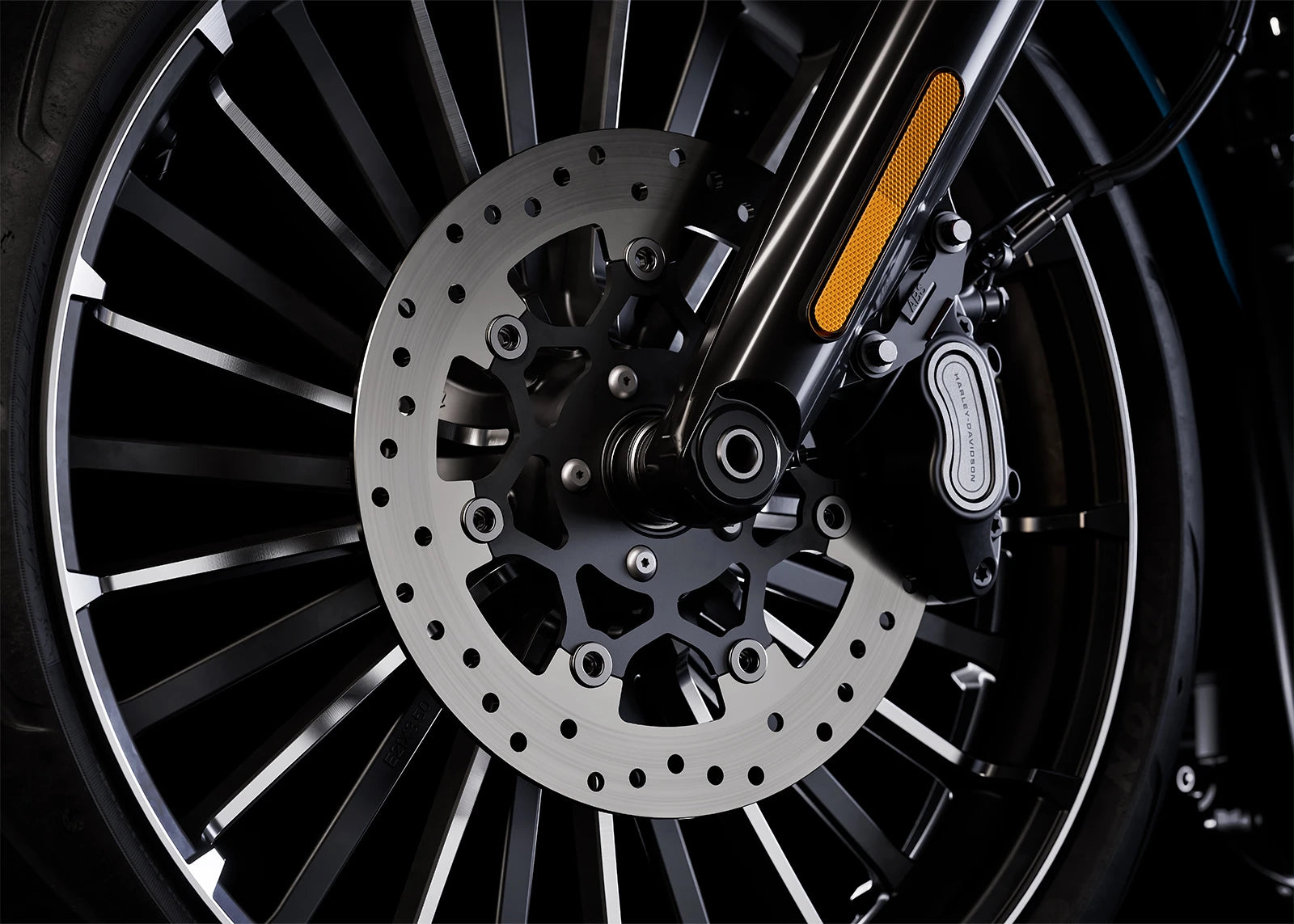

300mm Front Disc + 21” Wheel
A single 300mm disc brake delivers confident stopping power while keeping the lines clean on that tall, bold 21” front wheel.

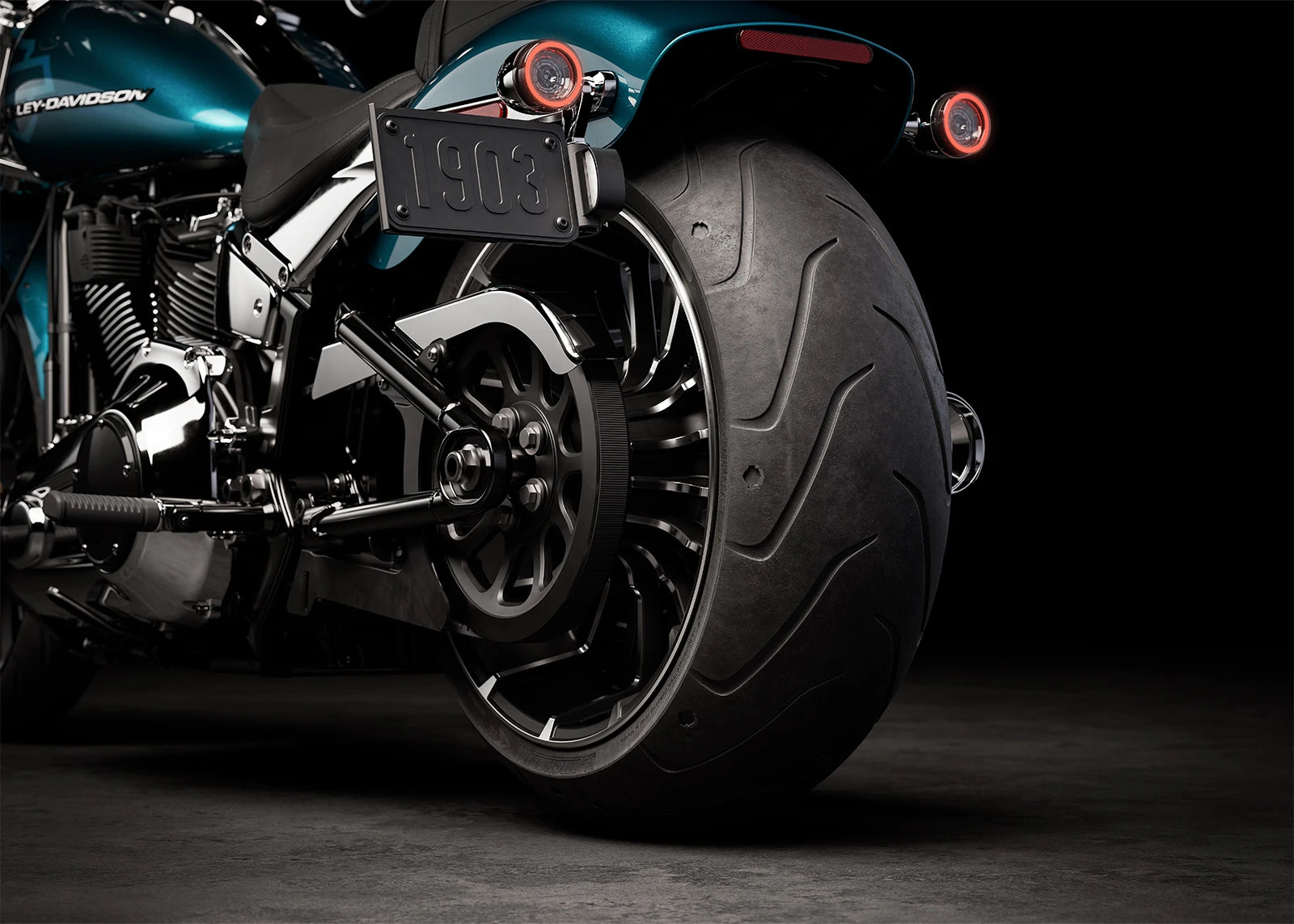

Boldly Profiled 240mm Rear Tire
A massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.

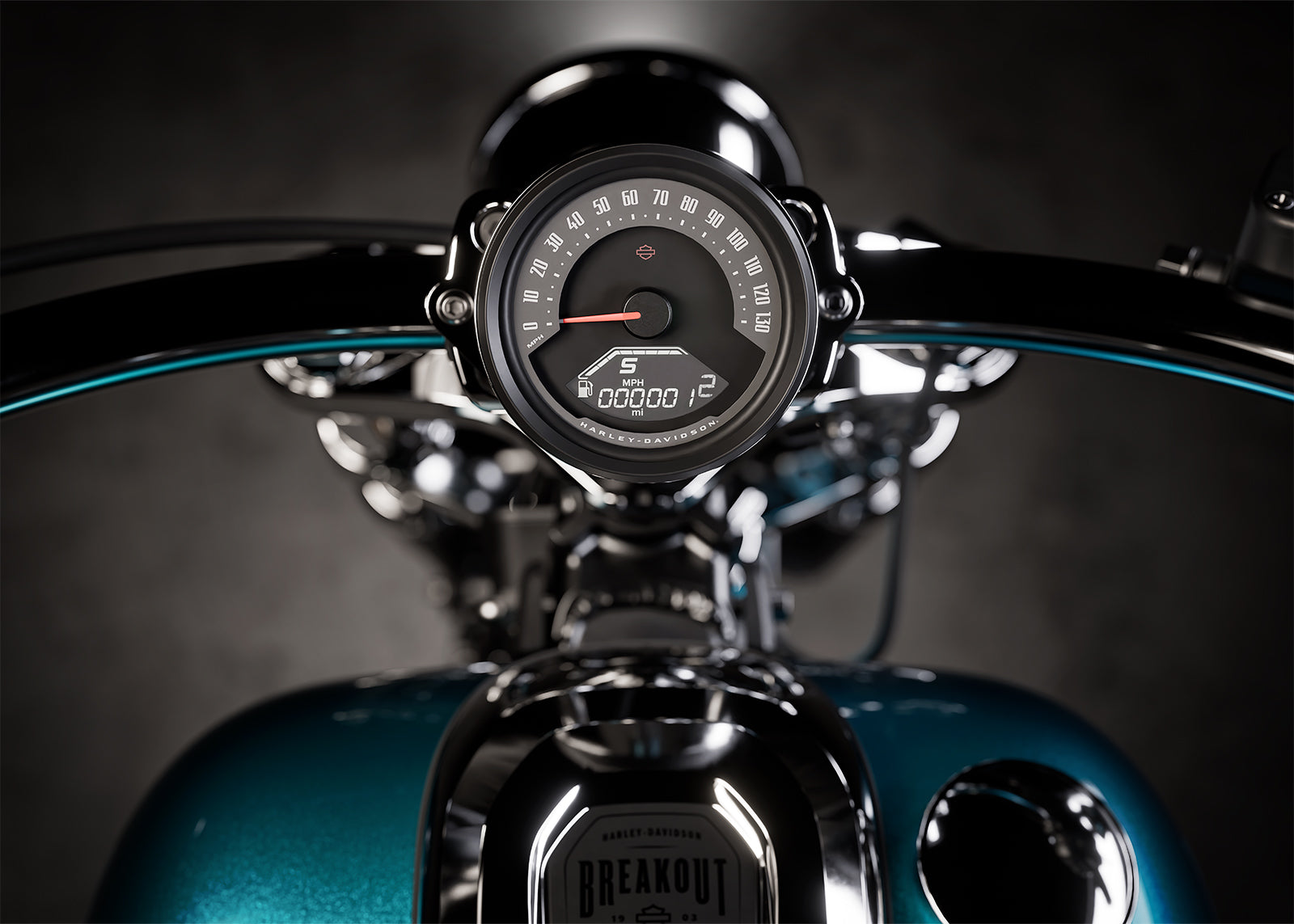

4” Analog Gauge + Customizable Ride Modes
A clean 4-inch analog gauge with a built-in digital display delivers the info you need without clutter, keeping the view as sharp as the rest of the Breakout. Road, Rain, and Sport ride modes adjust throttle response and traction settings to match how and where you ride, giving you quick tuning that keeps it feeling exactly the way you want.

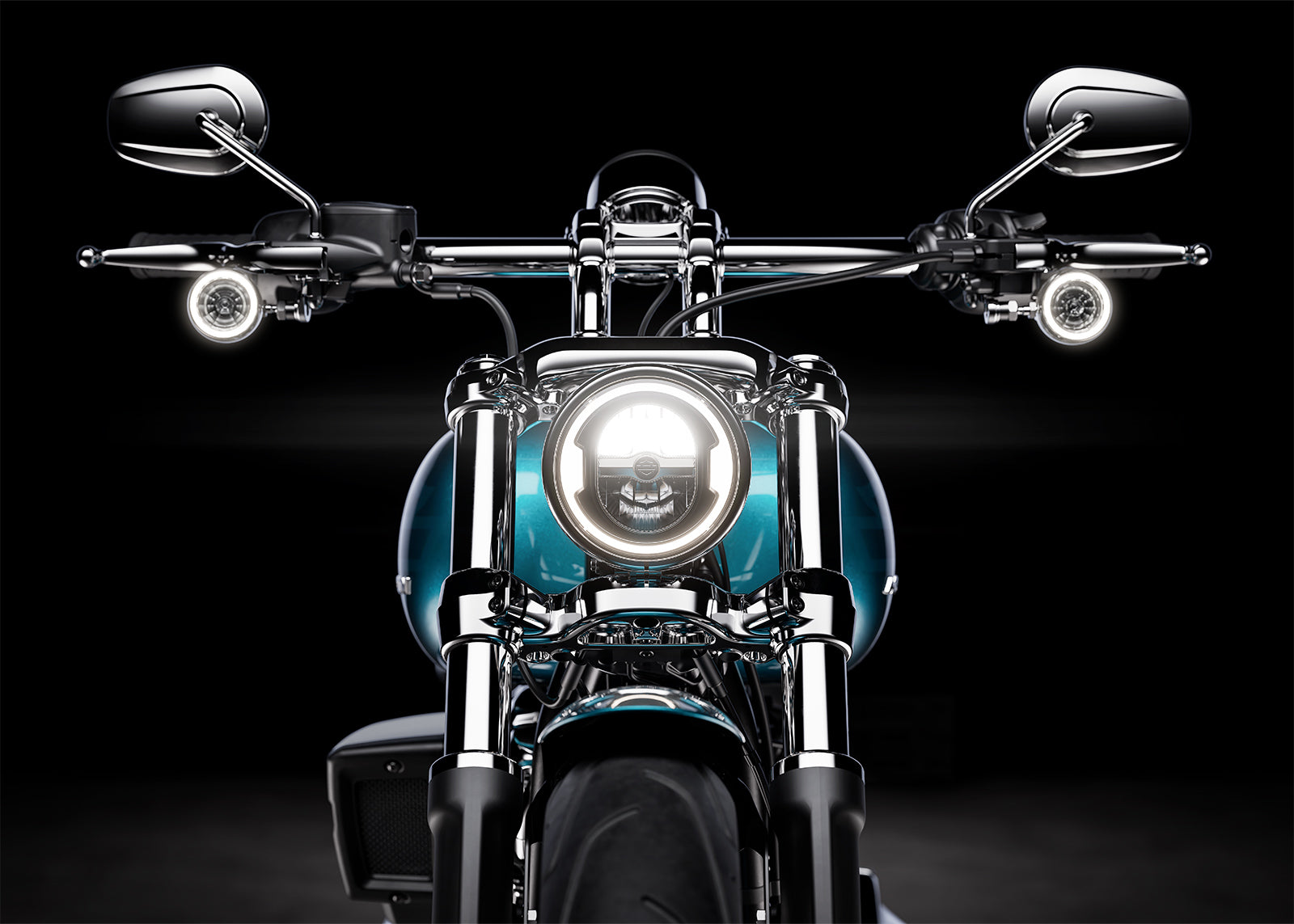

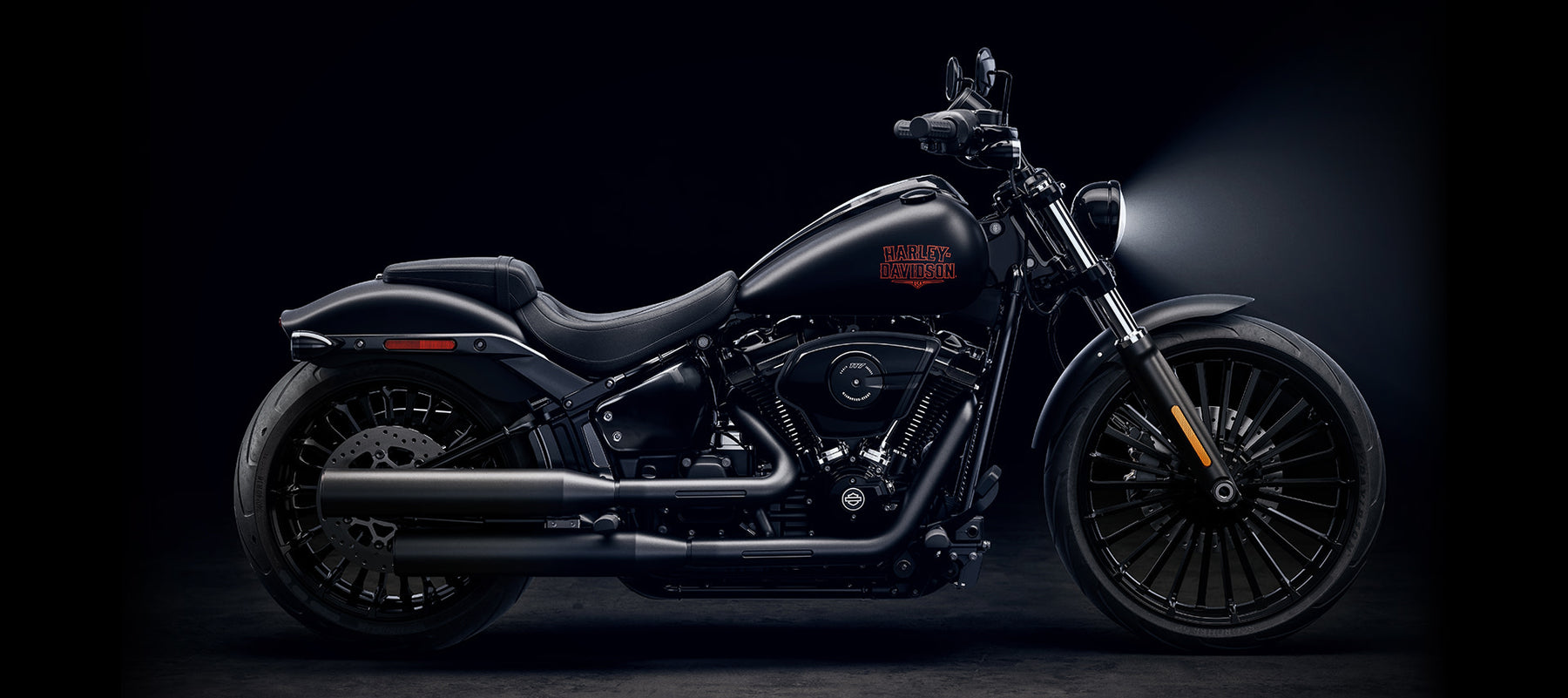

5.75” LED Headlamp + LED Turn Signals
Bright, clean, and impossible to ignore. A 5.75” LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.
"This bike is a new experience for me. I found a factory bike that fit my style instead of having to build one myself, and it brings a smile to my face whenever I walk into my garage."

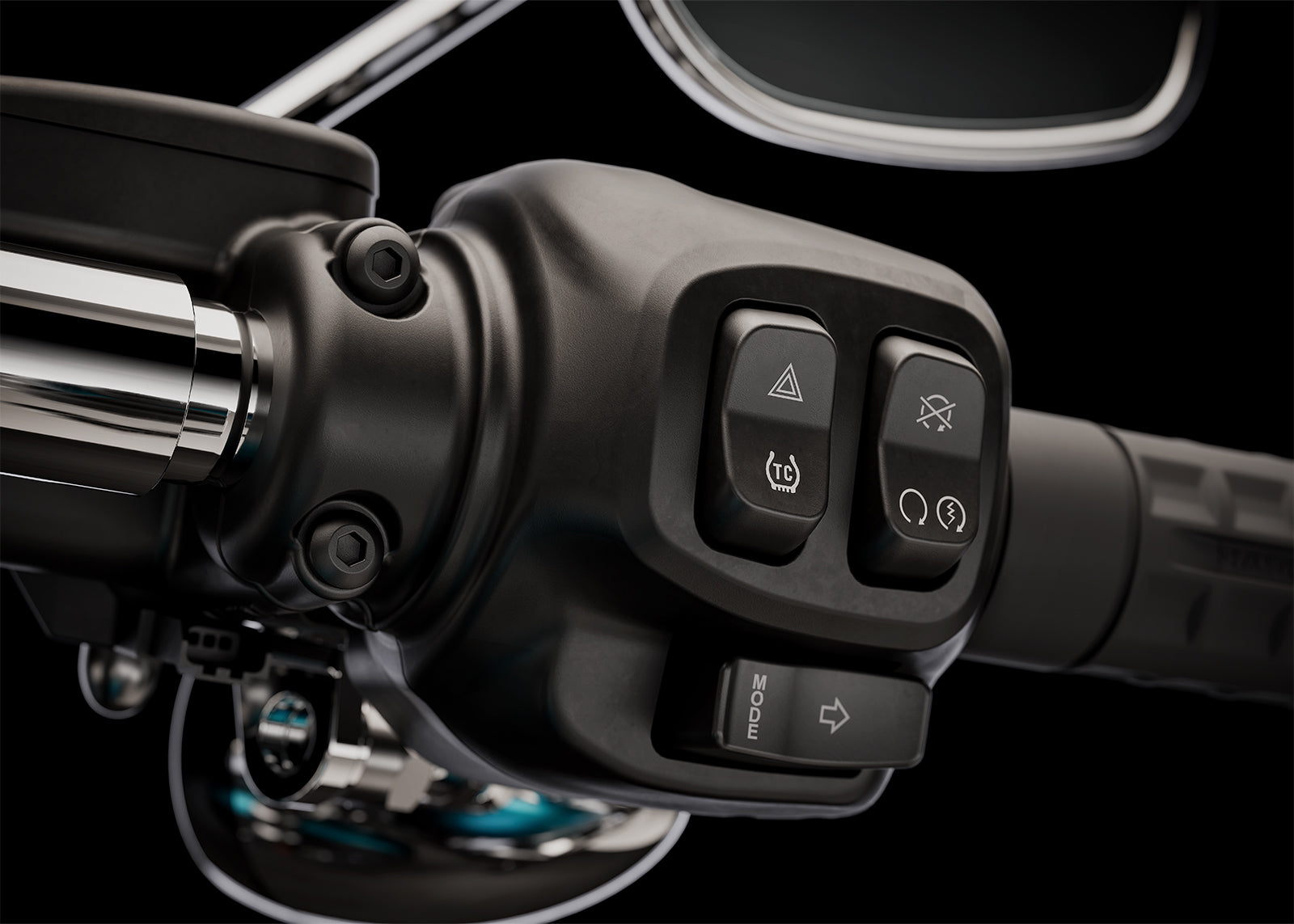

RIDER SAFETY ENHANCEMENTS
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
Anti-lock Brake System (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
Cornering Enhanced Anti-lock Brake System (C-ABS)
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
Cornering Enhanced Traction Control System (C-TCS)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
Cornering Drag-Torque Slip Control System (C-DSCS)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.

Technical Specifications
|
|
|
|
Dimensions |
|
|
Length |
93.5 in. |
|
Width |
37 in. |
|
Seat Height, Laden + |
25.6 in. |
|
Ground Clearance |
4.5 in. |
|
Rake |
34 |
|
Trail |
5.7 in. |
|
Wheelbase |
66.7 in. |
|
Tire, Type |
Michelin® Scorcher 11, front and rear |
|
Tires, Front Specification |
130/60B21,63H,BW |
|
Tires, Rear Specification |
240/40R18,79V,BW |
|
Fuel Capacity |
5 gal. |
|
Oil Capacity (w/filter) |
5 qt. |
|
Weight, In Running Order |
681 lb. |
|
|
|
|
Engine |
|
|
Engine+ |
Milwaukee-Eight® 117 Custom |
|
Bore |
4.075 in. |
|
Stroke |
4.5 in. |
|
Displacement |
117 cu in. |
|
Compression Ratio |
10.3:1 |
|
Fuel System+ |
Electronic Sequential Port Fuel Injection (ESPFI) |
|
Exhaust |

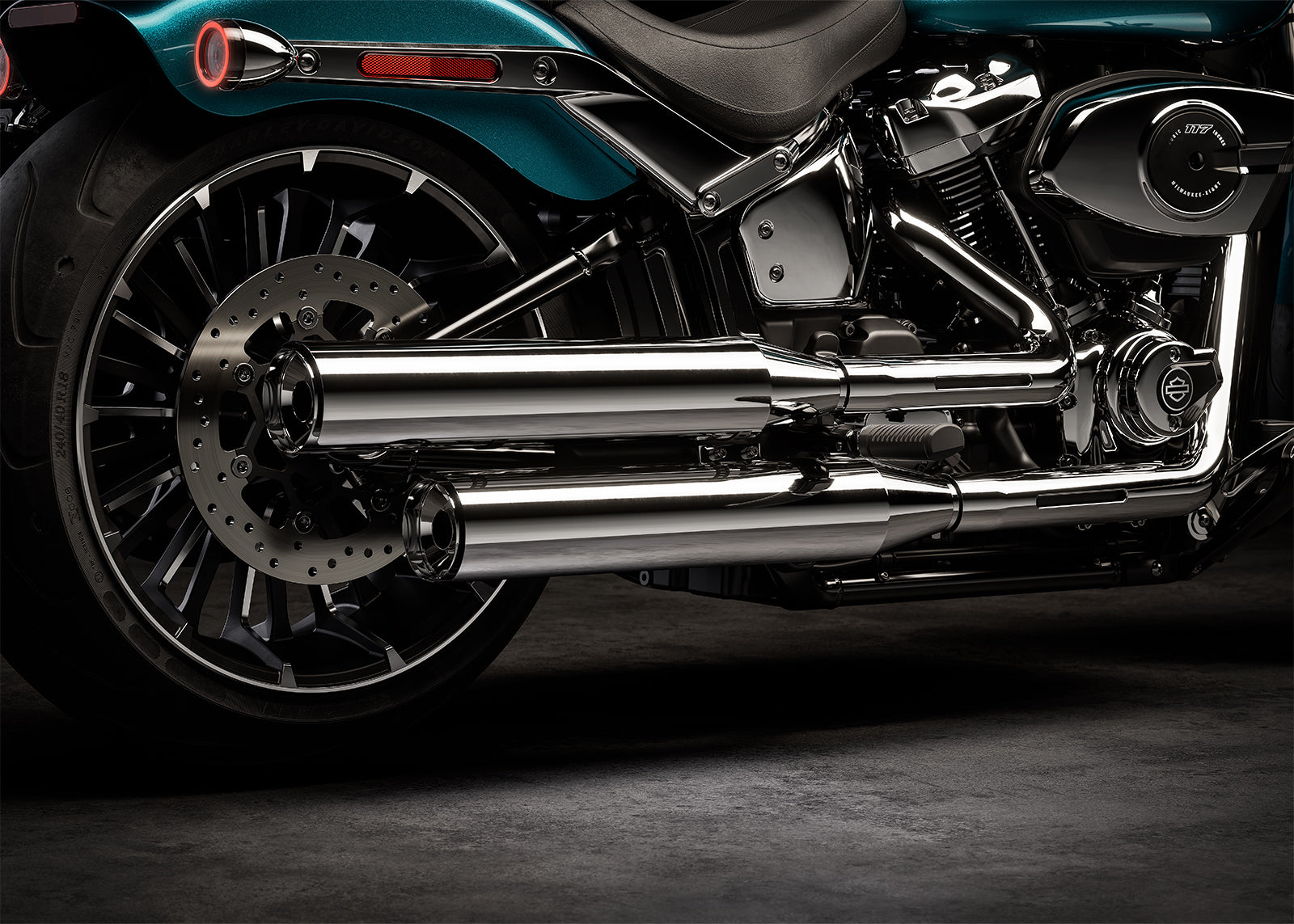

2-into-2 staggered; catalyst in muffler |
|
|
|
|
Performance |
|
|
Engine Torque Testing Method |
J1349 |
|
Engine Torque+ |
126 ft-lbs |
|
Engine Torque (rpm) |
3000 |
|
Horsepower |
103 HP / 77 kW @ 4800 rpm |
|
Lean Angle, Right (deg.) |
26.8 |
|
Lean Angle, Left (deg.) |
26.8 |
|
Fuel Economy Testing Method |
Estimated City/Hwy |
|
Fuel Economy+ |
49 mpg |
|
|
|
|
Drive Train |
|
|
Primary Drive |
Chain, 34/46 ratio |
|
Gear Ratios (overall) 1st |
9.311 |
|
Gear Ratios (overall) 2nd |
6.454 |
|
Gear Ratios (overall) 3rd |
4.793 |
|
Gear Ratios (overall) 4th |
3.882 |
|
Gear Ratios (overall) 5th |
3.307 |
|
Gear Ratios (overall) 6th |
2.79 |
|
|
|
|
Chassis |
|
|
Front Fork |
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring |
|
Rear Shocks |

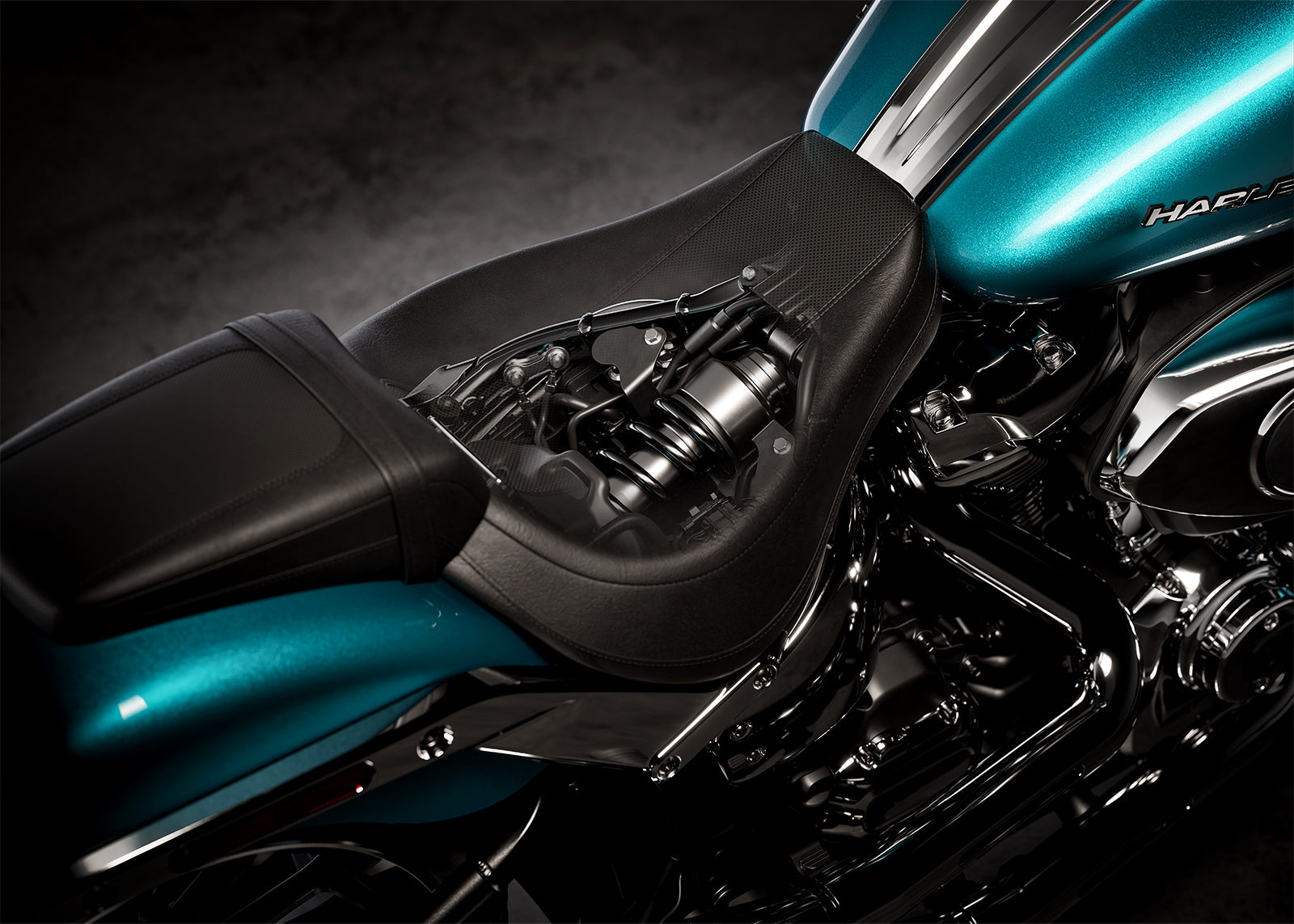

Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment |
|
Wheels, Front Type+ |
Gloss black, 26-spoke cast aluminum |
|
Wheels, Rear Type+ |
Gloss black, 26-spoke cast aluminum |
|
Brakes, Caliper Type |
4-piston fixed front and 2-piston floating rear |
|
Brakes, Rotor Type |
Front and rear black, Split 7-spoke floating rotors |
|
|
|
|
Electric |
|
|
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+ |
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
|
Gauges |
4-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer |
