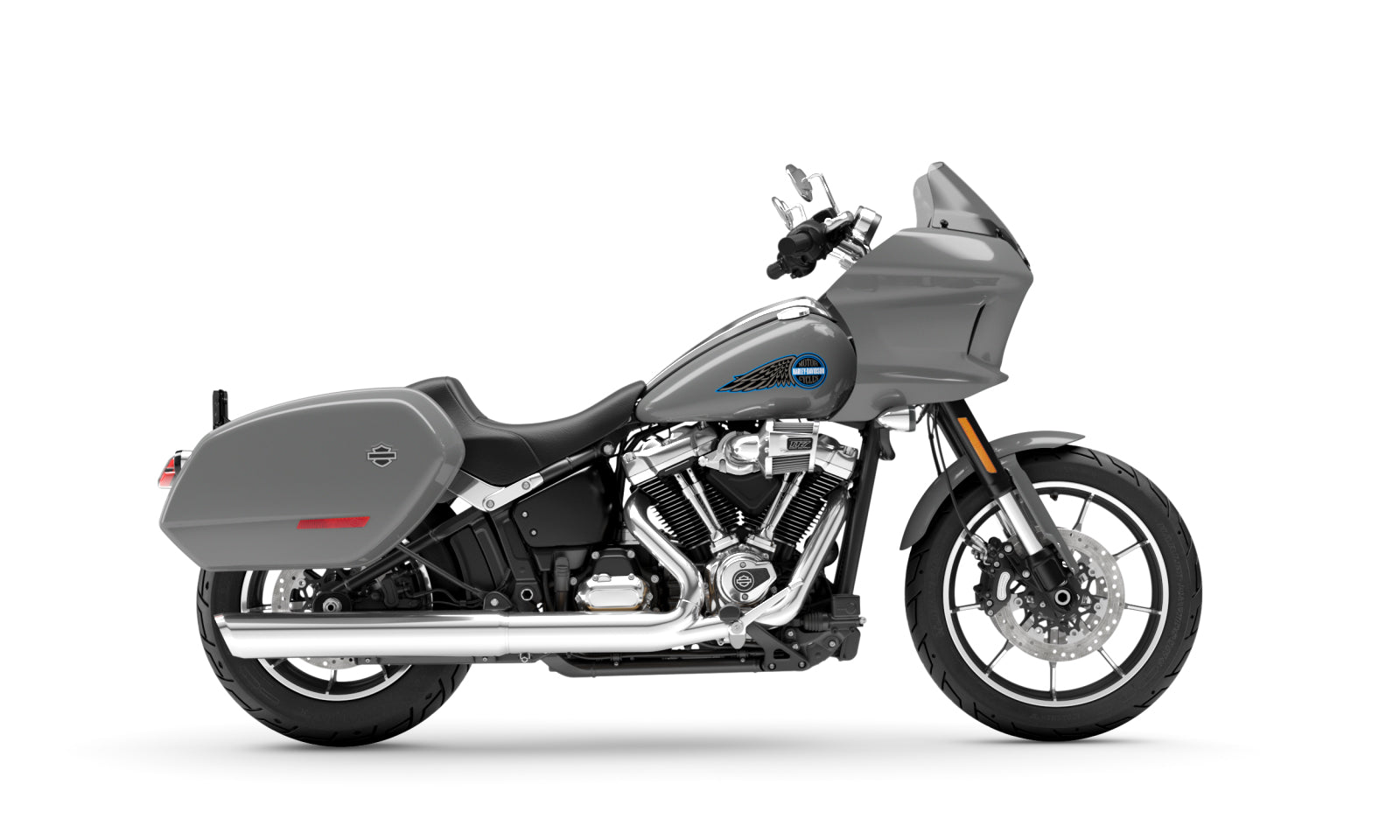

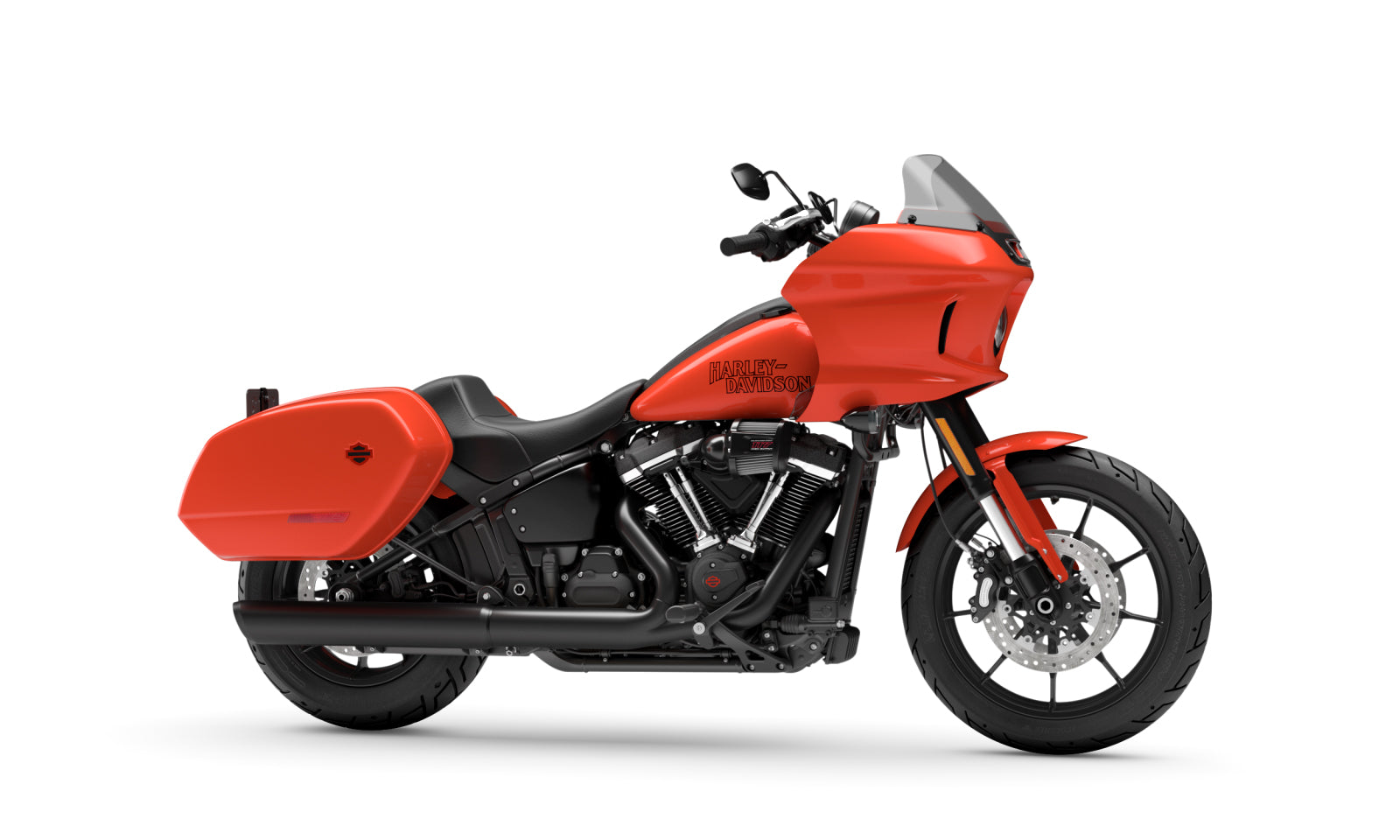

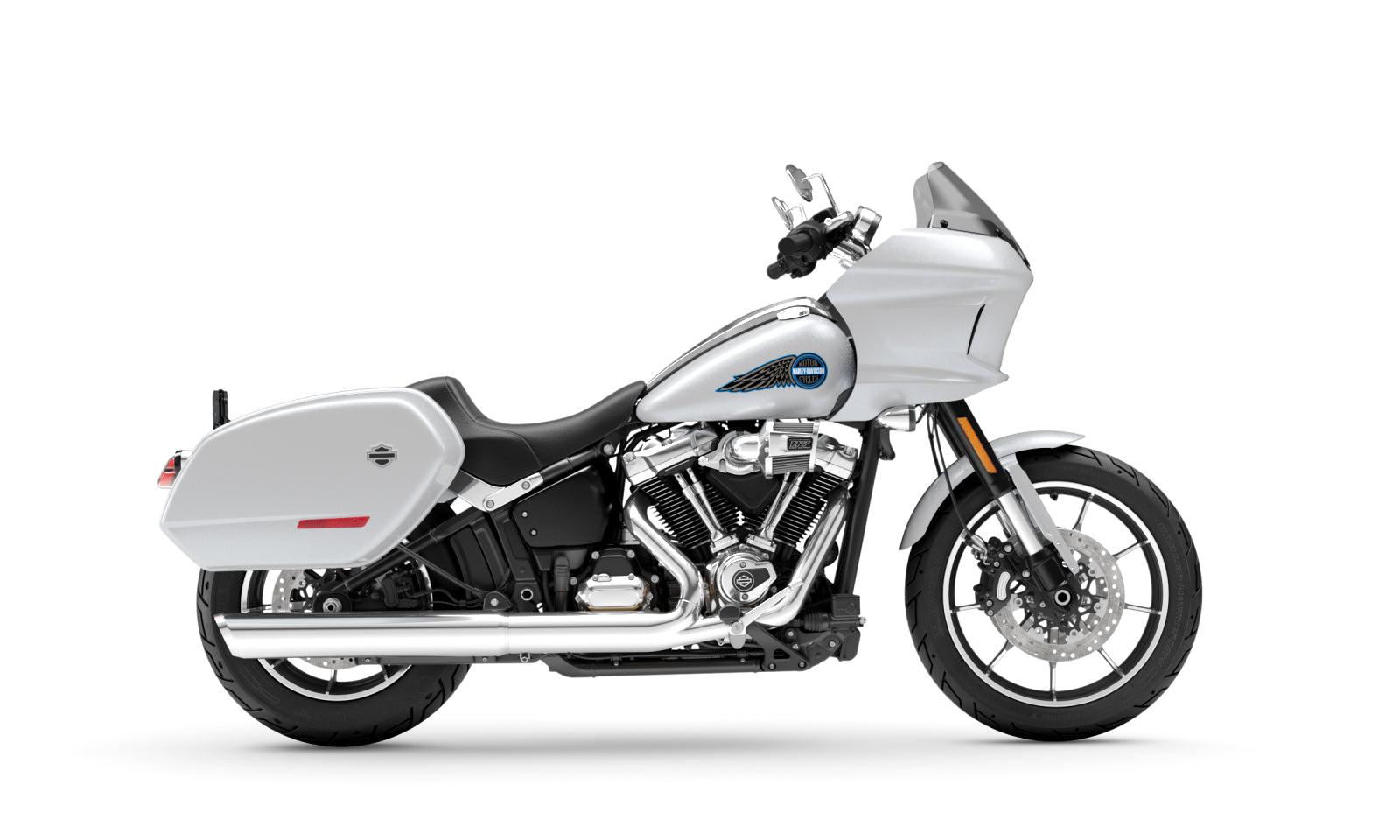

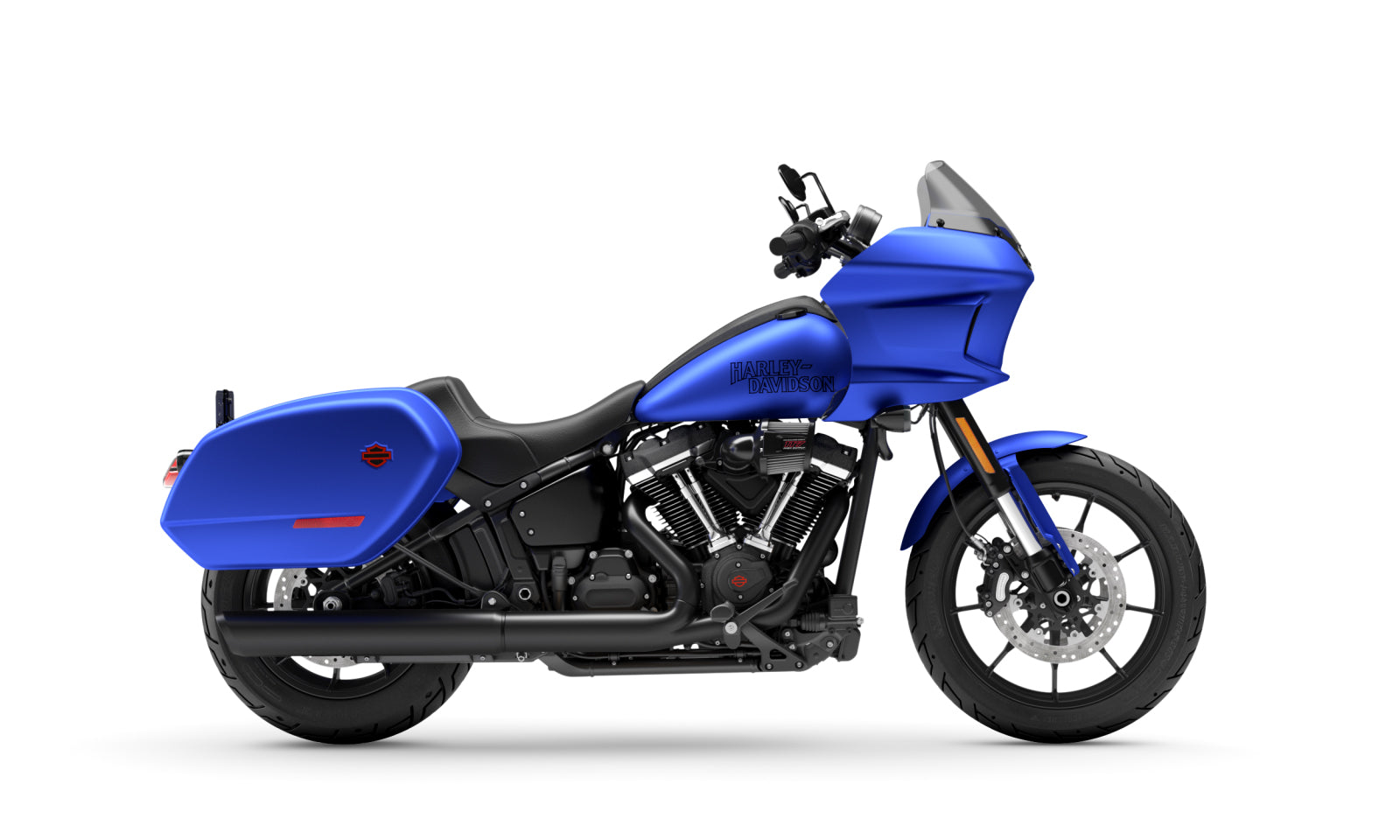

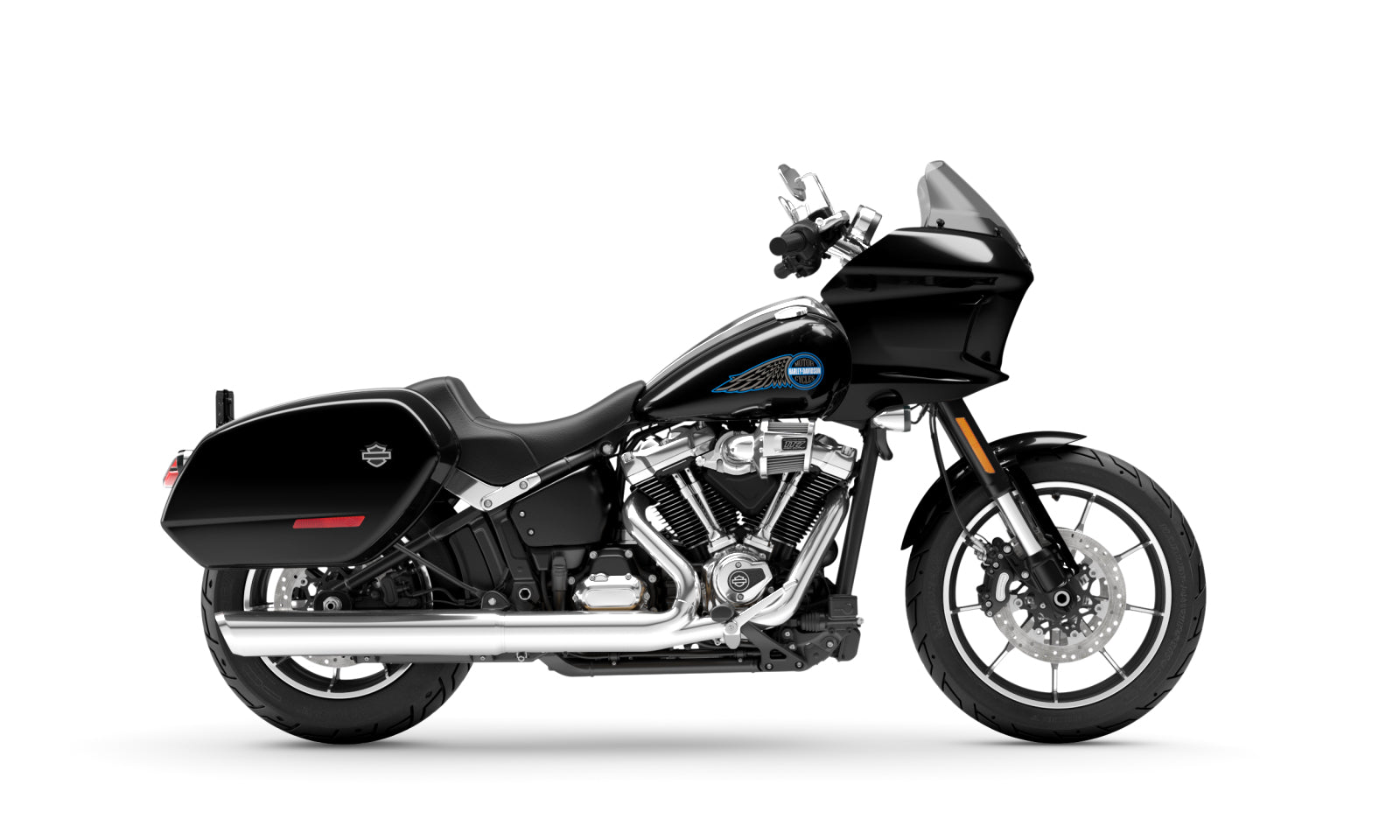

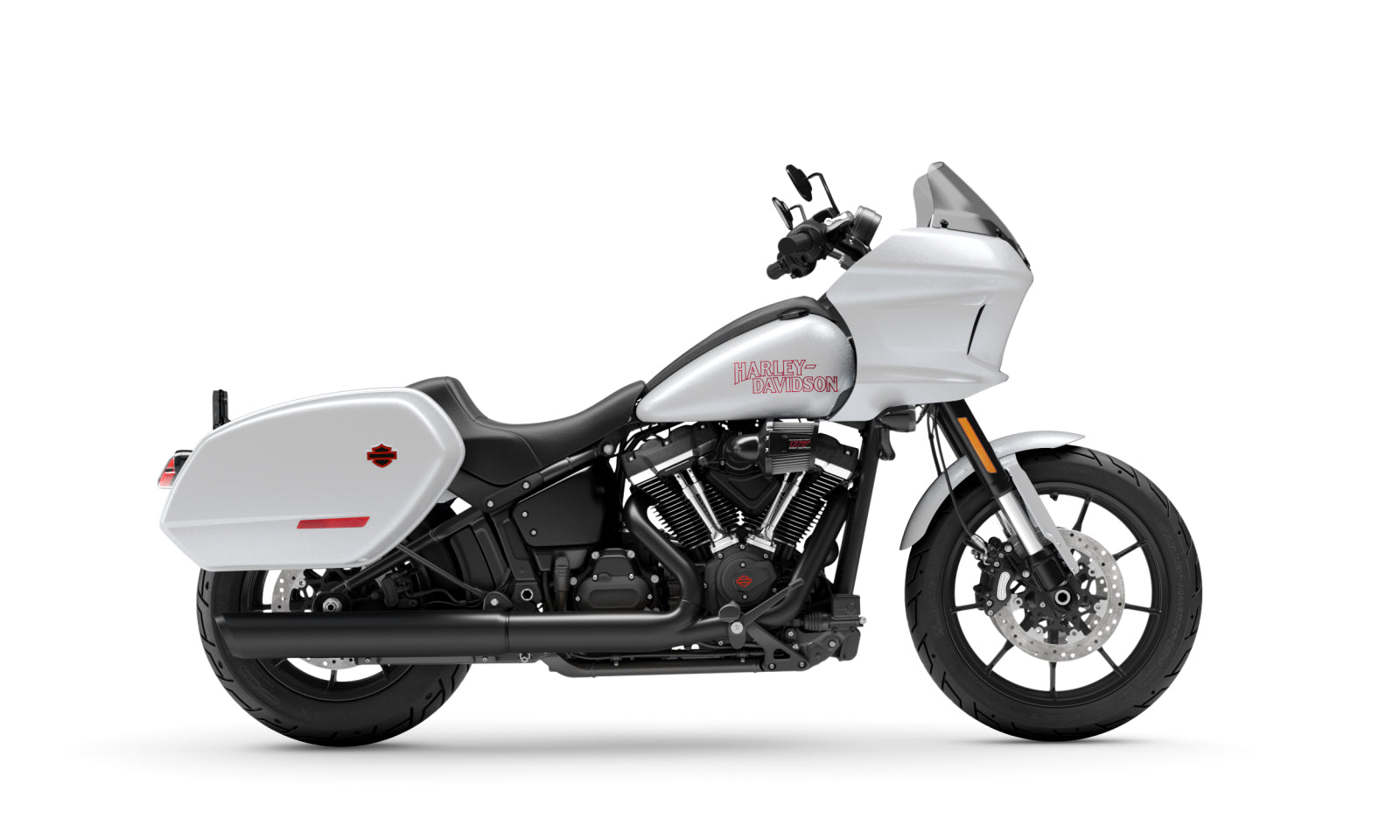

HARLEY-DAVIDSON 2026 LOW RIDER™ ST
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.
When you realize the line between “too far” and “not far enough” doesn’t exist, you’ve found the 2026 Low Rider ST.
AT A GLANCE
A Bike That Crosses Every Line and Keeps Going

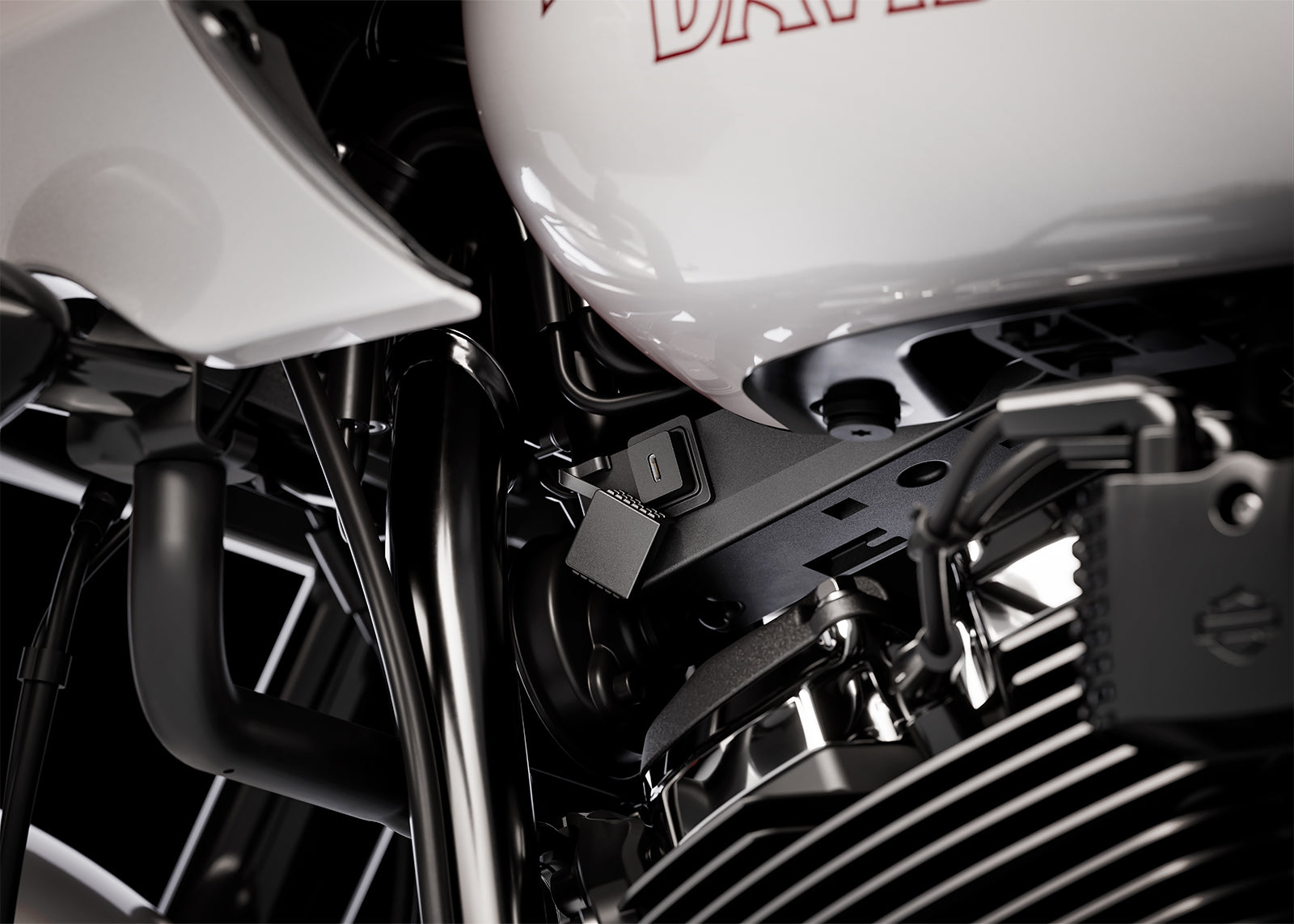

The performance pedigree of the 2026 Low Rider ST shows up in every detail. From its FXRT-inspired fairing and special touches on the chrome and black trim that nod to its roots, to the Milwaukee-Eight™ 117 High Output motor, performance-tuned suspension, Heavy Breather intake, and performance 2-into-1 exhaust, it’s designed for life on the limiter. Oh, and USB-C charging comes standard.
|
114 HP Horsepower |
173 Nm Engine Torque |
|
715 mm Seat Height, Unladen |
5.5 l/100 Fuel Economy |

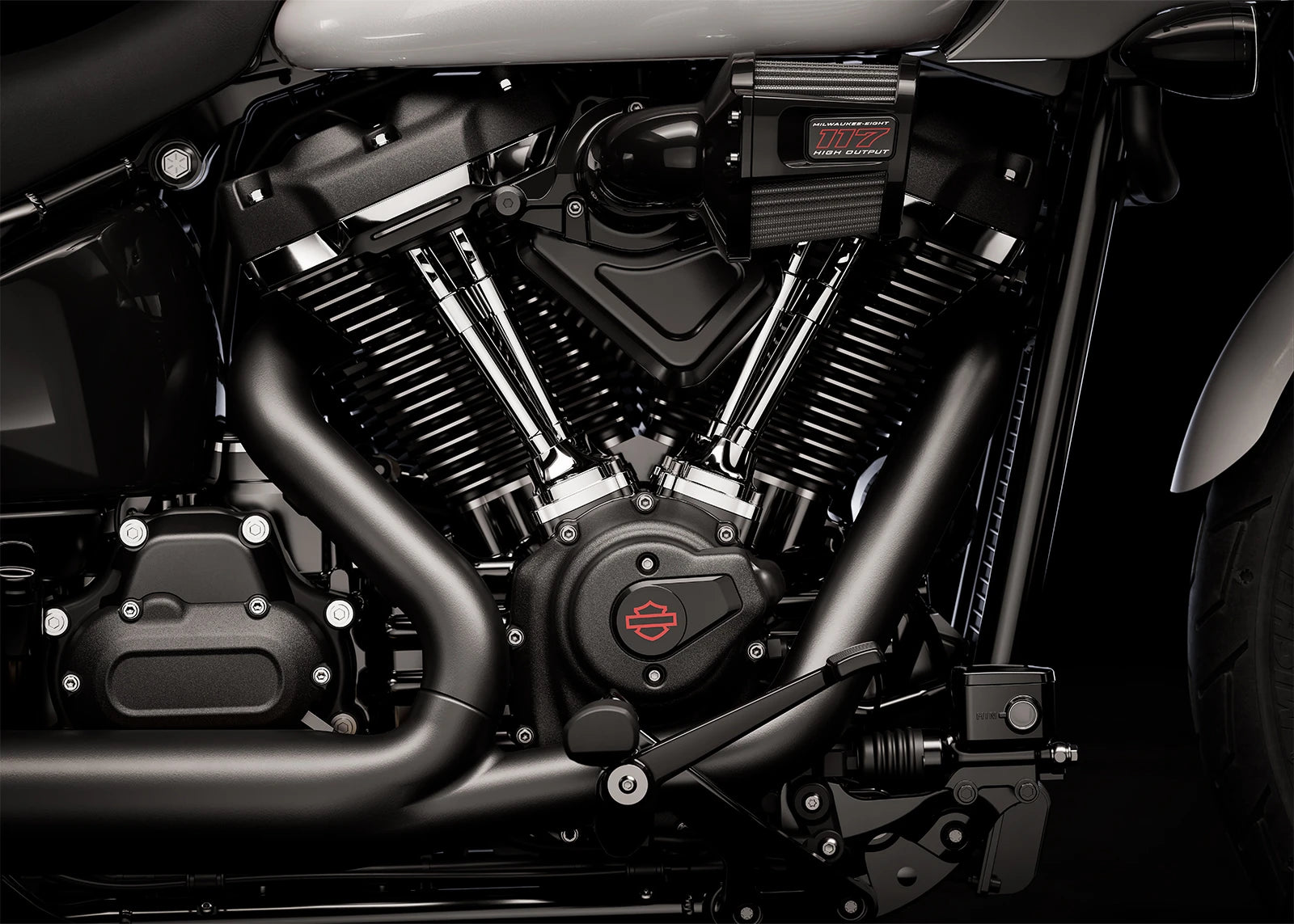

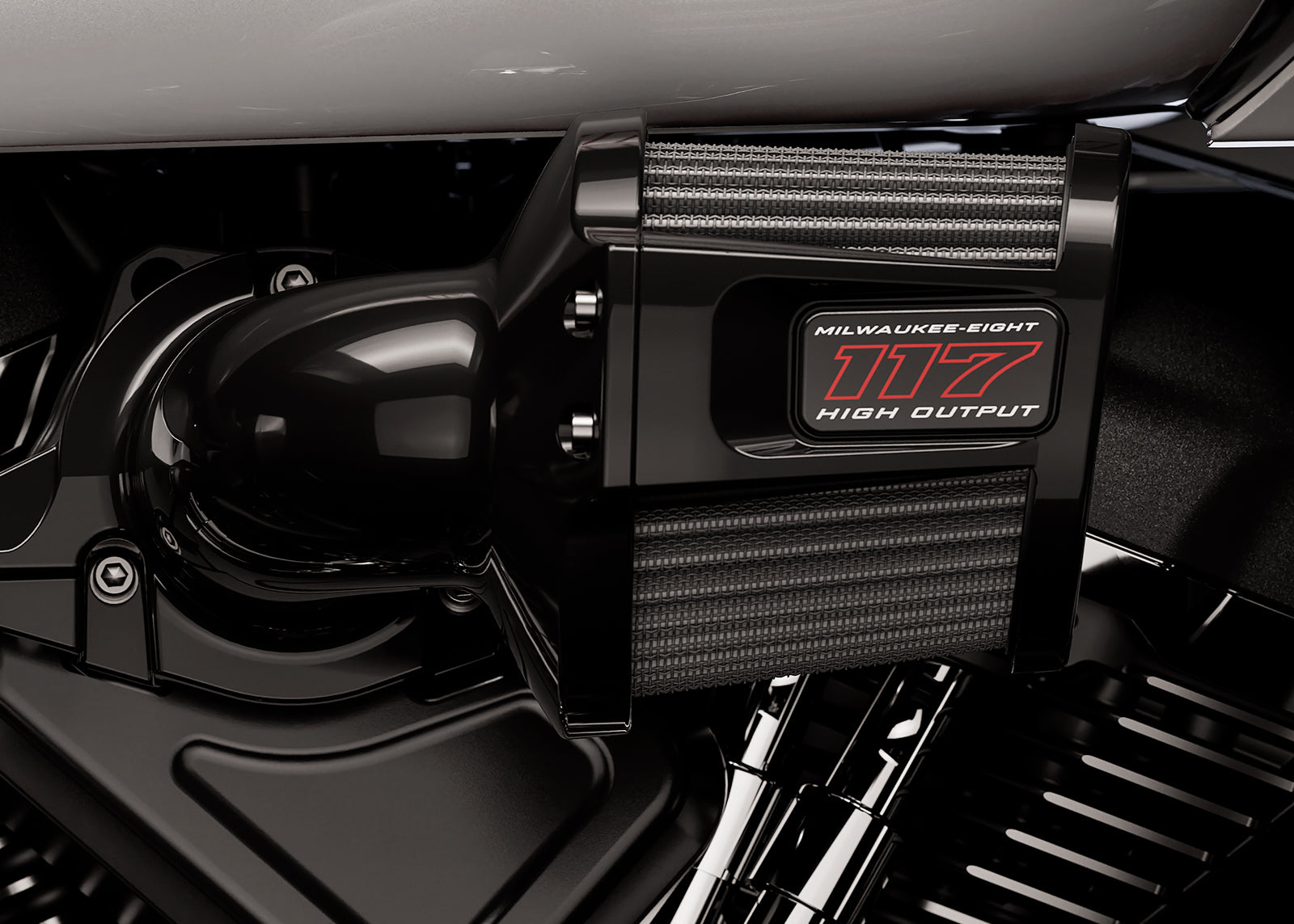

Run Wide Open With The Milwaukee-Eight 117 H.O. Motor
The Milwaukee-Eight 117 High Output motor pulls harder through the mid and top end, with redline pushed to 5,900 rpm so you can hold the throttle wide open and let the bike do what we built it for.

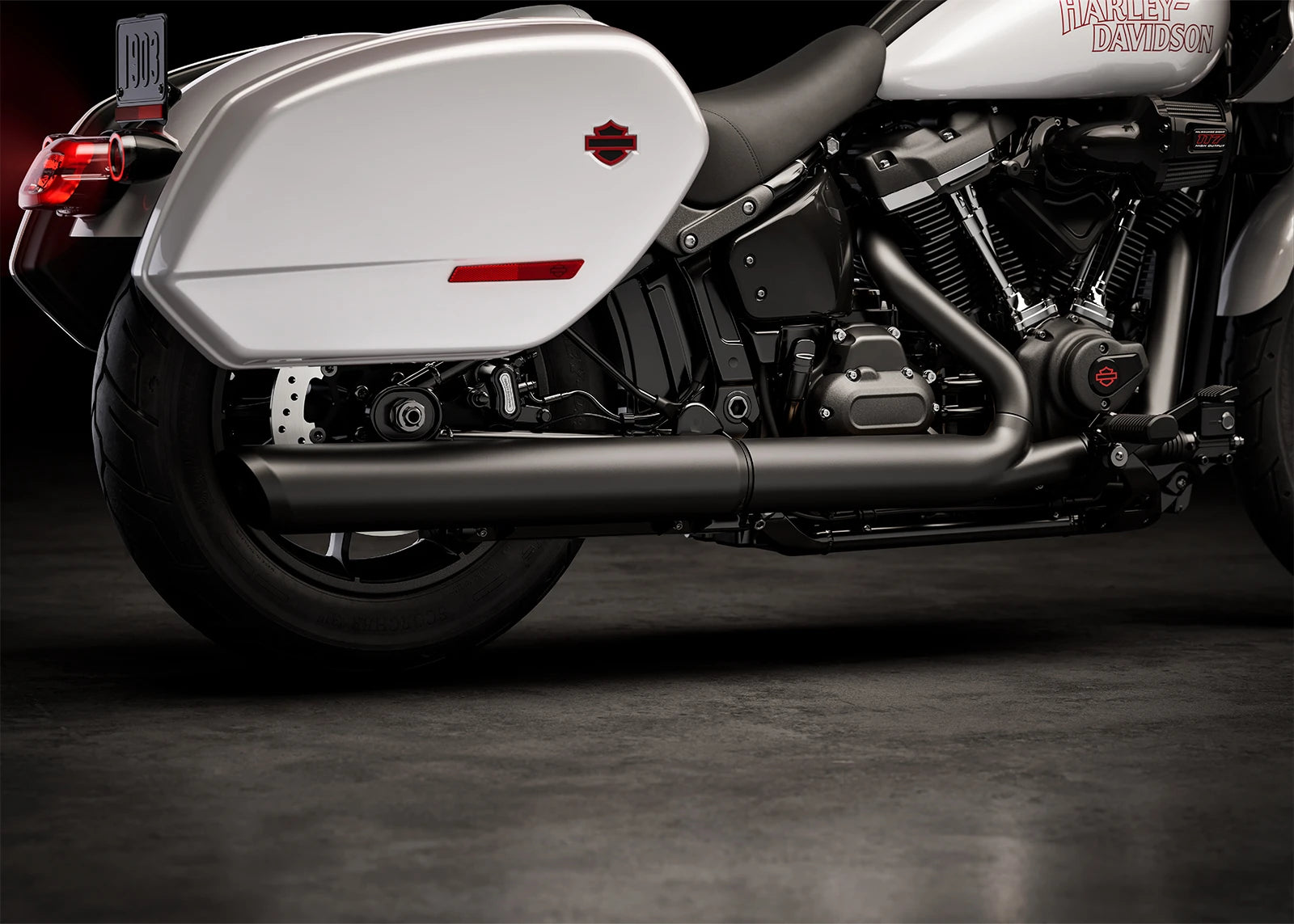

2-Into-1 Exhaust Built for Bite
The performance-tuned 2-into-1 exhaust tightens up the lines, balances the saddlebag symmetry, and lets the motor breathe better and sound meaner when it's time to go full-send.

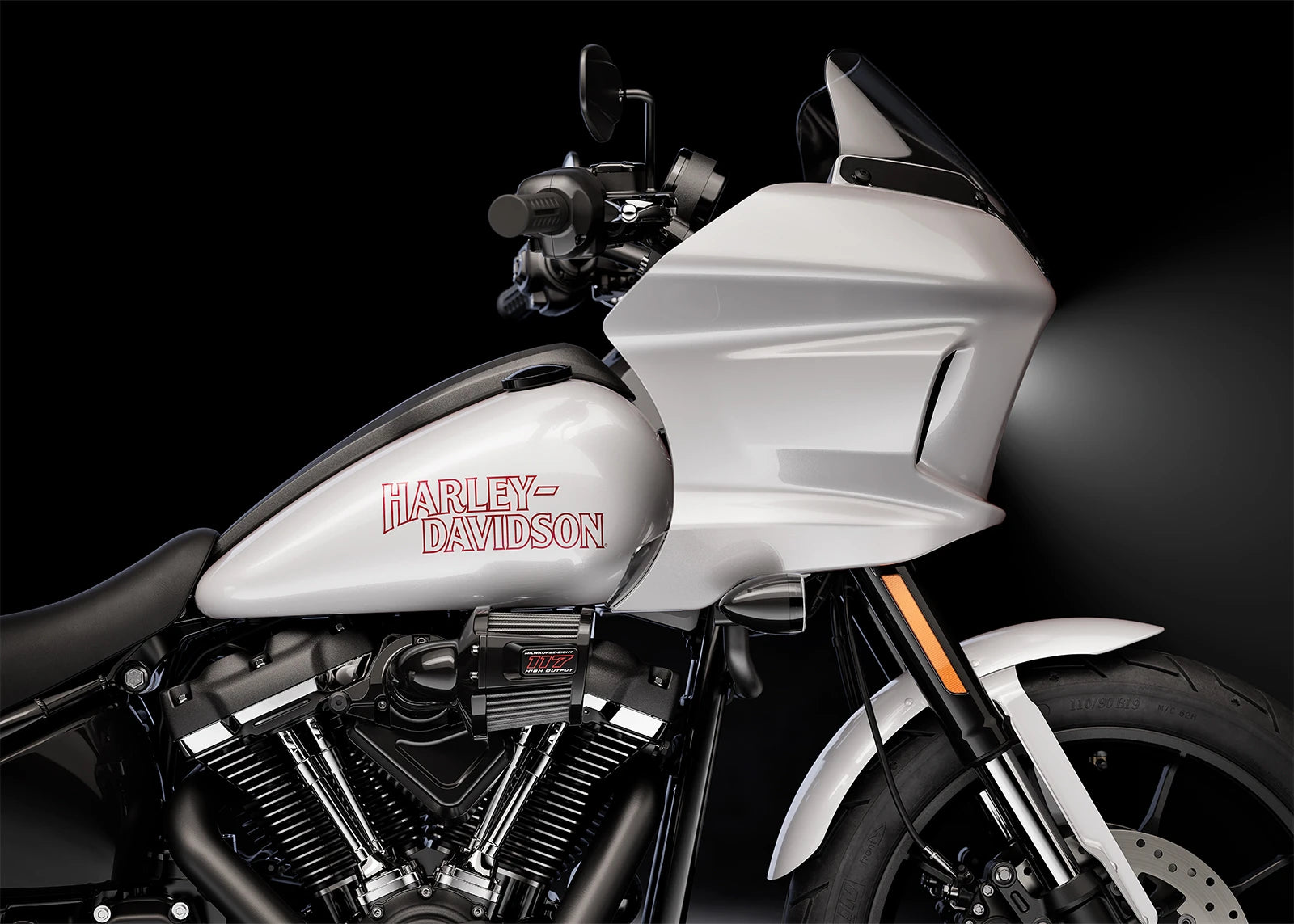

Iconic FXRT-Inspired Fairing
Inspired by West Coast customizers who embrace the classic FXRT fairing, the lightweight, frame-mounted fairing on the Low Rider ST is developed using computational fluid dynamics (CFD) to improve airflow and help reduce wind fatigue for a more comfortable, confident ride.

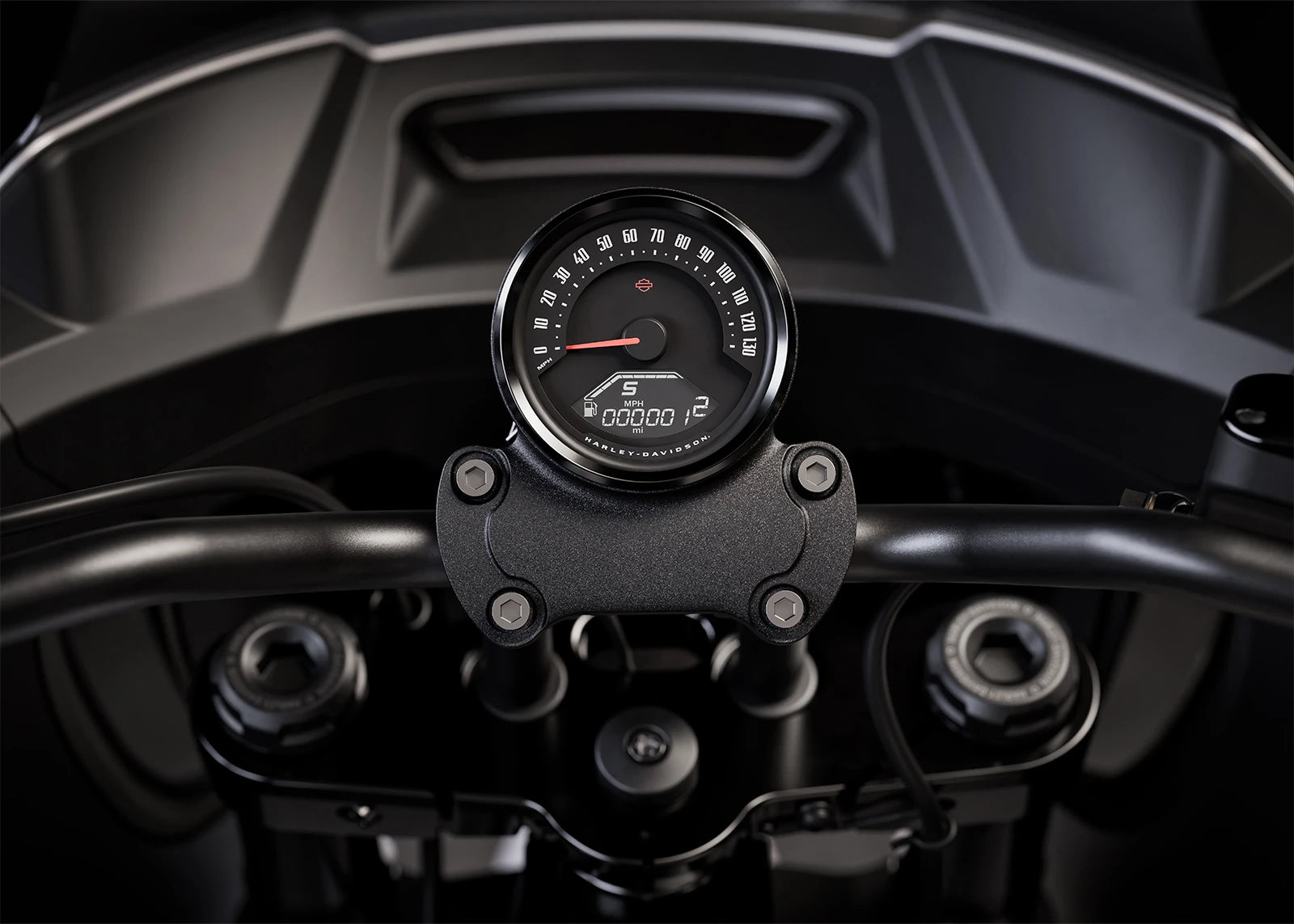

Selectable Ride Modes + 102 mm Display
A 102 mm analog speedo with a built-in digital display puts essential ride data front and center. Three selectable Ride Modes (Road, Rain, and Sport) let you change the bike’s behavior to match how and where you ride.

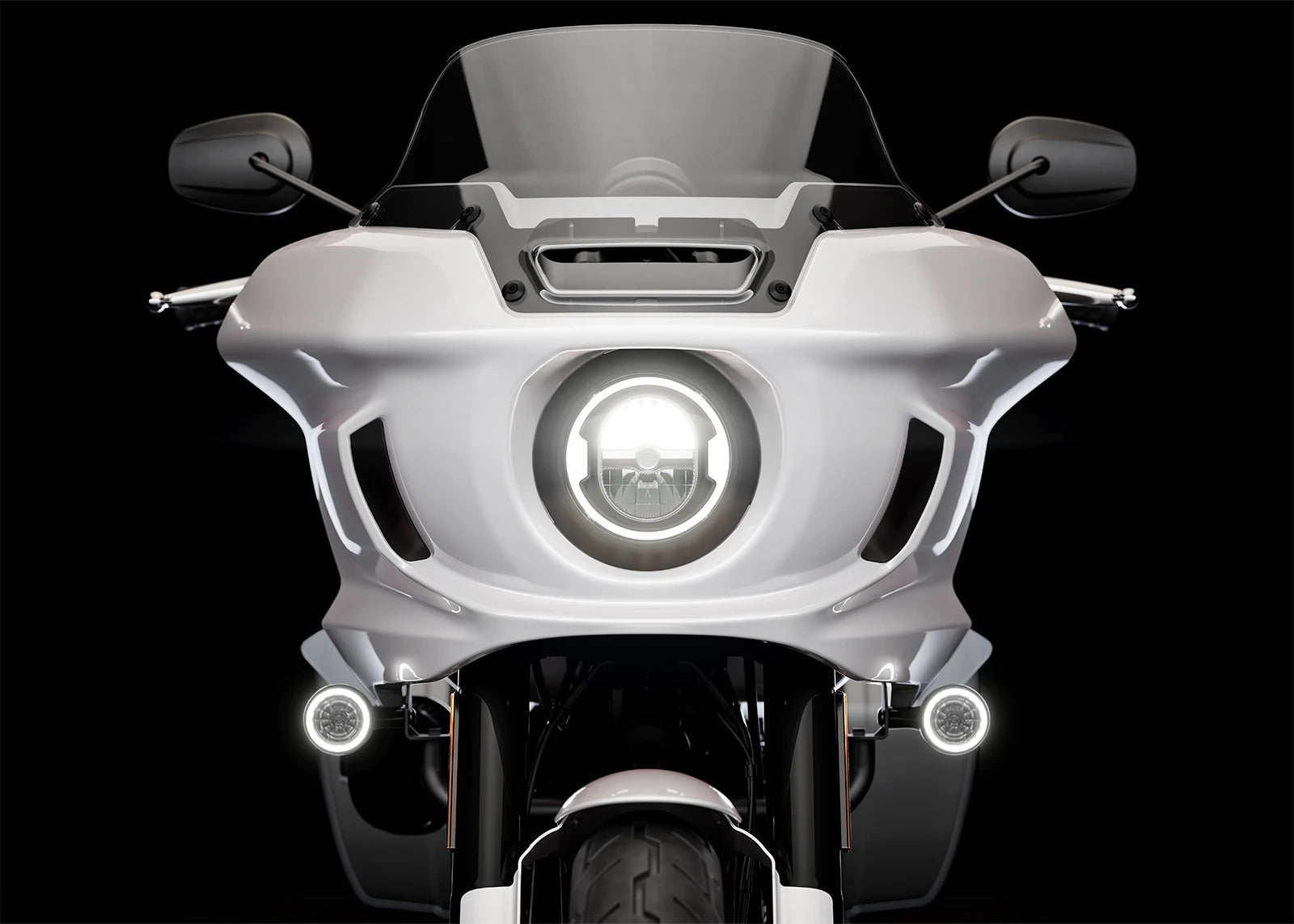

All-LED Lighting from Every Angle
A 146 mm headlight, sculpted taillight, and LED signals light up the road and keep you visible from every angle.
“It’s fast, it’s loud, and it handles better than anything I’ve ever ridden. What more can you say?”
Experience Life on the Limiter.
A Milwaukee-Eight 117 High Output motor, a tuned 2-into-1 exhaust, and ride-dialed suspension make the 2026 Low Rider ST feel built for life on the limiter. Add in ride modes, cruise control, and the unmistakable FXRT-inspired fairing, and you’ve got old-school attitude with new-school tech, all engineered to meet every limit scream past it.
RIDER SAFETY ENHANCEMENTS
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
ANTI-LOCK BREAKE SYSTEM (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
TRACTION CONTROL SYSTEM (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
TIRE PRESSURE MONITORING SYSTEM (TPMS)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
CORNERING ENHANCING ANTI-LOCK BRAKE SYSTEM (C-ABS)
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
CORNERING ENHANCING TRACTION CONTROL SYSTEM (C-TCS)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.

Technical Specifications
|
|
|
|
DIMENSIONS |
|
|
Length |
2,360 mm |
|
Width |
890 mm |
|
Seat Height, Unladen |
715 mm |
|
Ground Clearance |
145 mm |
|
Rake |
28 |
|
Trail |
145 mm |
|
Wheelbase |
1,615 mm |
|
Tire, Type |
Michelin™ Scorcher 31, front and rear |
|
Tires, Front Specification |
110/90B19,62H,BW |
|
Tires, Rear Specification |
180/70B16,77H,BW |
|
Fuel Capacity |
18.9 l |
|
Oil Capacity (w/filter) |
4.7 l |
|
Weight, In Running Order |
323 kg |
|
Luggage Capacity -Volume |
0.056 m3 |
|
|
|
|
ENGINE |
|
|
Engine |
Milwaukee-Eight™ 117 High Output |
|
Bore |
103.5 mm |
|
Stroke |
Stroke |
|
Displacement |
1,923 cc |
|
Compression Ratio |
10.3:1 |
|
Fuel System |
Electronic Sequential Port Fuel Injection (ESPFI) |
|
Exhaust |
2-into-1; catalyst in header |
|
|
|
|
PEERFORMANCE |
|
|
Engine Torque Testing Method |
EC 134/2014 |
|
Engine Torque |
173 Nm |
|
Engine Torque (rpm) |
4000 |
|
Horsepower |
114 HP / 85 kW @ 5020 rpm |
|
Lean Angle, Right (deg.) |
31.3 |
|
Lean Angle, Left (deg.) |
31.3 |
|
Fuel Economy Testing Method |
EU 134/2014 |
|
Fuel Economy |
5.5 l/100 km |
|
CO2 Emissions Testing Method |
EU 134/2014 |
|
CO2 Emissions |
128 g/km CO2 |
|
|
|
|
DRIVE TRAIN |
|
|
Primary Drive |
Chain, 34/46 |
|
Gear Ratios (overall) 1st |
9.311 |
|
Gear Ratios (overall) 2nd |
6.454 |
|
Gear Ratios (overall) 3rd |
4.793 |
|
Gear Ratios (overall) 4th |
3.882 |
|
Gear Ratios (overall) 5th |
3.307 |
|
Gear Ratios (overall) 6th |
2.79 |
|
|
|
|
CHASSIS |
|
|
Front Fork |
Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring |
|
Rear Shocks |

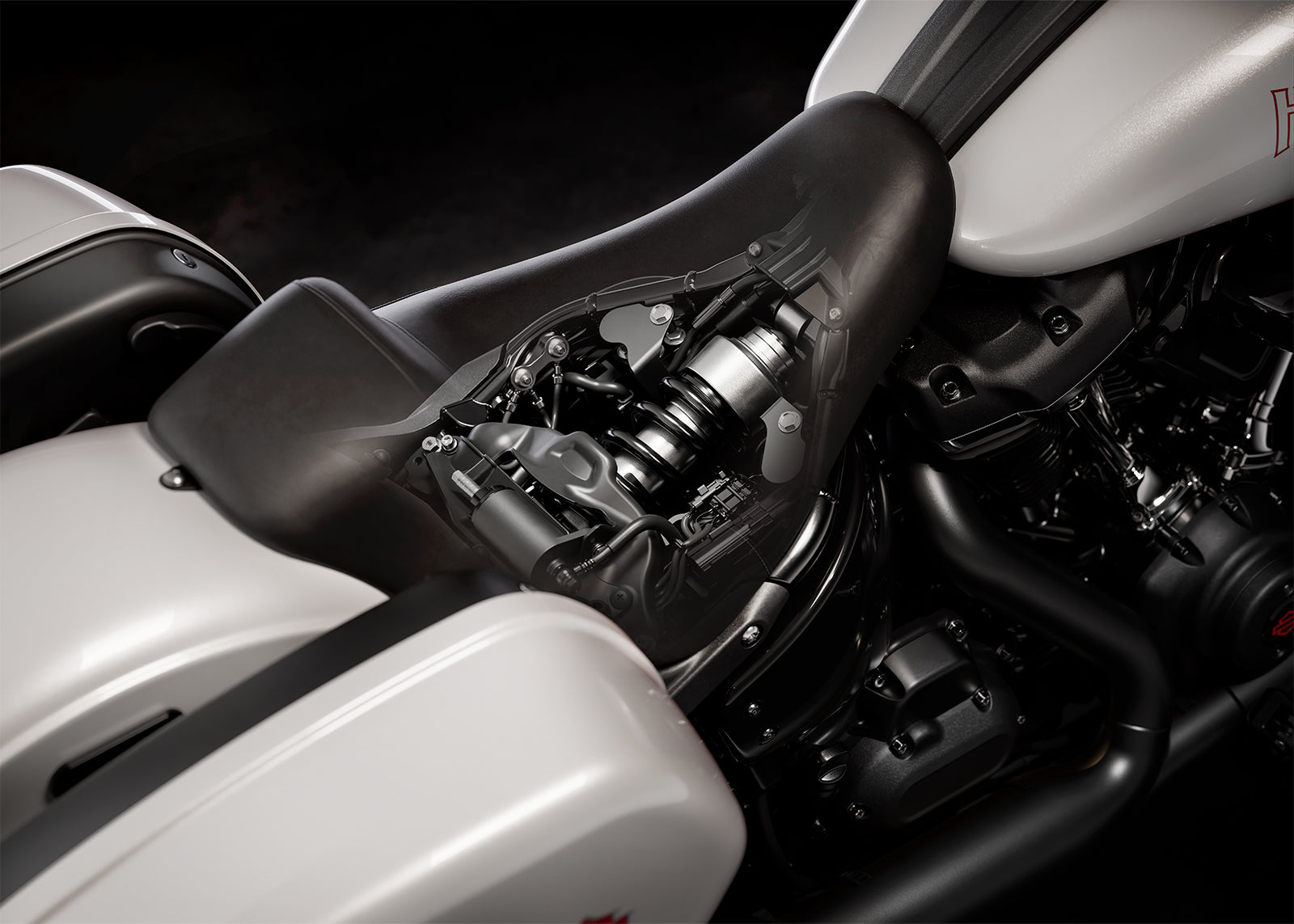

Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment |
|
Wheels, Optional Style Type |
Black, Radiate Cast Aluminum |
|
Wheels, Front Type |
Chrome, Radiate Cast Aluminum |
|
Wheels, Rear Type |
Chrome, Radiate Cast Aluminum |
|
Brakes, Caliper Type |
4-piston fixed front and 2-piston floating rear |
|
Brakes, Rotor Type |
Front and rear black, Split 7-spoke floating rotors |
|
|
|
|
ELECTRIC |
|
|
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals |
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: LED Buffett tail lamp; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
|
Gauges |
102 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication |
|
|
|
