Harley-Davidson
HARLEY-DAVIDSON 2026 SPORTSTER S
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.
The 2026 Sportster S is what happens when you take a legend, strip it to muscle and intent, and tune it to go harder, lean sharper, and keep pulling long after you should have called it a day.
AT A GLANCE
What Came Before, Refined for Now
With 121 HP from the liquid-cooled Revolution Max™ 1250T motor, a wide front tire, 2-1-2 scrambler-style exhaust, and suspension tuned to optimize performance and rider comfort, the 2026 Sportster S reimagines classic styling with sharp, modern intent. Inspired by the iconic Sportster Forty-Eight, it channels Harley-Davidson heritage into a bike built to go harder, handle sharper, and look better doing it.
Tech Specs
|
121 HP Horsepower |
125 Nm Engine Torque
|
|
765 mm Seat Height, Unladen |
228 kg Weight, In Running Order
|
“I don’t know what I was expecting from the Sportster S, but I’ve never had something keep me excited for my morning commute the way this bike does.”
This Bike Was Built to Send It.

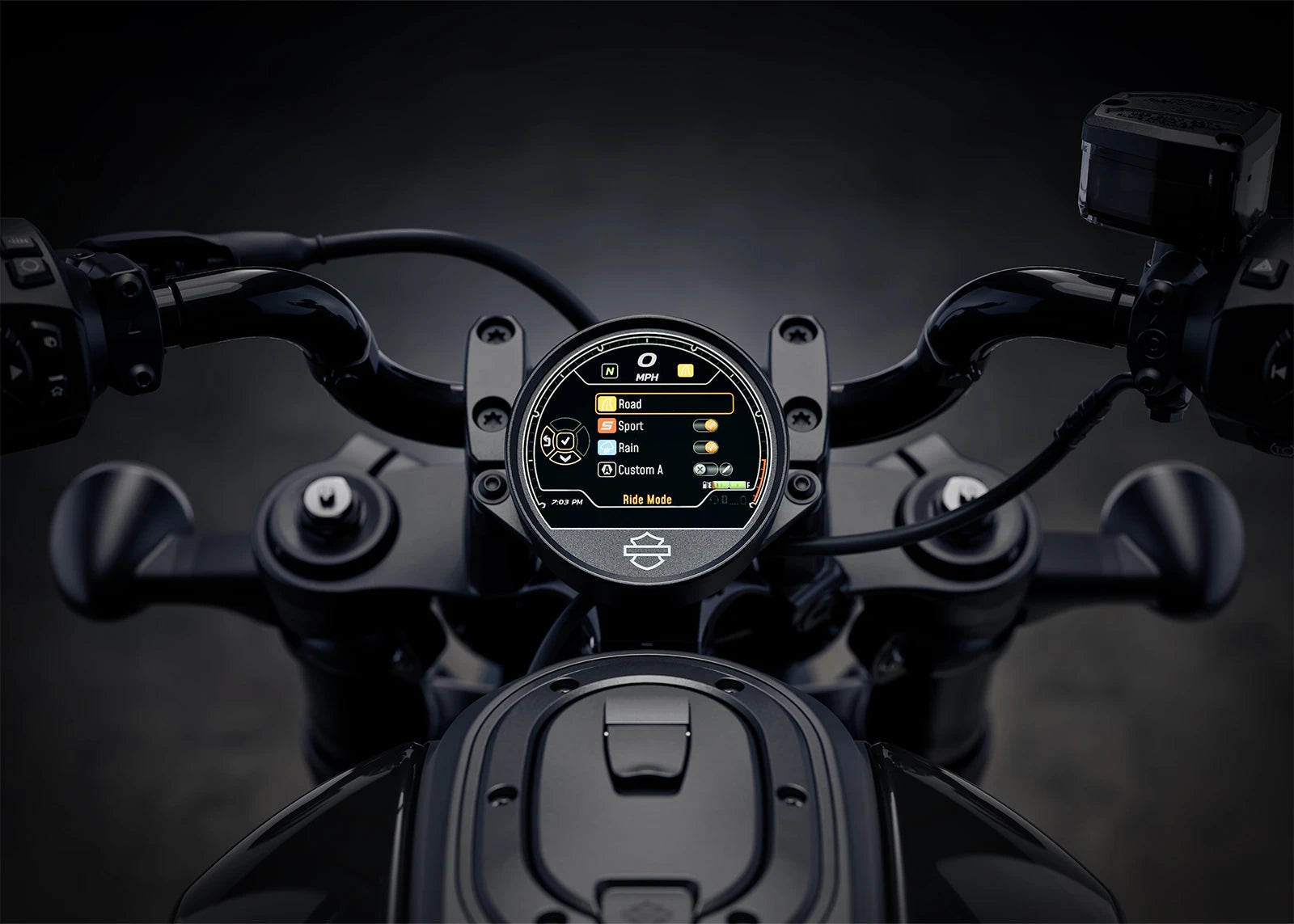

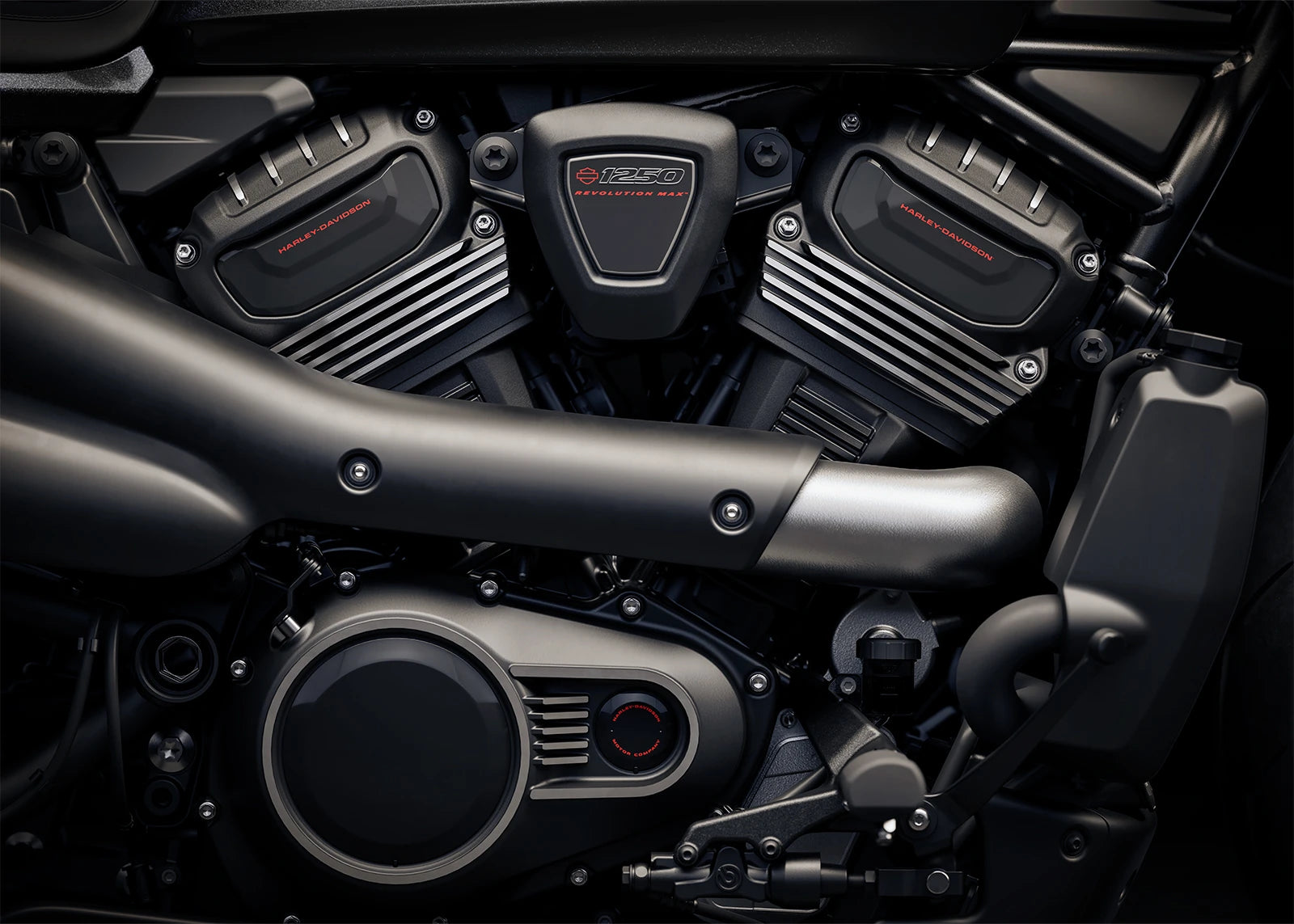

With a Revolution Max 1250T motor, premium suspension, and a high-mount exhaust that howls, the 2026 Sportster S trades restraint for raw output. A fat front tire, blacked-out finishes, and TFT display round out a look that punches first, and tech that keeps it planted when you rip it.
RIDER SAFETY ENHANCEMENTS
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
Anti-lock Brake System (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
Wheel Lift Mitigation
A system that helps keep both wheels grounded during intense riding. It has two functions: front wheel lift mitigation manages torque to prevent the front wheel from lifting during acceleration, while rear wheel lift mitigation controls brake pressure to keep the rear wheel down during hard braking, helping to ensure a stable and controlled ride.
Cornering Enhanced Anti-lock Brake System (C-ABS)
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
Cornering Enhanced Traction Control System (C-TCS)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
Cornering Drag-Torque Slip Control System (C-DSCS)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.
Enhanced Lift Mitigation
Does the same job as regular wheel lift control but with a bit more finesse. It taps into the bike’s Inertial Measurement Unit (IMU) to fine-tune its control. That means more precise control when you need it most.

Technical Specifications
|
|
|
|
Dimensions |
|
|
Length |
2,270 mm |
|
Width |
840 mm |
|
Seat Height, Unladen |
765 mm |
|
Ground Clearance |
90 mm |
|
Rake |
30 |
|
Trail |
148 mm |
|
Wheelbase |
1,520 mm |
|
Tire, Type |
Dunlop™ Harley-Davidson Series, radial |
|
Tires, Front Specification |
160/70R17 73V |
|
Tires, Rear Specification |
180/70R16 77V |
|
Fuel Capacity |
11.7 l |
|
Oil Capacity (w/filter) |
4.5 l |
|
Weight, In Running Order |
228 kg |
|
|
|
|
Engine |
|
|
Engine+ |
Revolution™ Max 1250T |
|
Bore |
105 mm |
|
Stroke |
72.3 mm |
|
Displacement |
1,252 cc |
|
Compression Ratio |
12.0:1 |
|
Fuel System+ |
Electronic Sequential Port Fuel Injection (ESPFI) |
|
Exhaust |
2-into-1-into-2; catalyst in muffler |
|
|
|
|
Performance |
|
|
Engine Torque Testing Method |
EC 134/2014 |
|
Engine Torque+ |
125 Nm |
|
Engine Torque (rpm) |
6000 |
|
Horsepower |
121 HP / 90 kW @ 7500 rpm |
|
Lean Angle, Right (deg.) |
35 |
|
Lean Angle, Left (deg.) |
35 |
|
Fuel Economy Testing Method |
EU 134/2014 |
|
Fuel Economy+ |
5.1 l/100 km |
|
CO2 Emissions Testing Method |
EU 134/2014 |
|
CO2 Emissions |
126 g/km CO2 |
|
|
|
|
Drive Train |
|
|
Primary Drive |
Gear, 49/89 ratio |
|
Gear Ratios (overall) 1st |
12.21 |
|
Gear Ratios (overall) 2nd |
9.022 |
|
Gear Ratios (overall) 3rd |
6.994 |
|
Gear Ratios (overall) 4th |
5.641 |
|
Gear Ratios (overall) 5th |
4.731 |
|
Gear Ratios (overall) 6th |
4.131 |
|
|
|
|
Chassis |
|
|
Front Fork |
43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps. |
|
Rear Shocks |
Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability |
|
Wheels, Front Type+ |
Aluminum cast, satin black |
|
Wheels, Rear Type+ |
Aluminum cast, satin black |
|
Brakes, Caliper Type |
Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper |
|
Brakes, Rotor Type |
Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor |
|
|
|
|
Electric |
|
|
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals |
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
|
Gauges |
102 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
|
|
|
|
Infotainment |
|
|
Screen Size |
102 mm |
|
Type |
Color TFT |
|
Headset Specifications (if equipped) |
Bluetooth |
|
Languages |
Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
|
Hands-free Mobile Phone - via Bluetooth |
Standard |
|
Voice Recognition Languages: Phone functions only |
Phone dependent |
|
Voice Recognition Languages: Tuner/Media/Navigation |
Phone dependent |
|
Rider/Passenger Intercom |
Headset function only |
|
Vehicle Information Screen (Air temperature, oil pressure and EITMS) |
TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
|
Text-to-Speech (TTS) Languages |
Phone dependent |
|
USB |
Charging and Instrument update, USB-C, 5V, 3A |
|
Bluetooth |
Phone/Media Supported |
