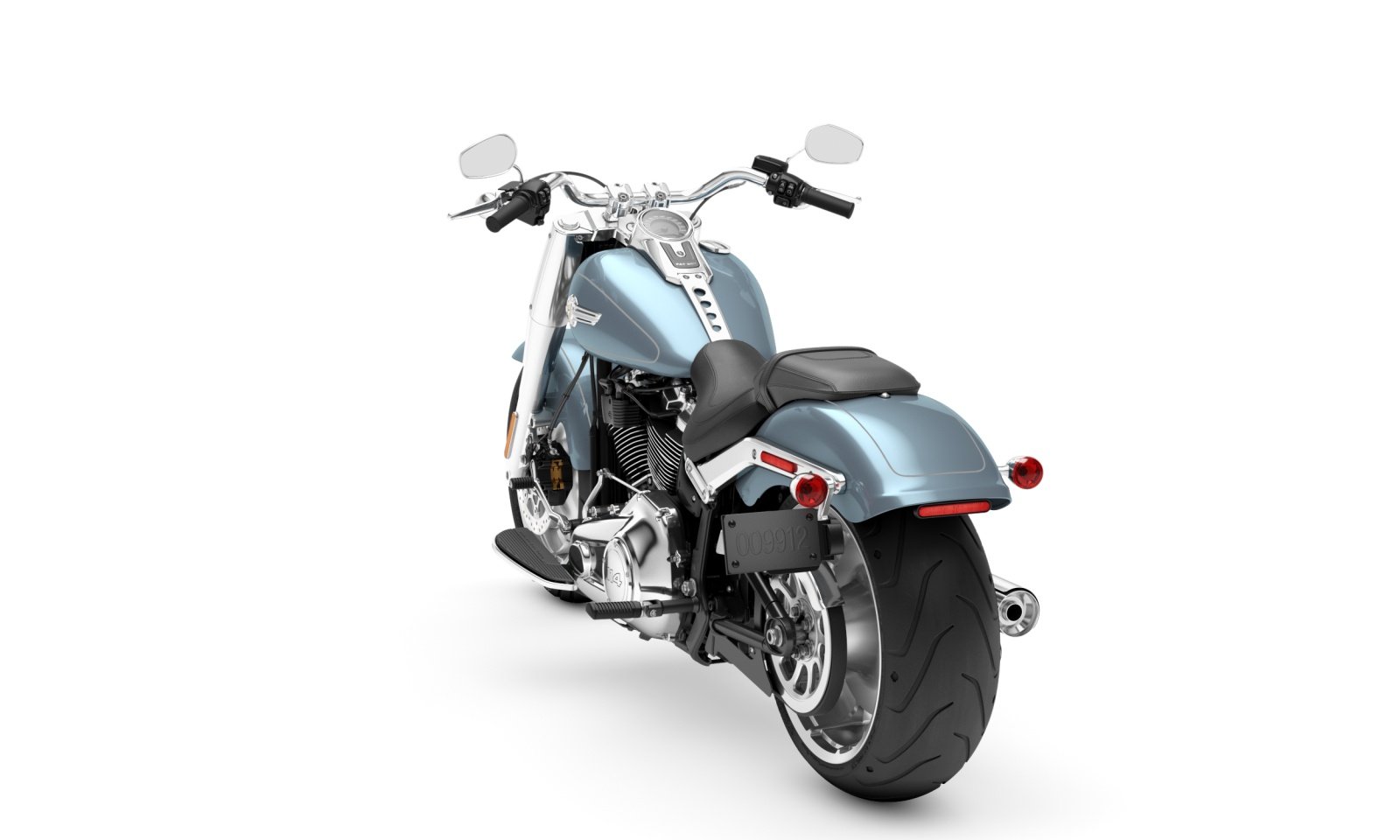

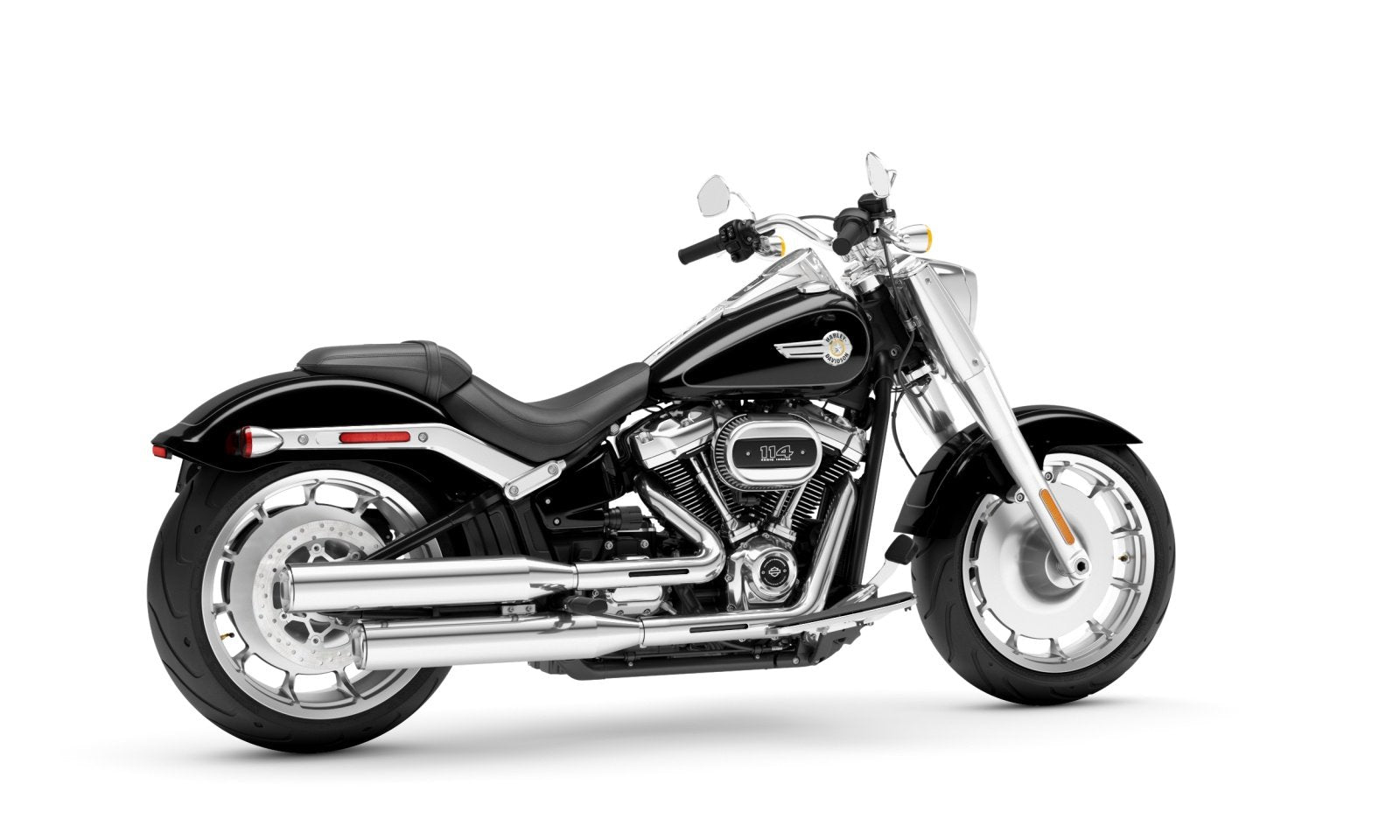

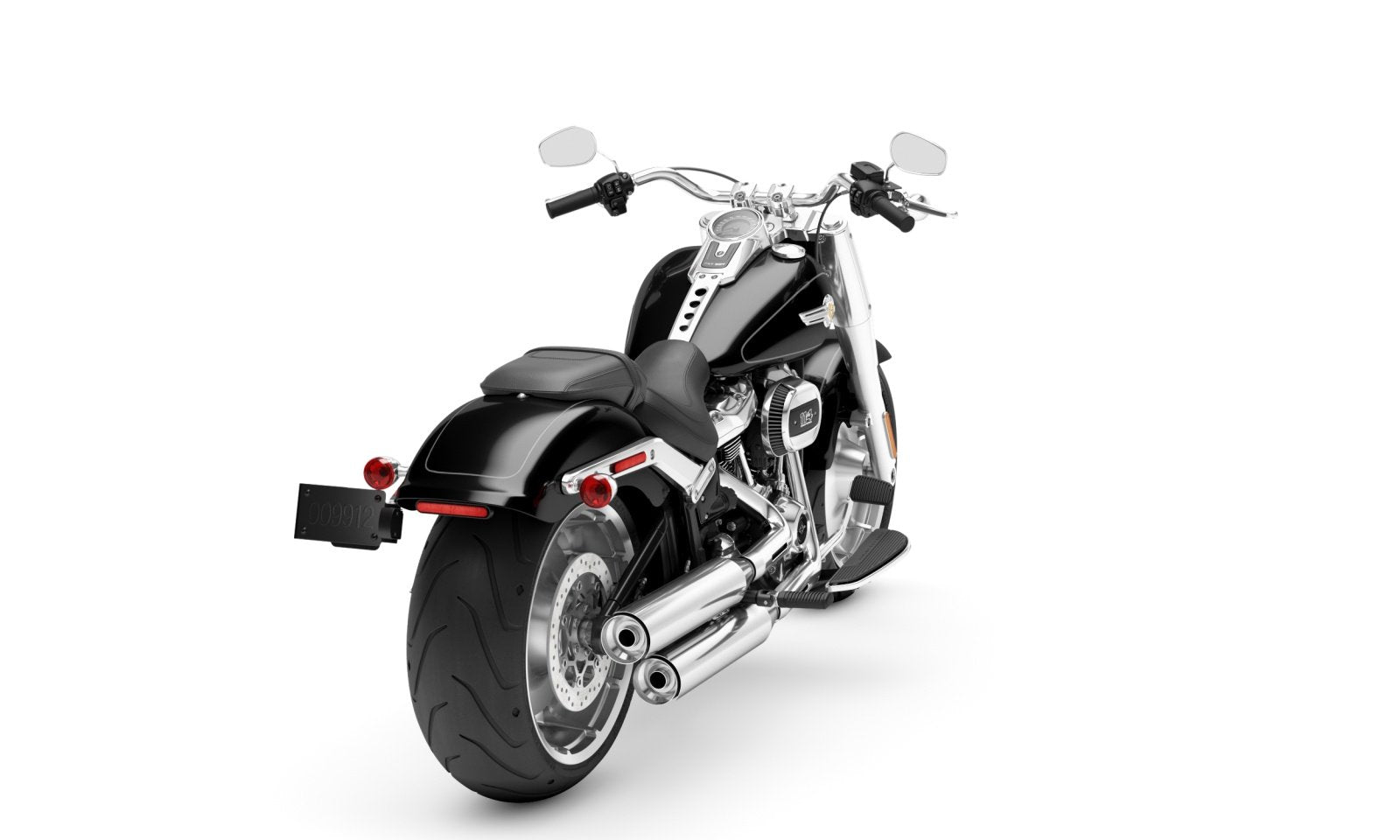

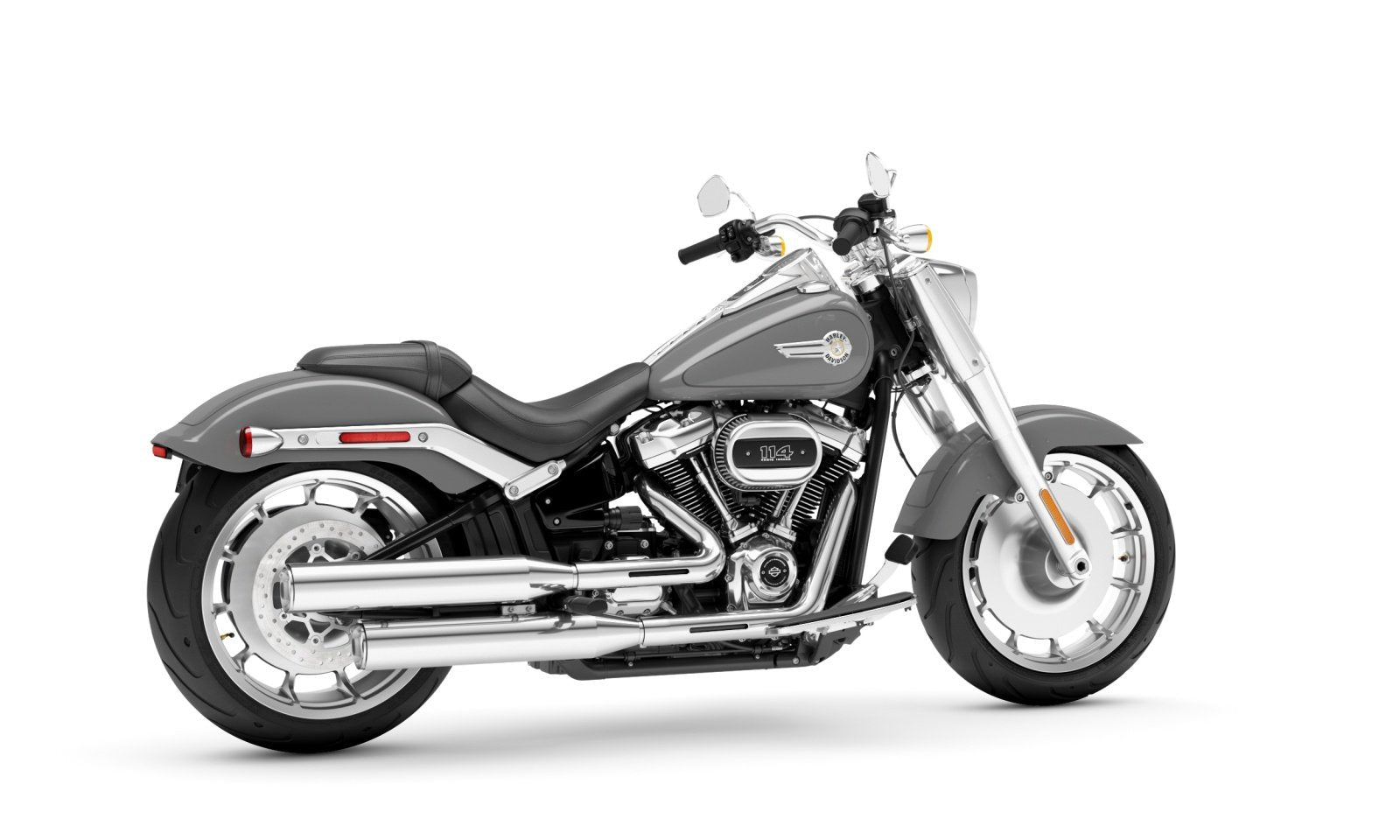

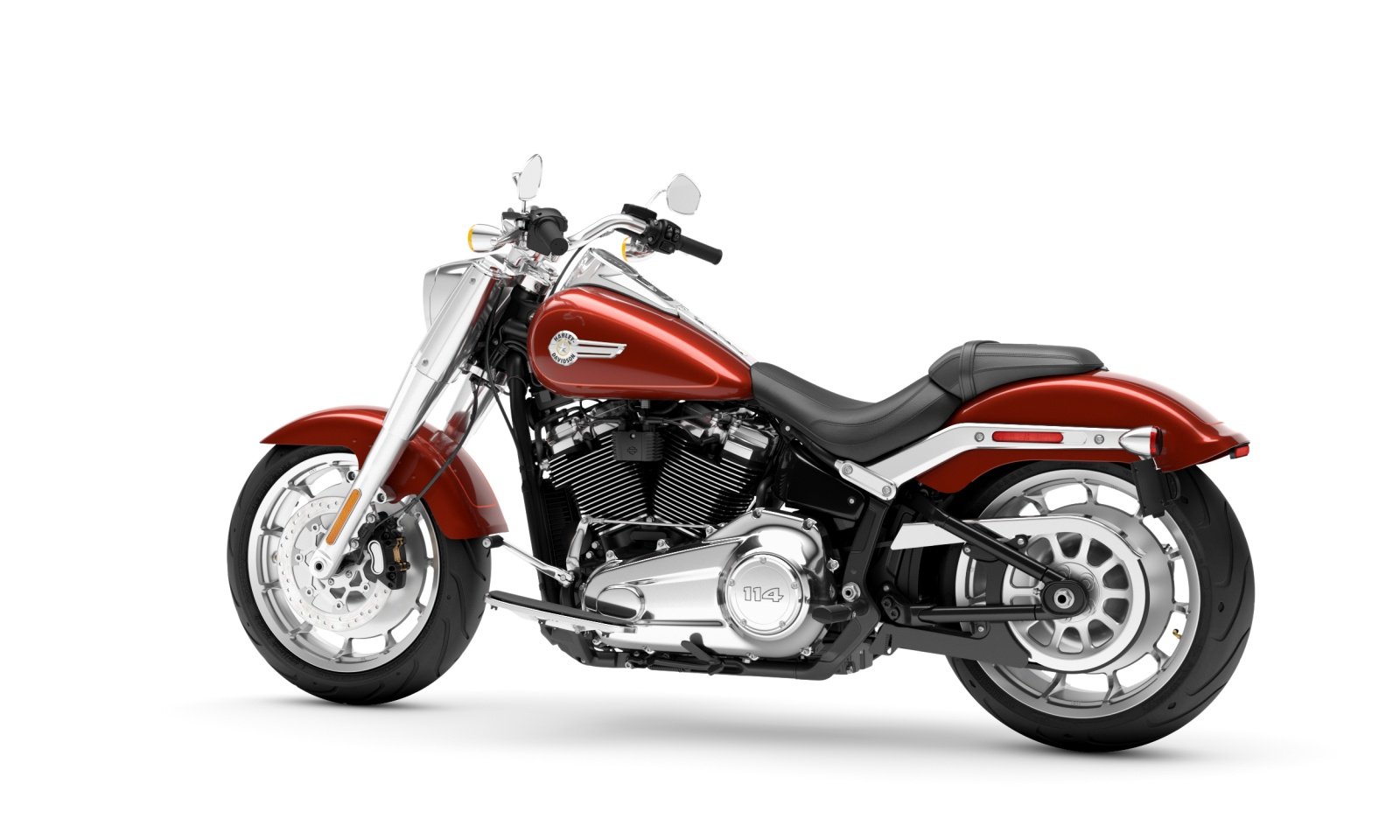

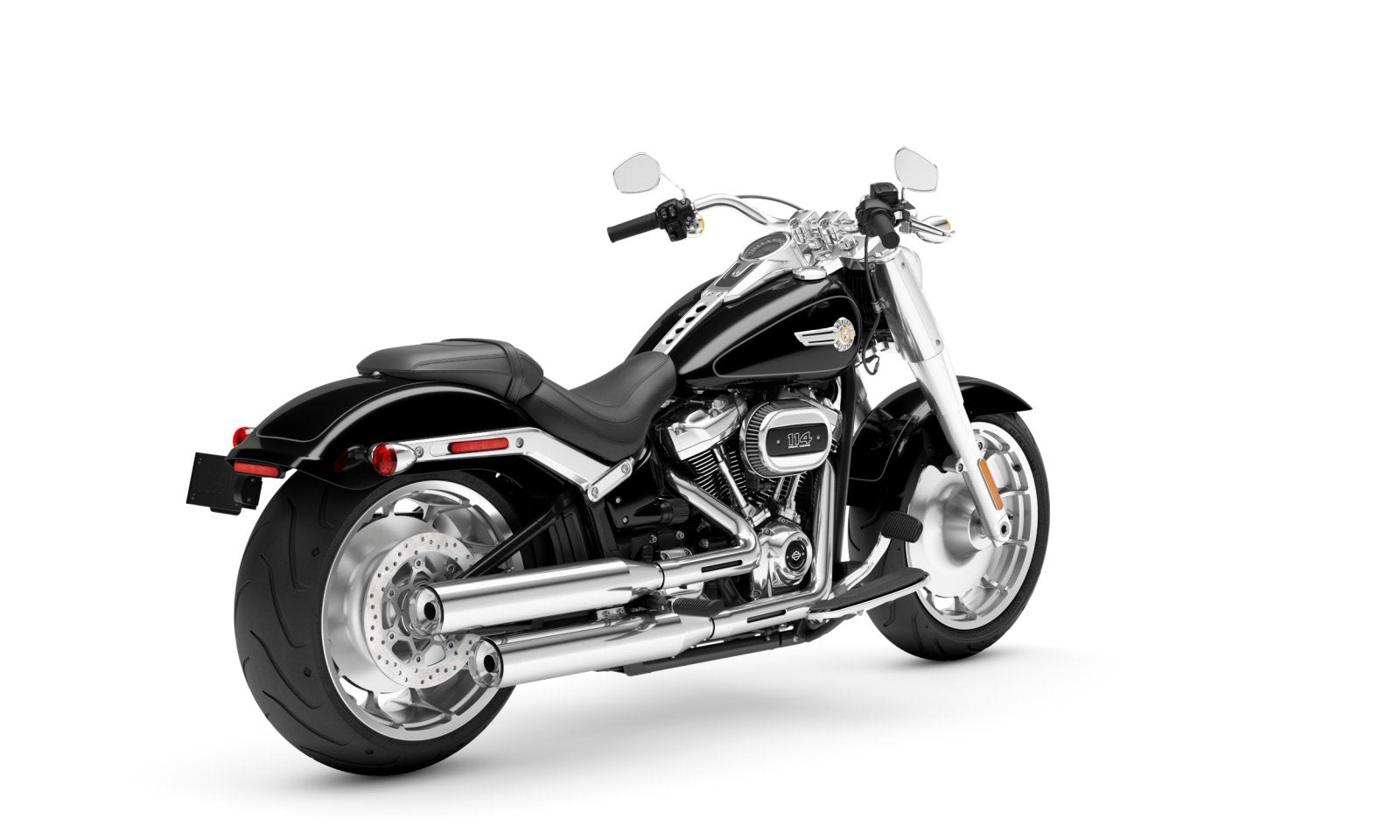

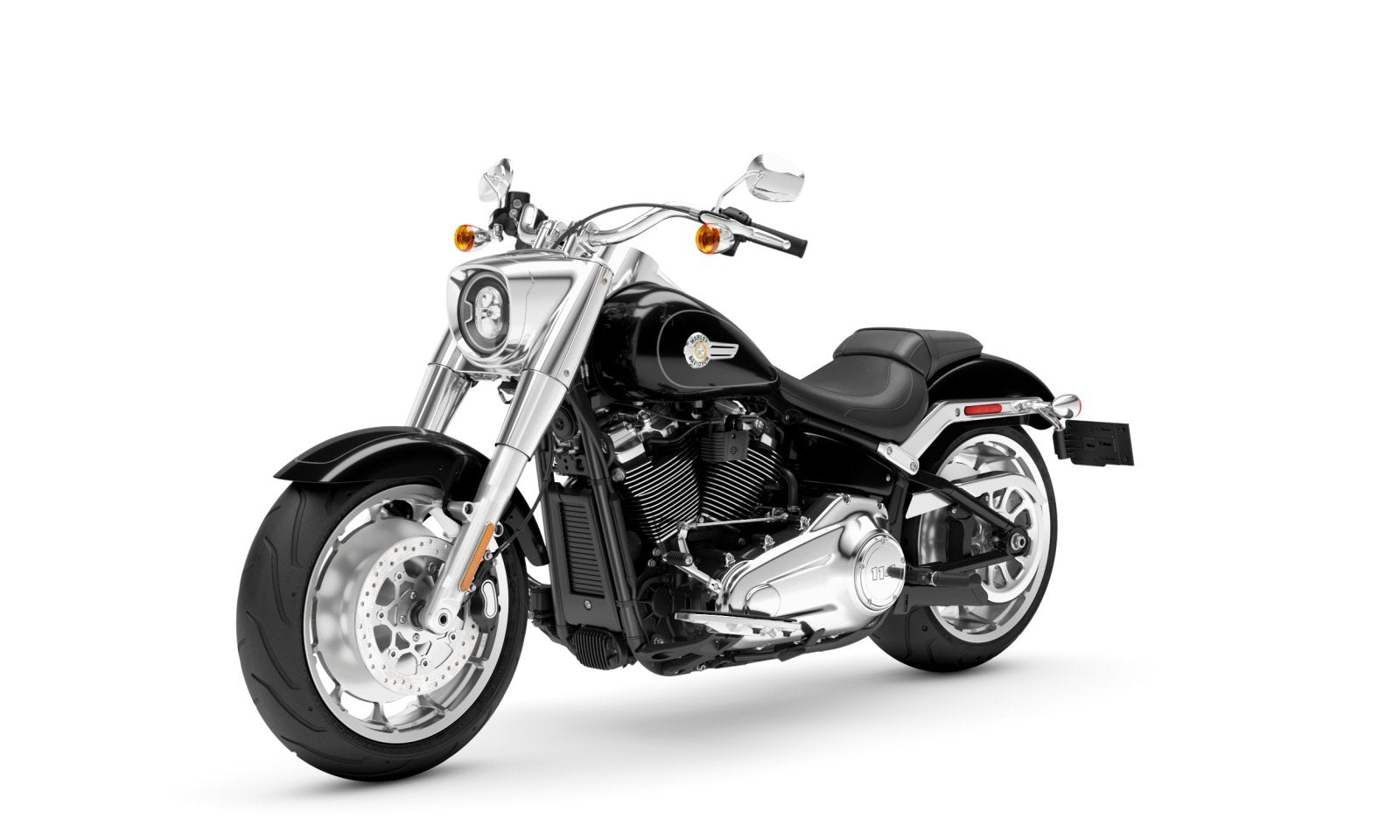

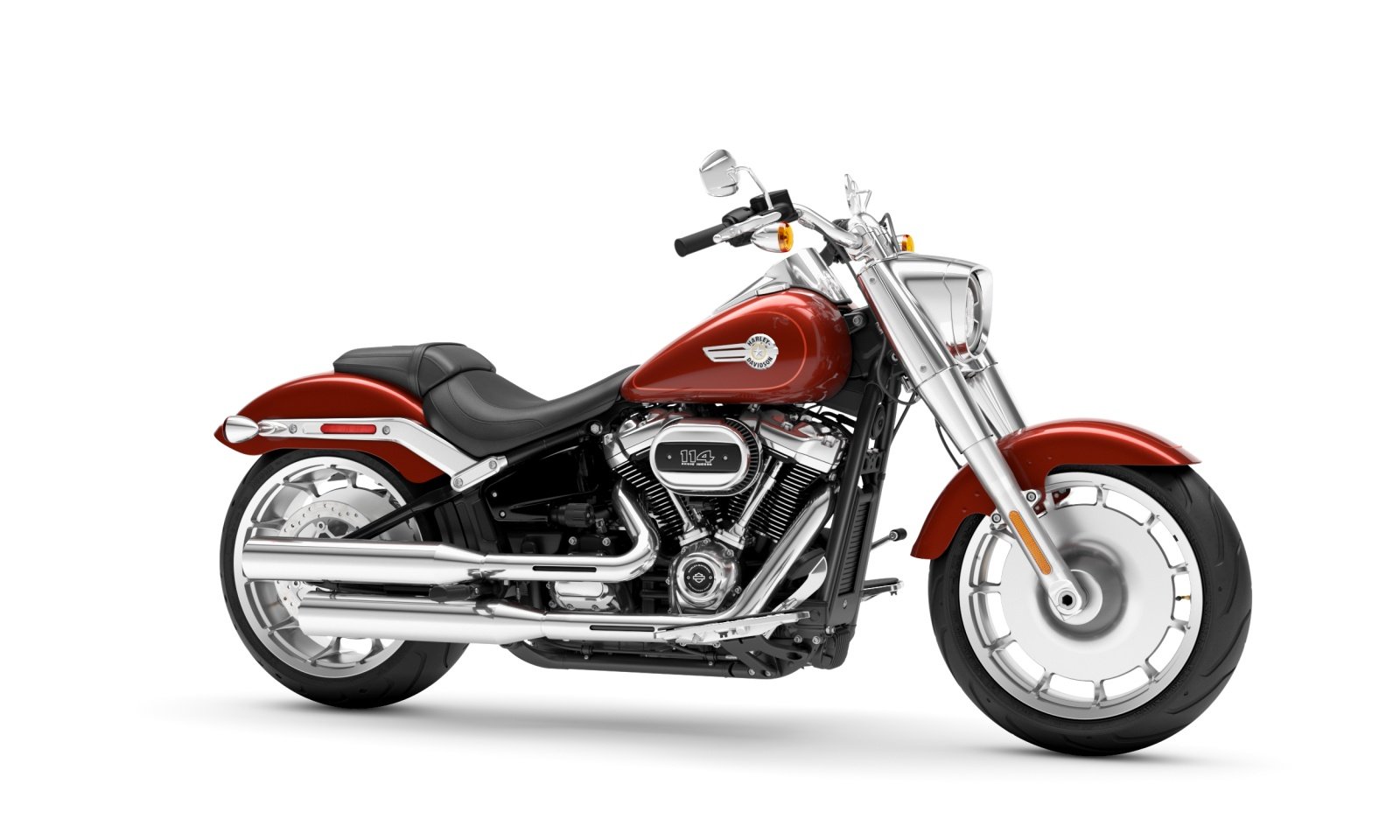

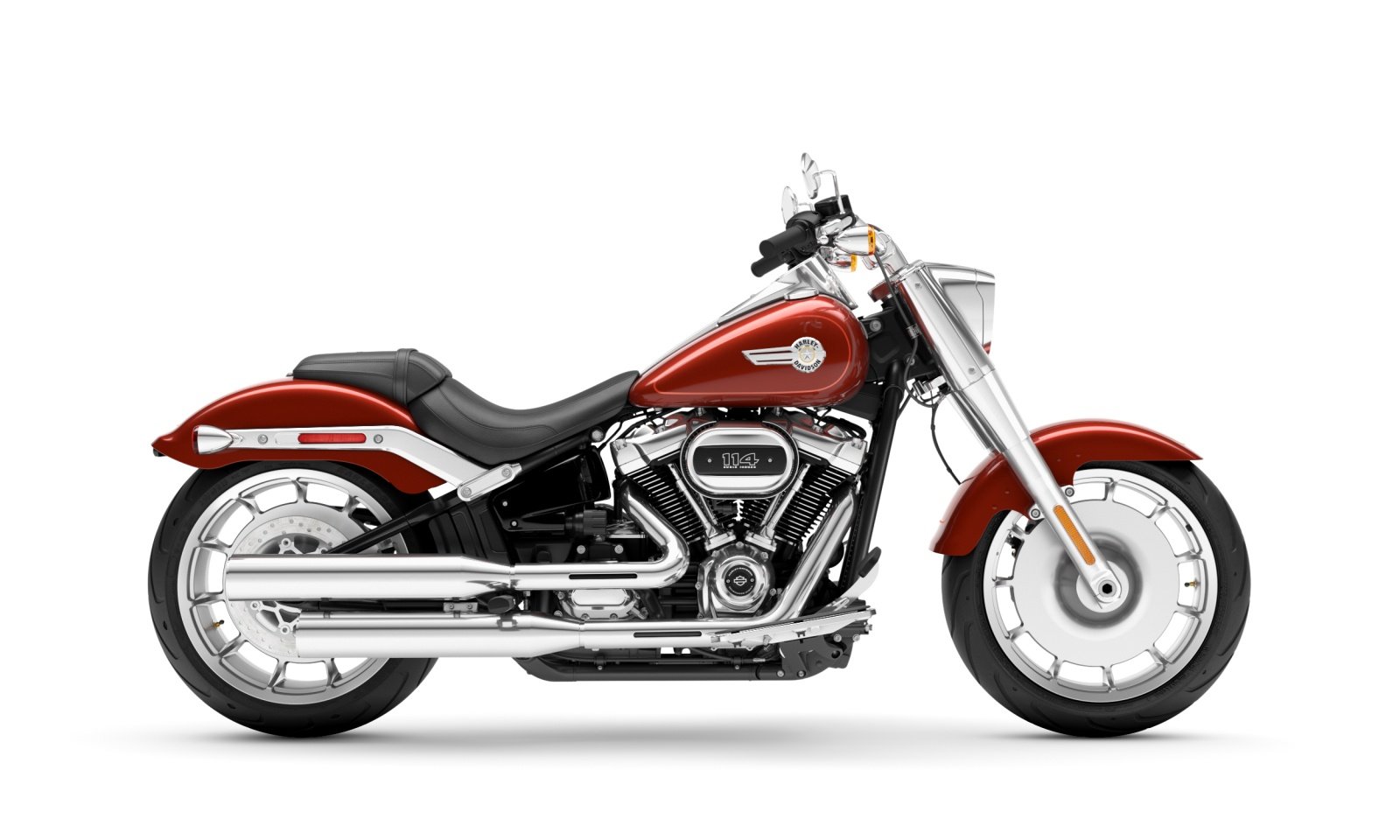

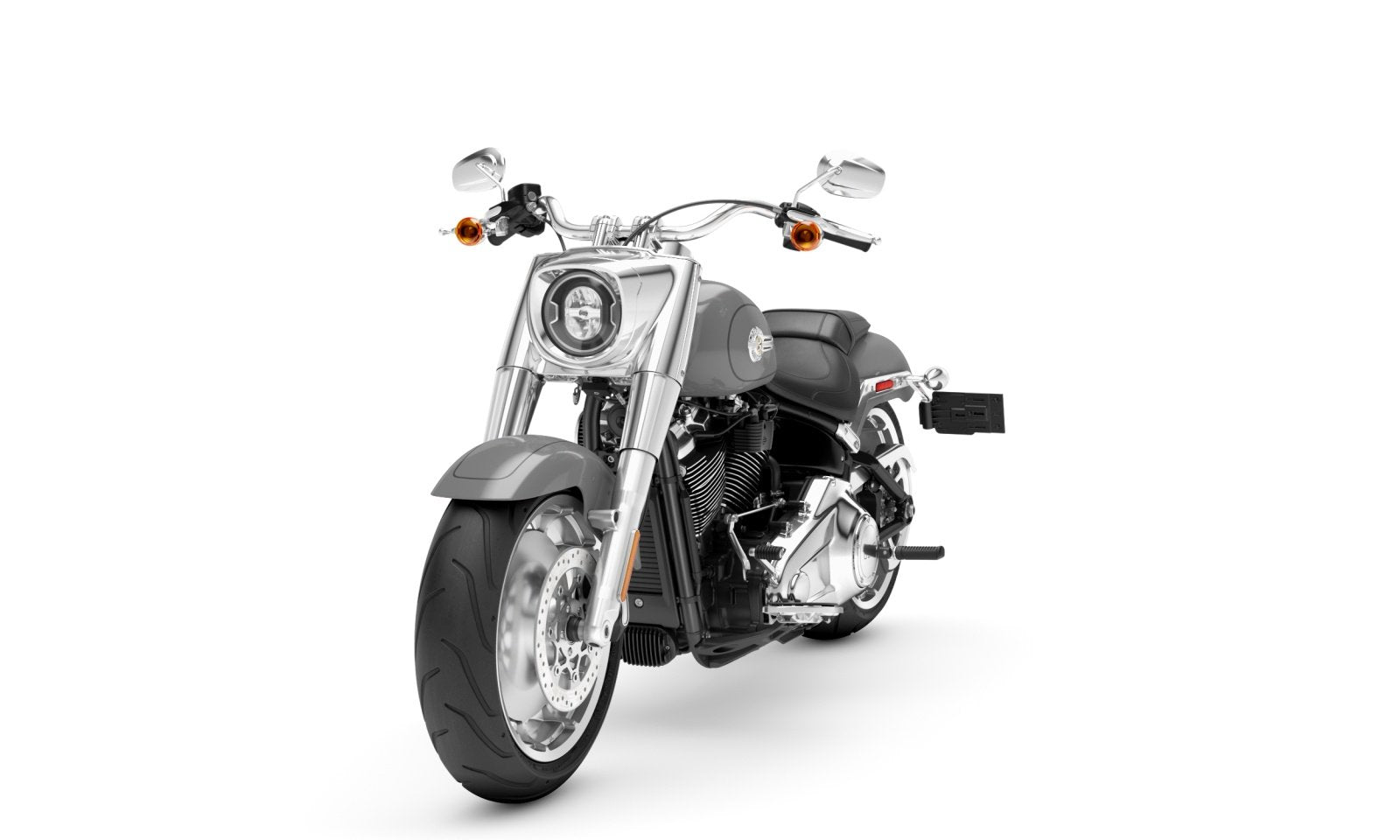

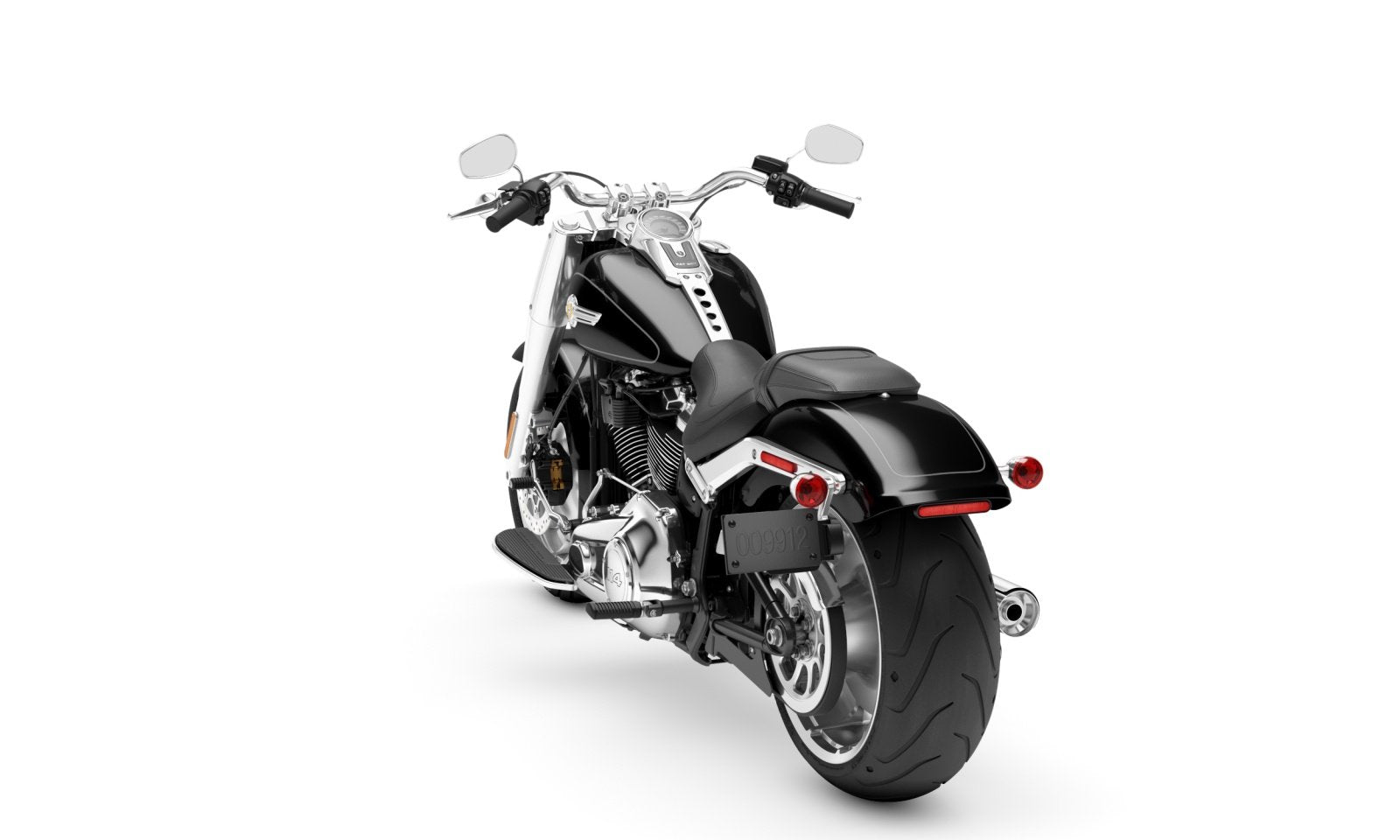

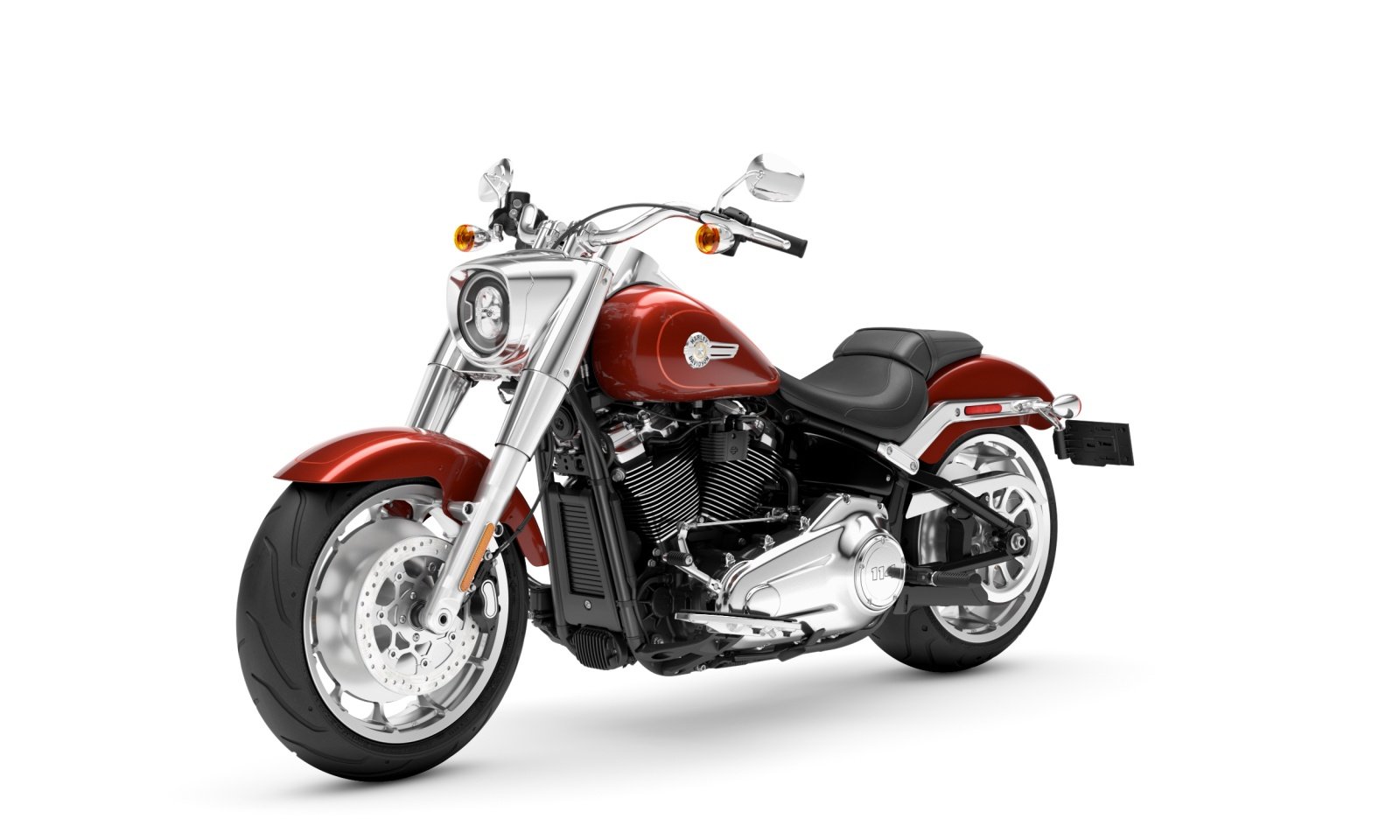

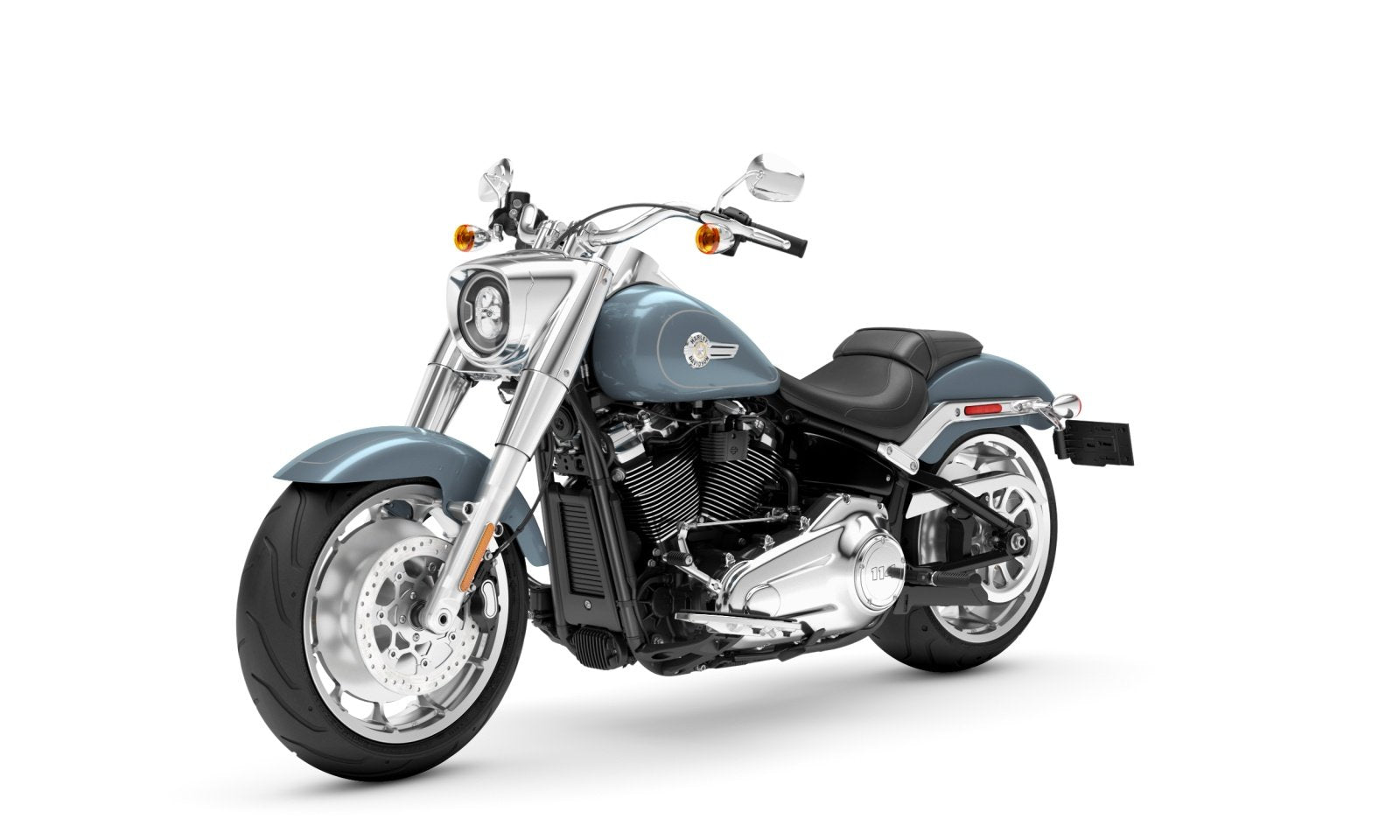

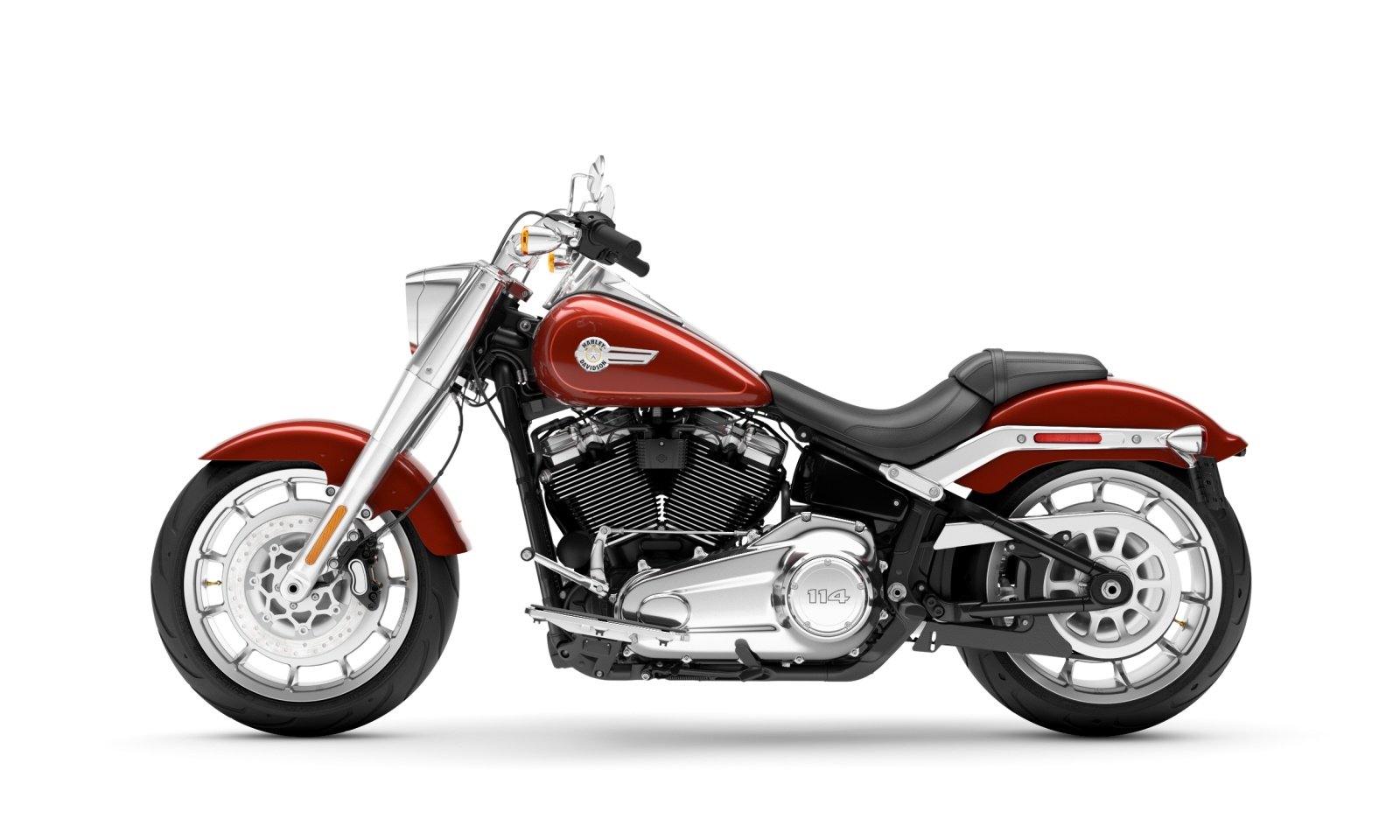

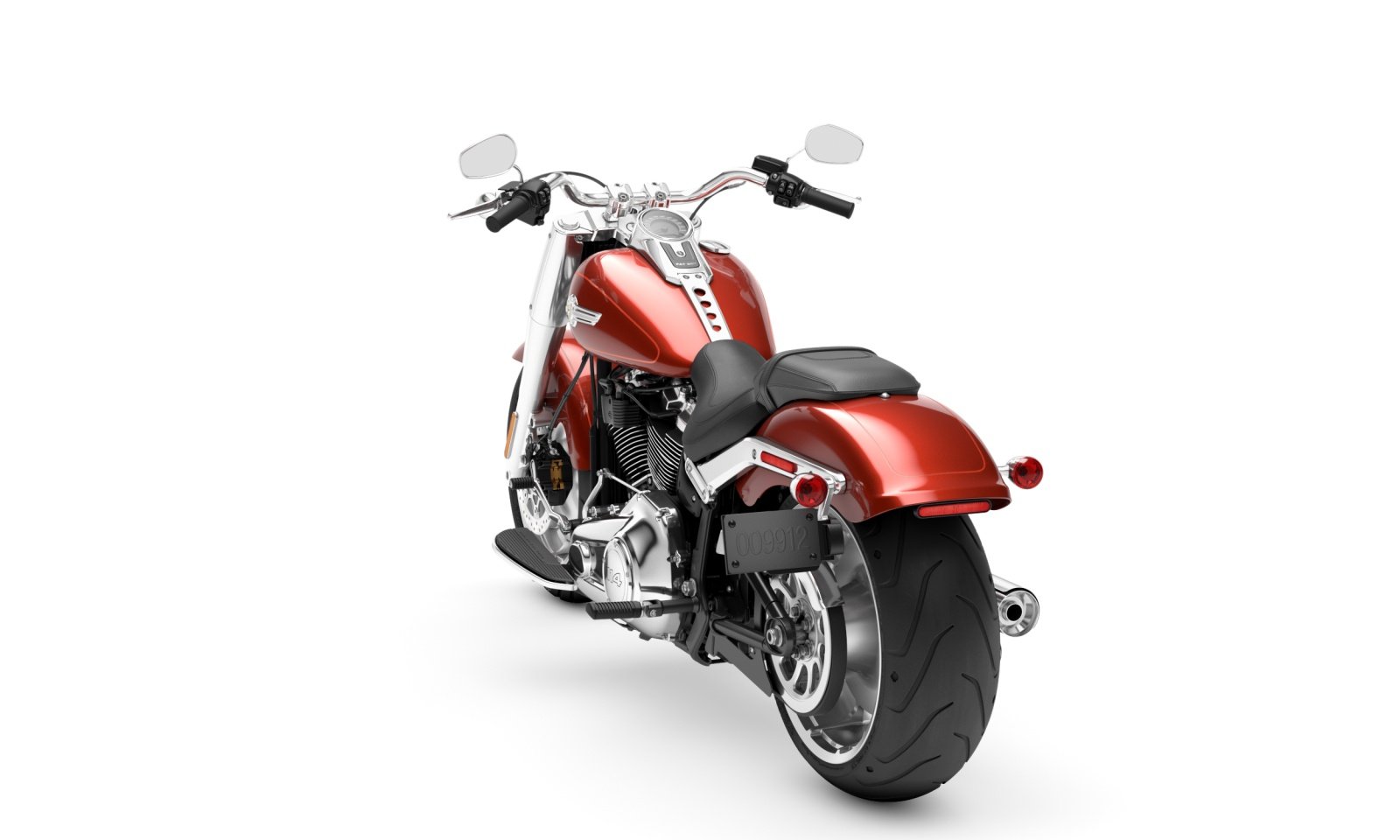

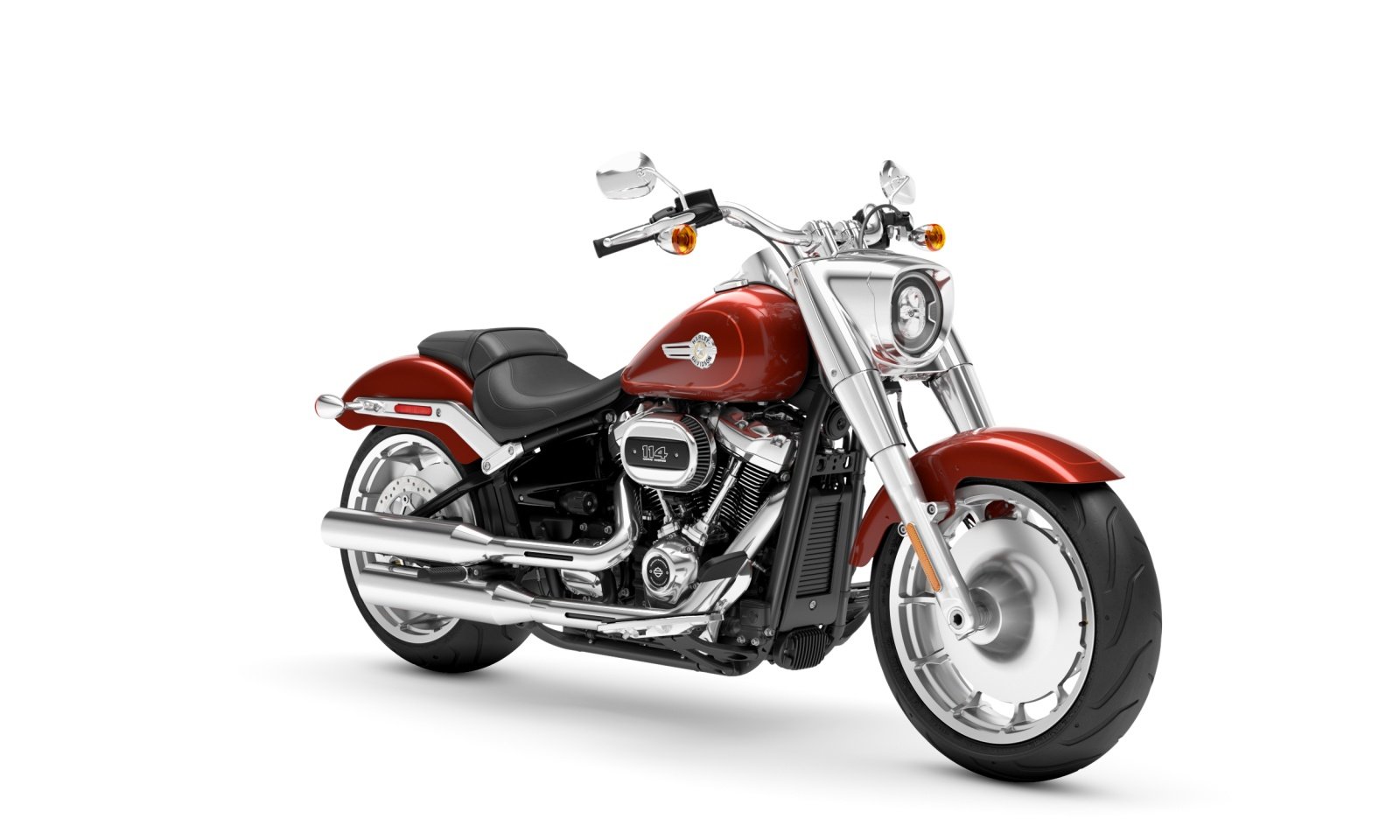

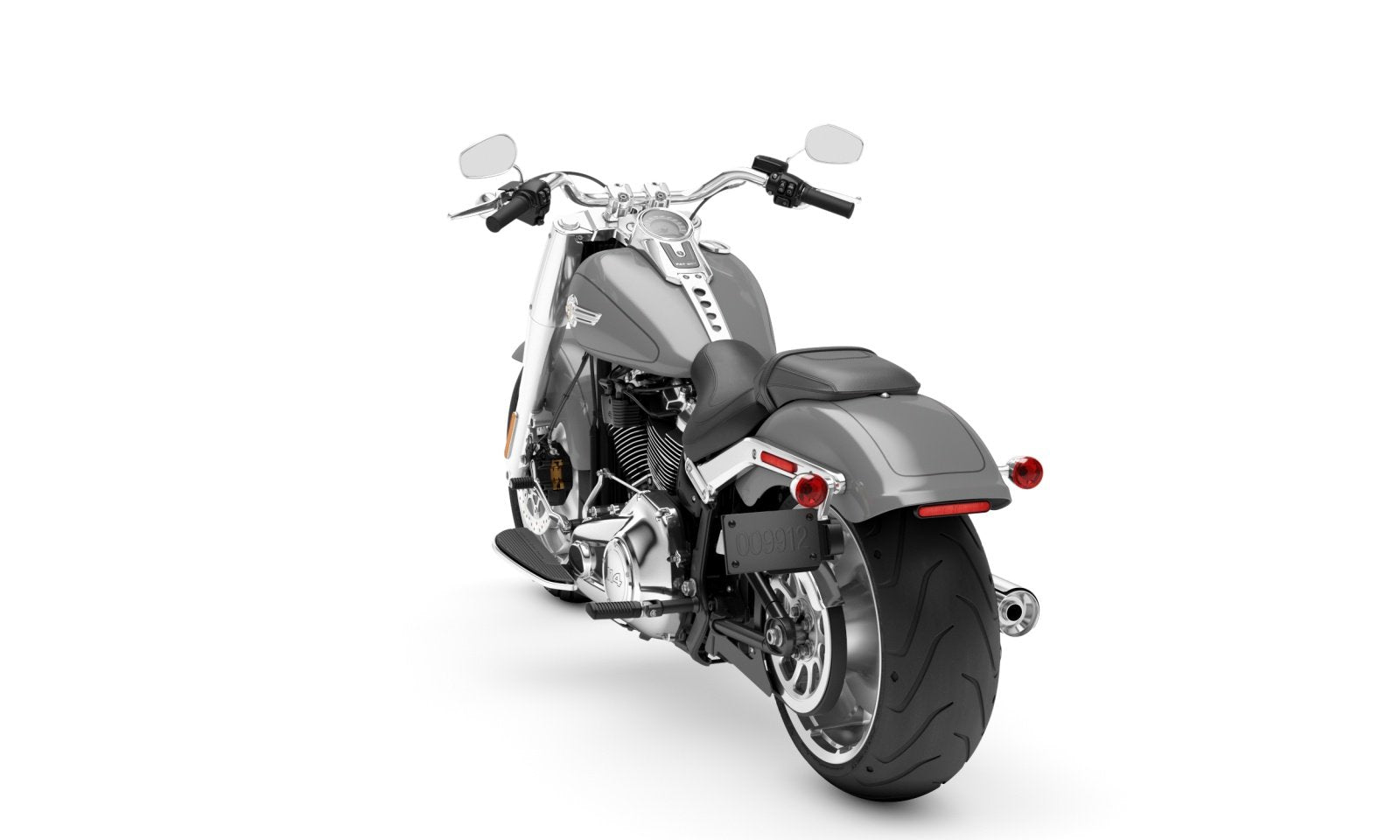

HARLEY-DAVIDSON Fat Boy™ 114 2024

Key Features
MILWAUKEE-EIGHT™ 114 ENGINE Loads of torque for on-demand power you can feel with each twist, accompanied by that evocative H-D sound.

HIGH-PERFORMANCE FRONT SUSPENSION Sophisticated suspension technology provides reduced weight with linear damping characteristics.

BRIGHT CHROME FINISHES If the bike’s size doesn’t grab attention, its bright chrome finishes will.

At a glance

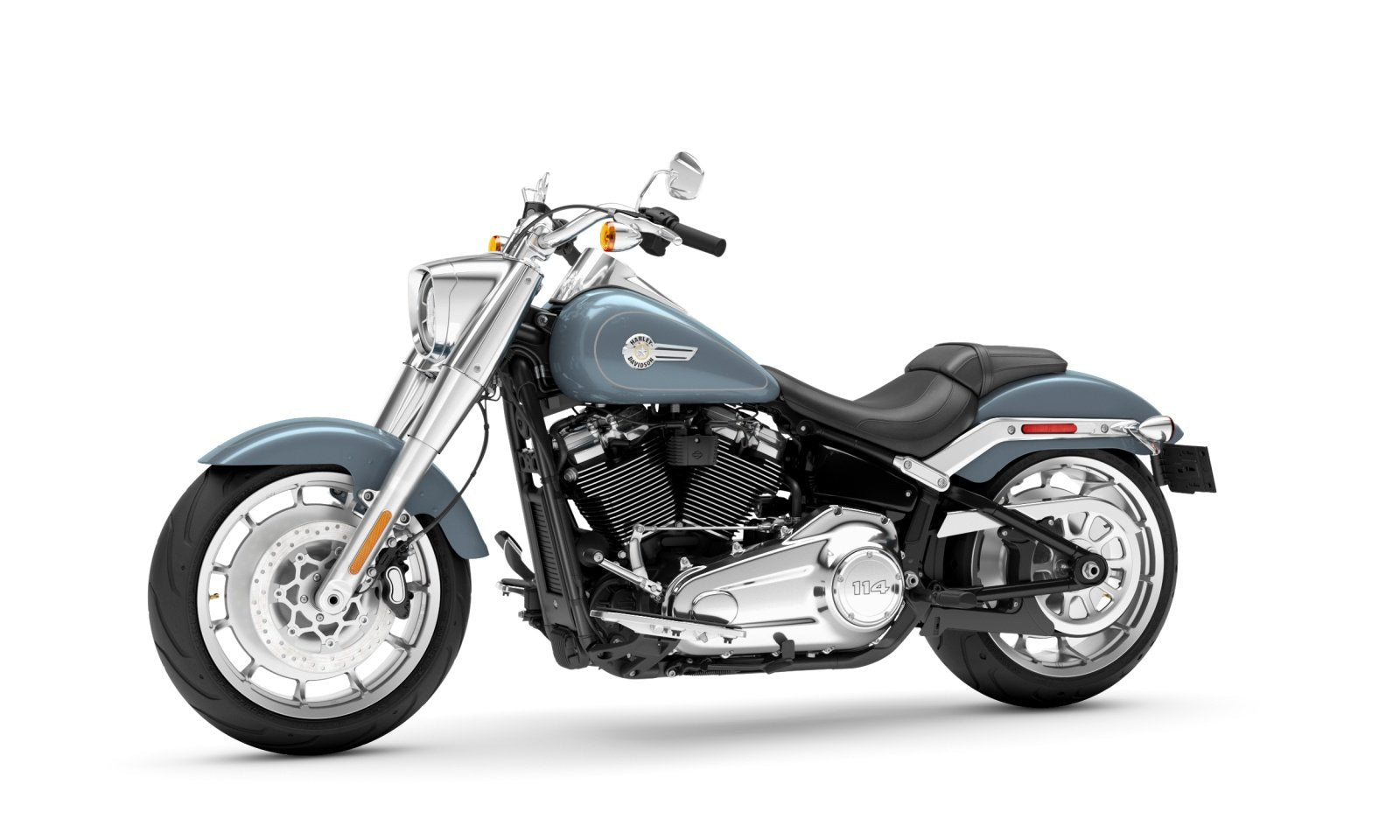

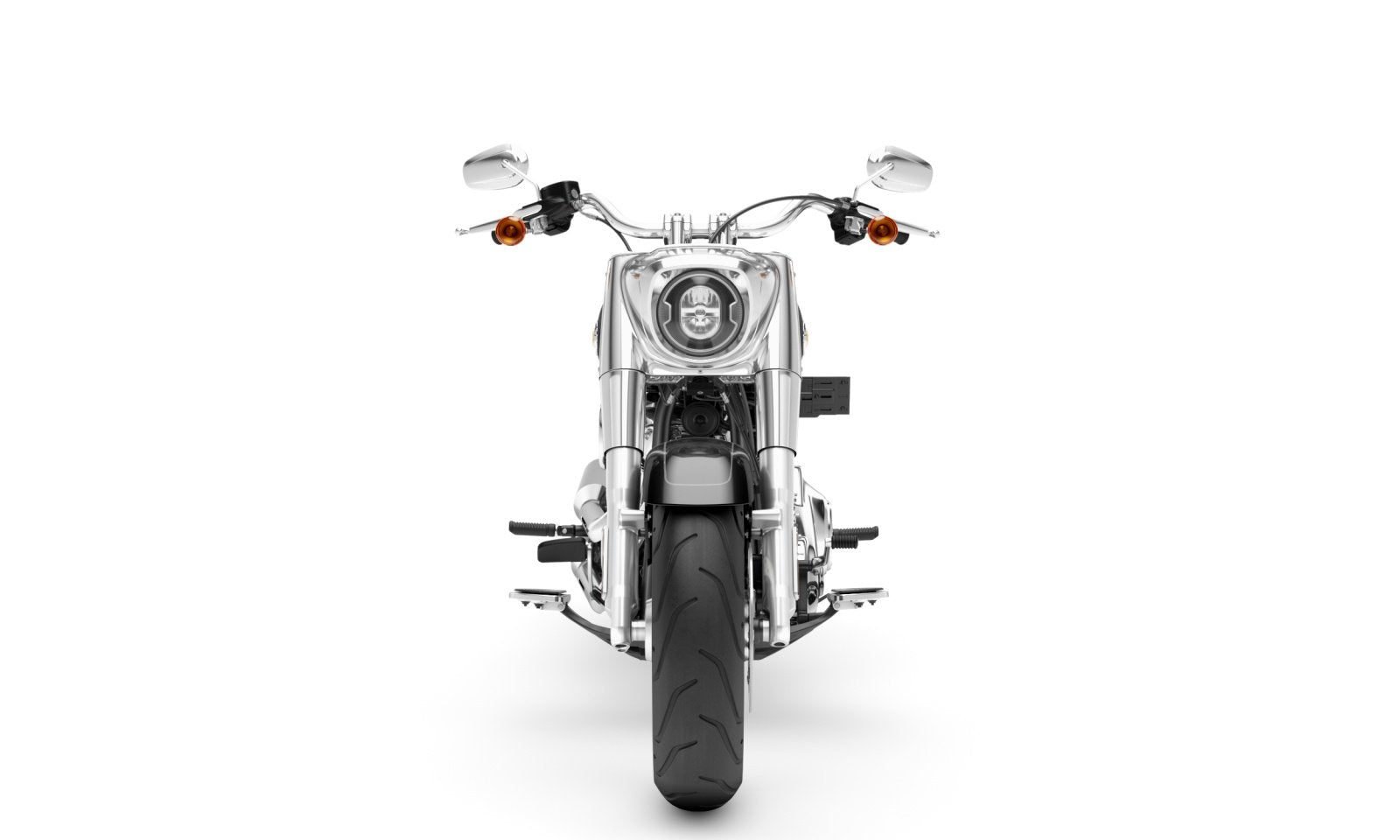

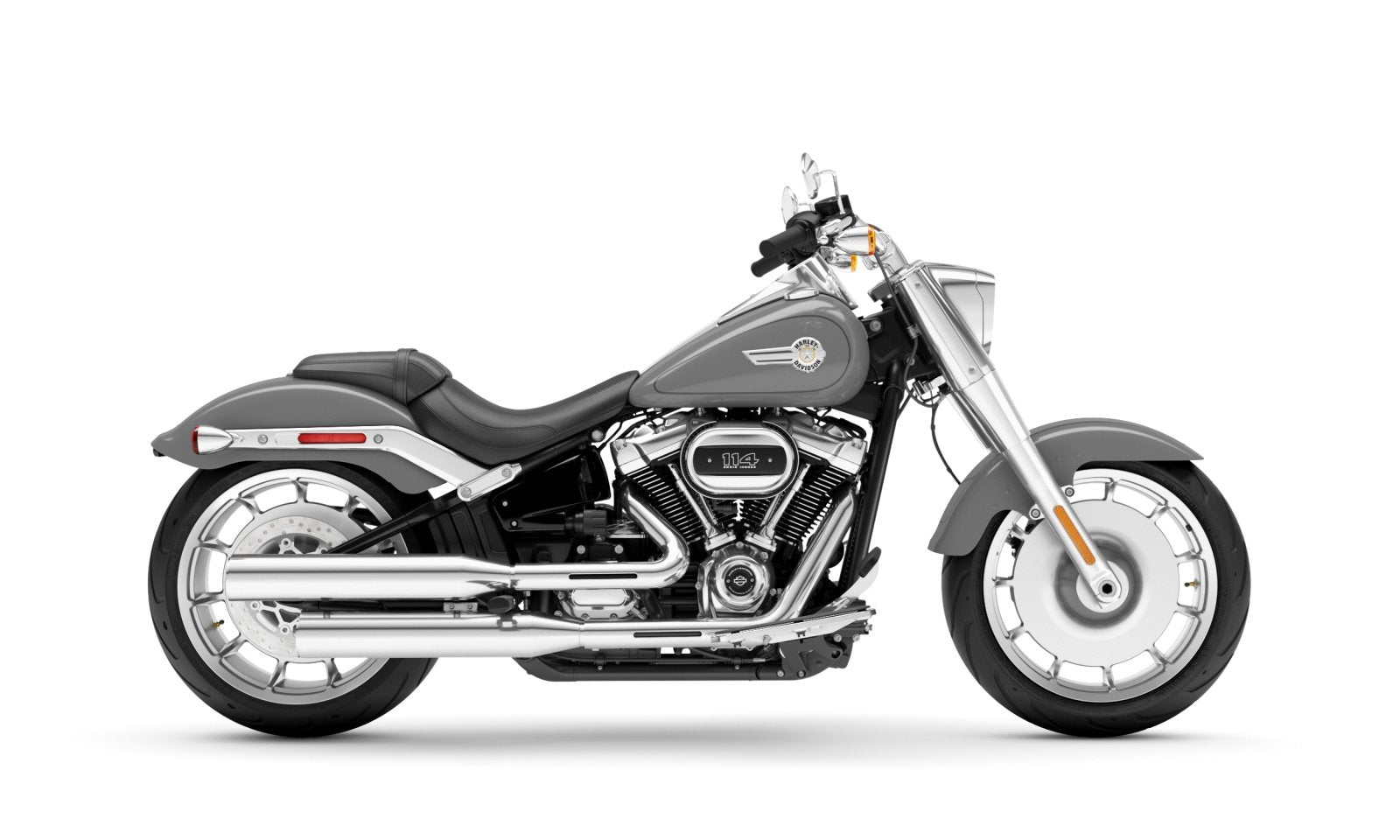

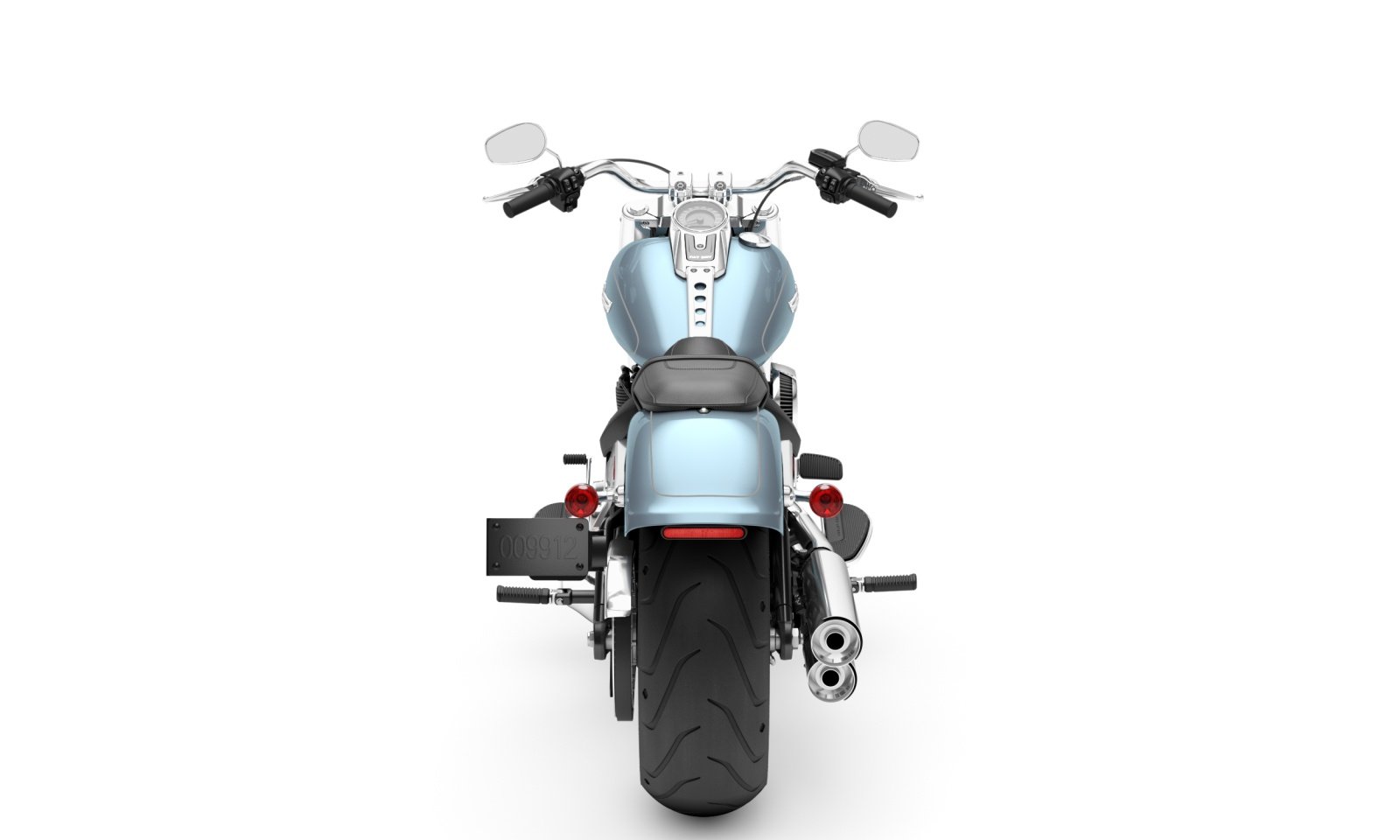

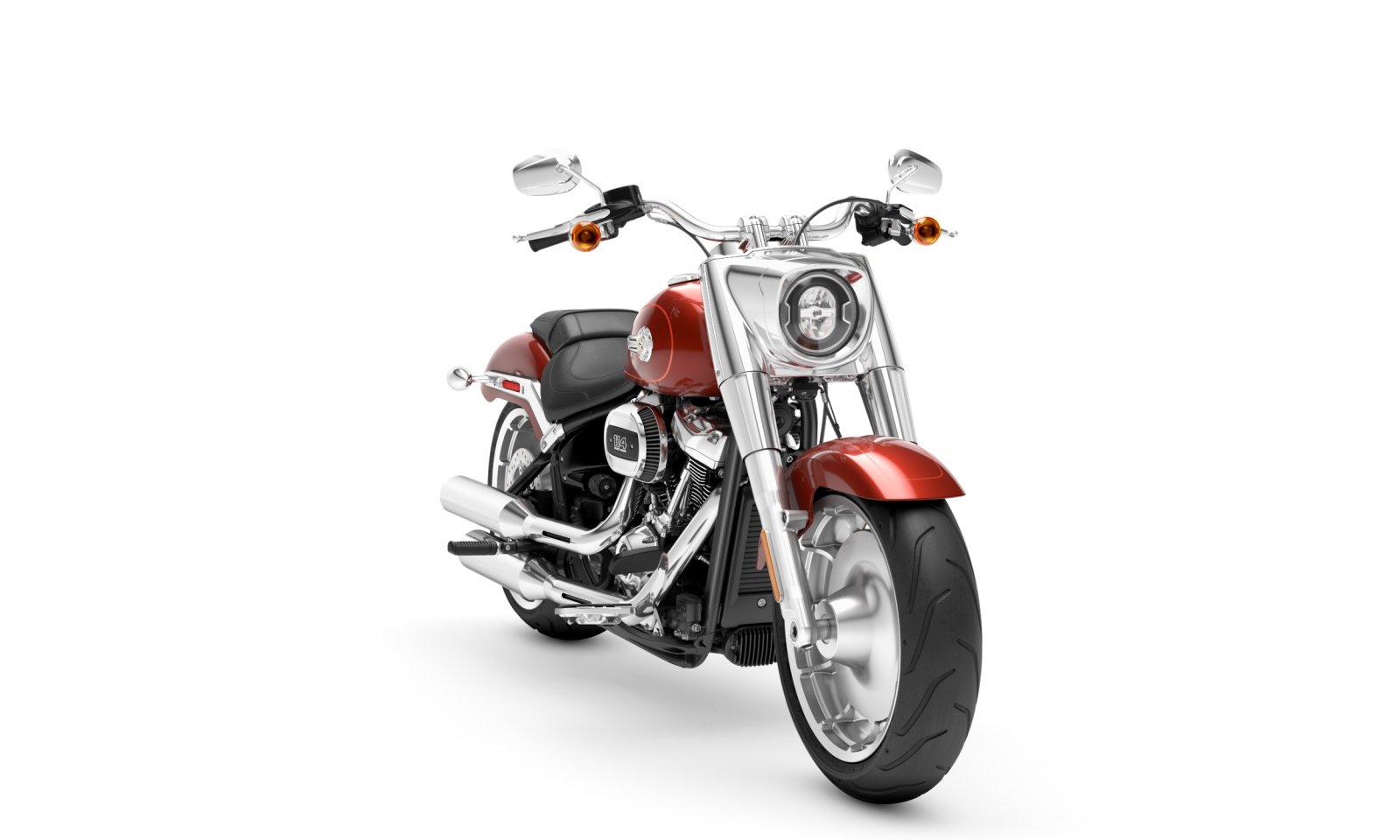

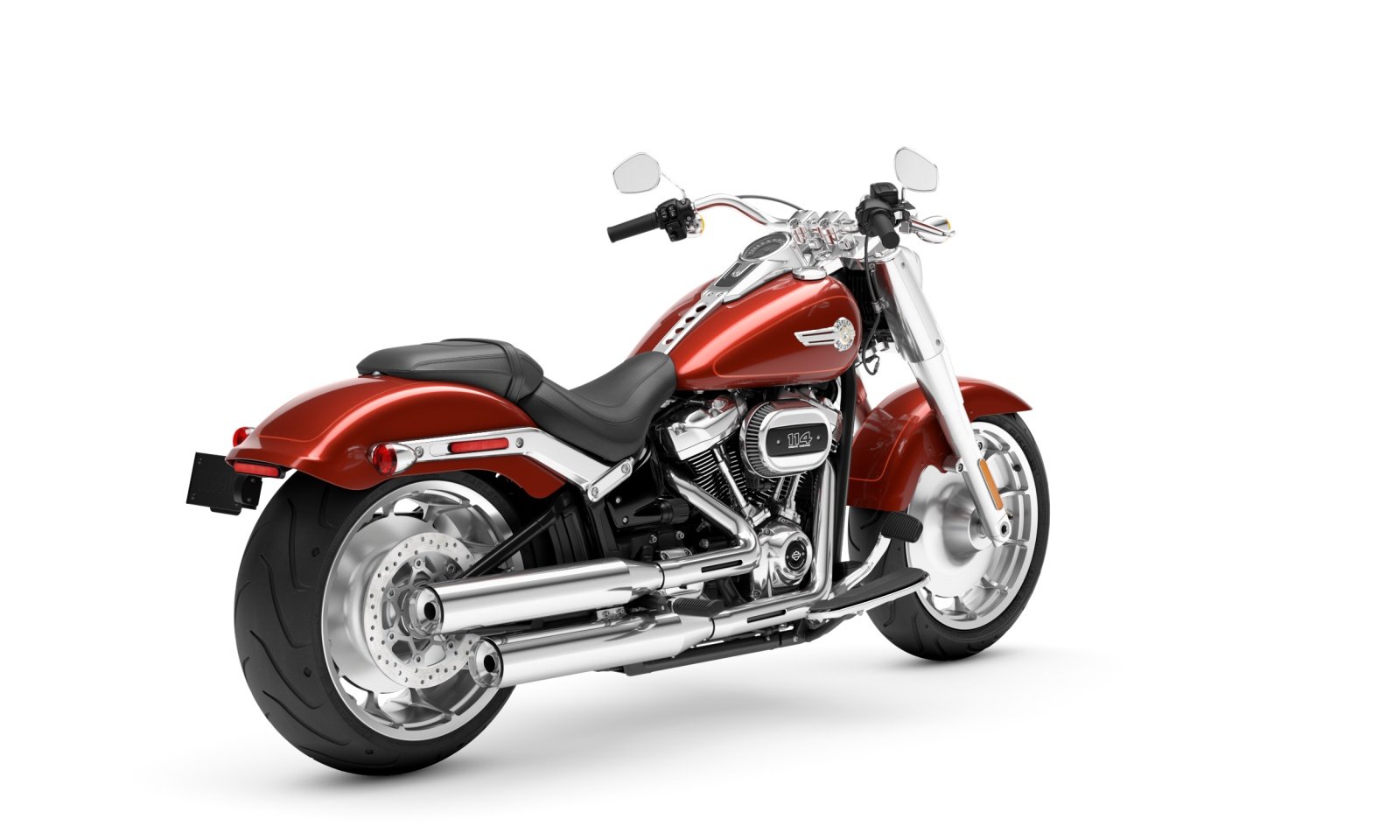

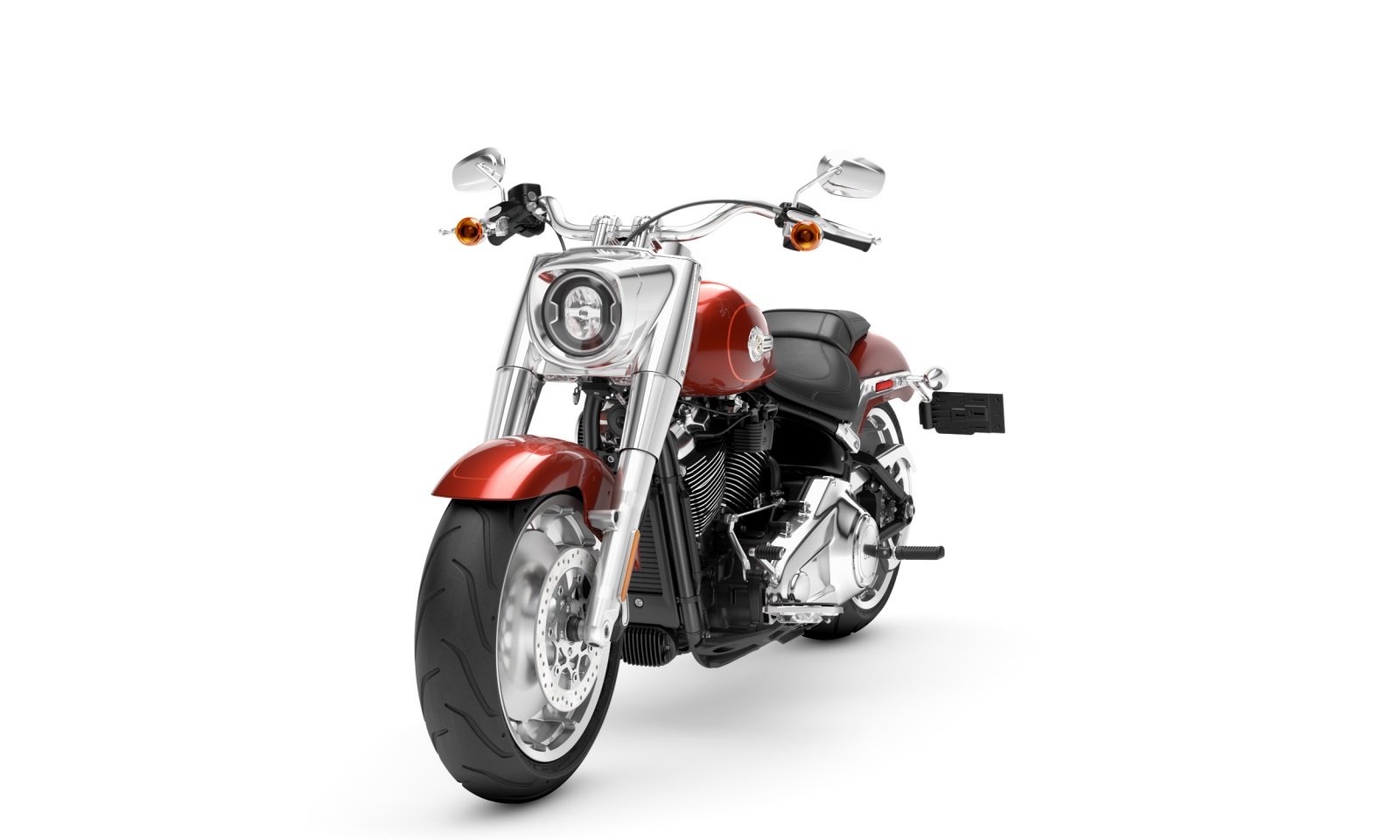

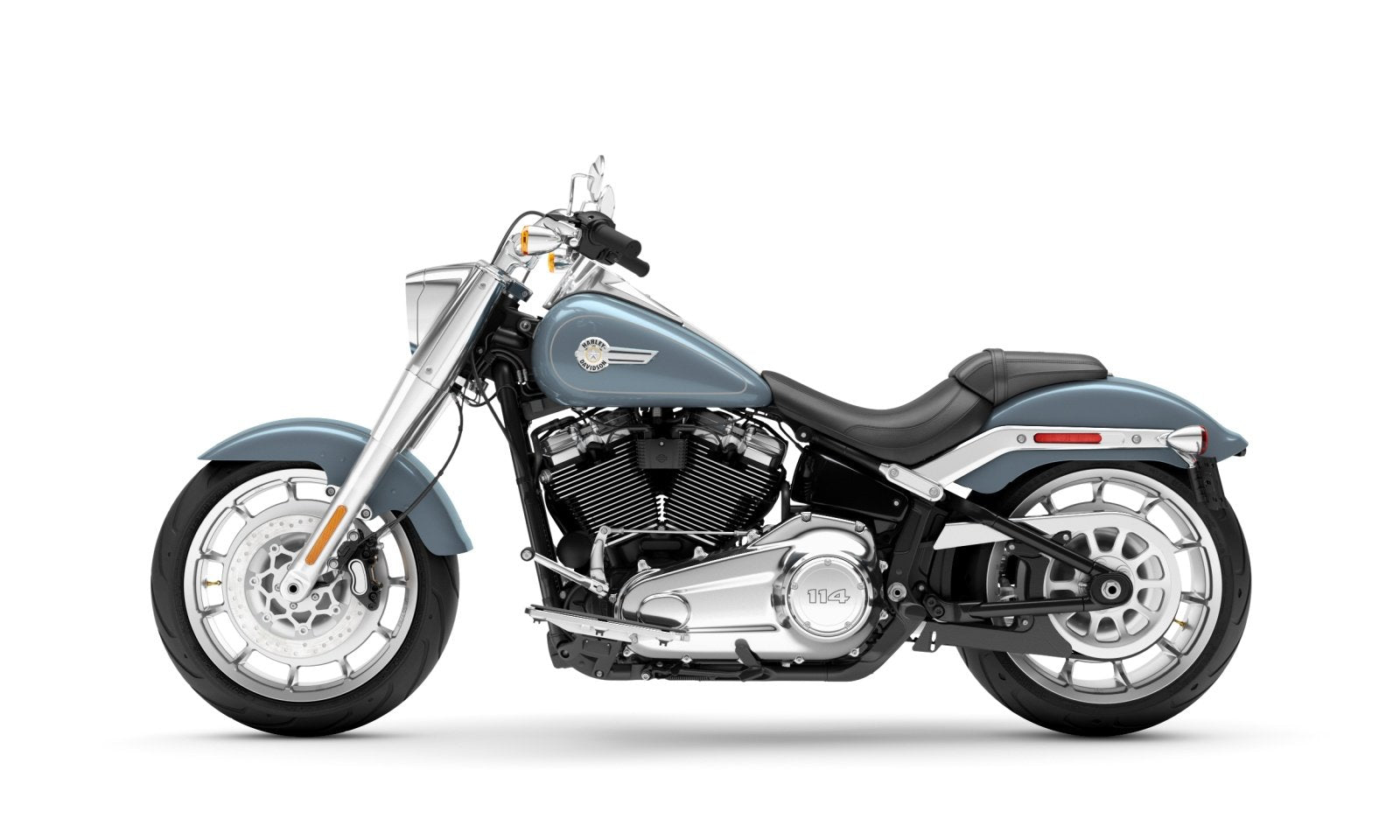

Adored since day one, the singular Harley-Davidson Fat Boy 114 stands out with bright chrome and bold finishes.

Detailed Specs
Dimensions
Length 2,370 mm
Seat Height, Unladen 675 mm
Ground Clearance 115 mm
Rake 30
Trail 104 mm
Wheelbase 1,665 mm
Tyres, Type Michelin™ Scorcher 11, front and rear Tyres,
Front Specification 160/60R18,70V,BW
Tyres, Rear Specification 240/40R18,79V,BW
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 4.7 l
Weight, As Shipped 304 kg
Weight, In Running Order 317 kg

Engine
Engine 2 Milwaukee-Eight™ 114
Bore 102 mm
Stroke 114.3 mm
Displacement 1,868 cc
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 staggered; catalyst in muffler

Performance
Engine Torque Testing Method EC 134/2014
Engine Torque 3 155 Nm
Engine Torque (rpm) 3000
Horsepower 93 HP / 69 kW @ 5020 rpm
Lean Angle, Right (deg.) 25.6
Lean Angle, Left (deg.) 25.6
Fuel Economy Testing Method EU 134/2014
Fuel Economy 5.5 l/100 km

Drive Train
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79

Chassis
Front Fork Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
Rear Shocks Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
Wheels, Front Type 4 Machined, Lakester cast aluminum
Wheels, Rear Type 4 Machined, Lakester cast aluminum
Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type Front and rear silver, Split 7-spoke floating rotors

Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED headlamp, low and high beam with signature position lighting; Integrated, multi-function LED stop/tail/turn signals; Incandescent bullet turn signals; Integrated, multi-function LED stop/tail/turn signals
Gauges
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication Rider Safety Enhancements Anti-lock Brake System (ABS) Included
