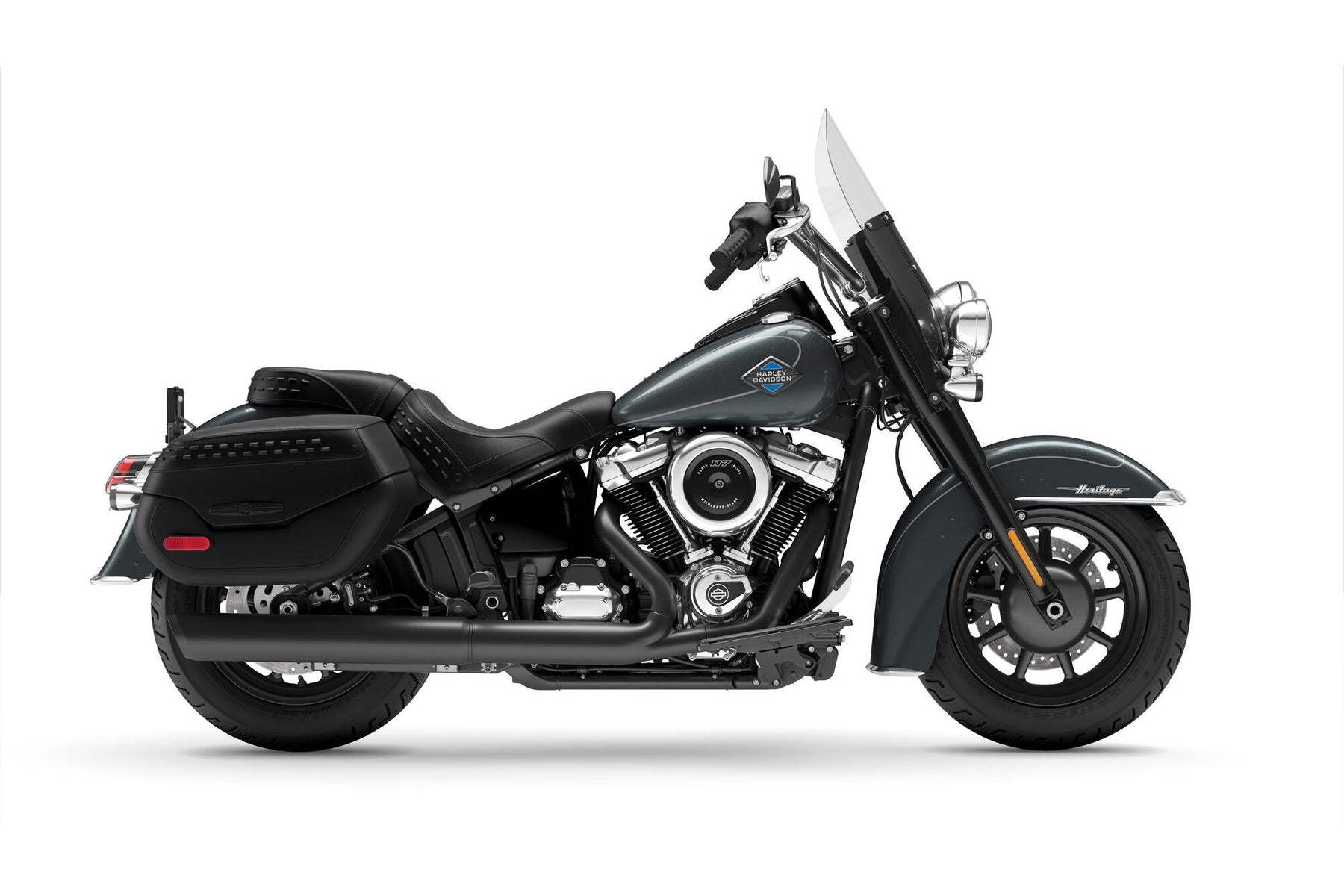

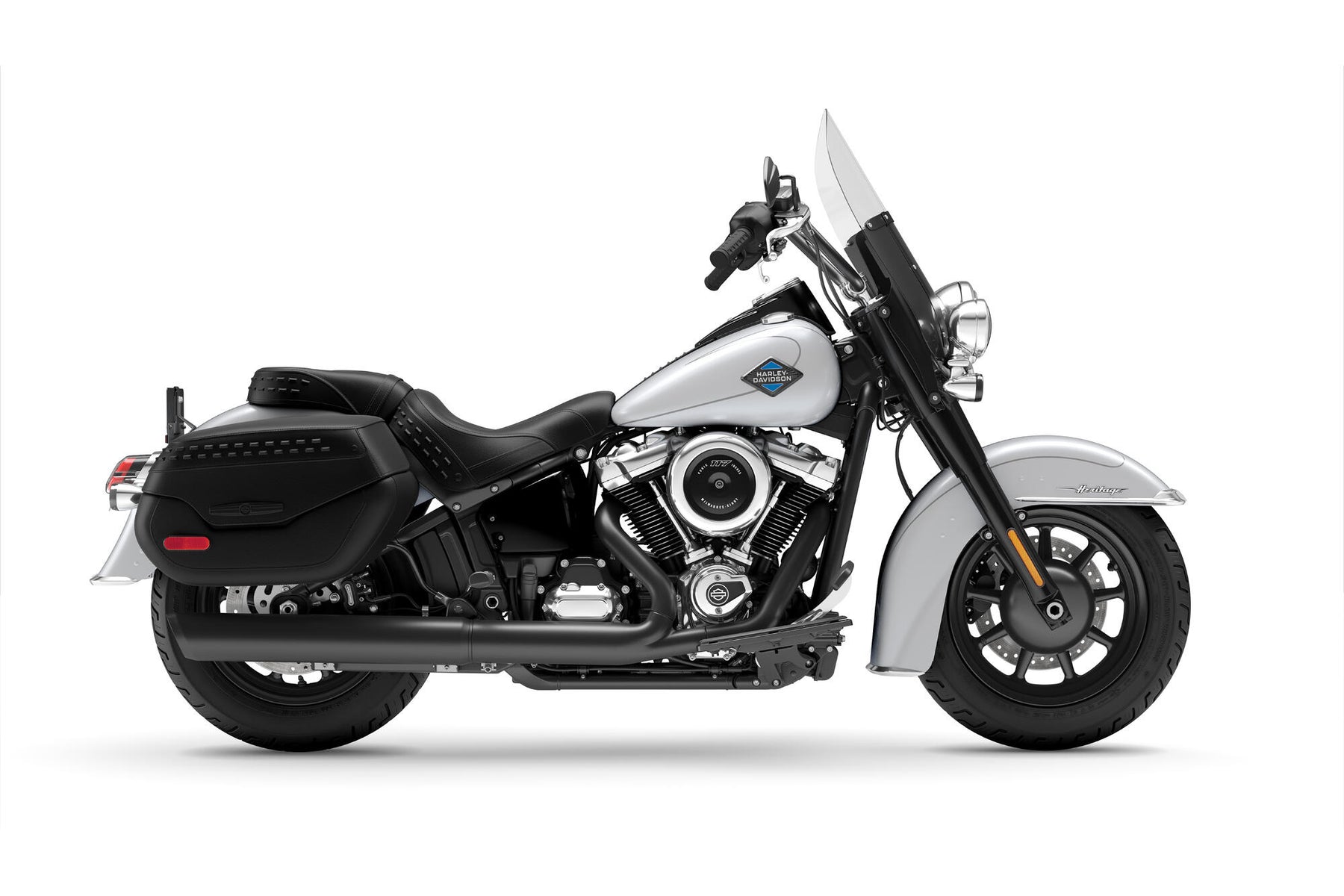

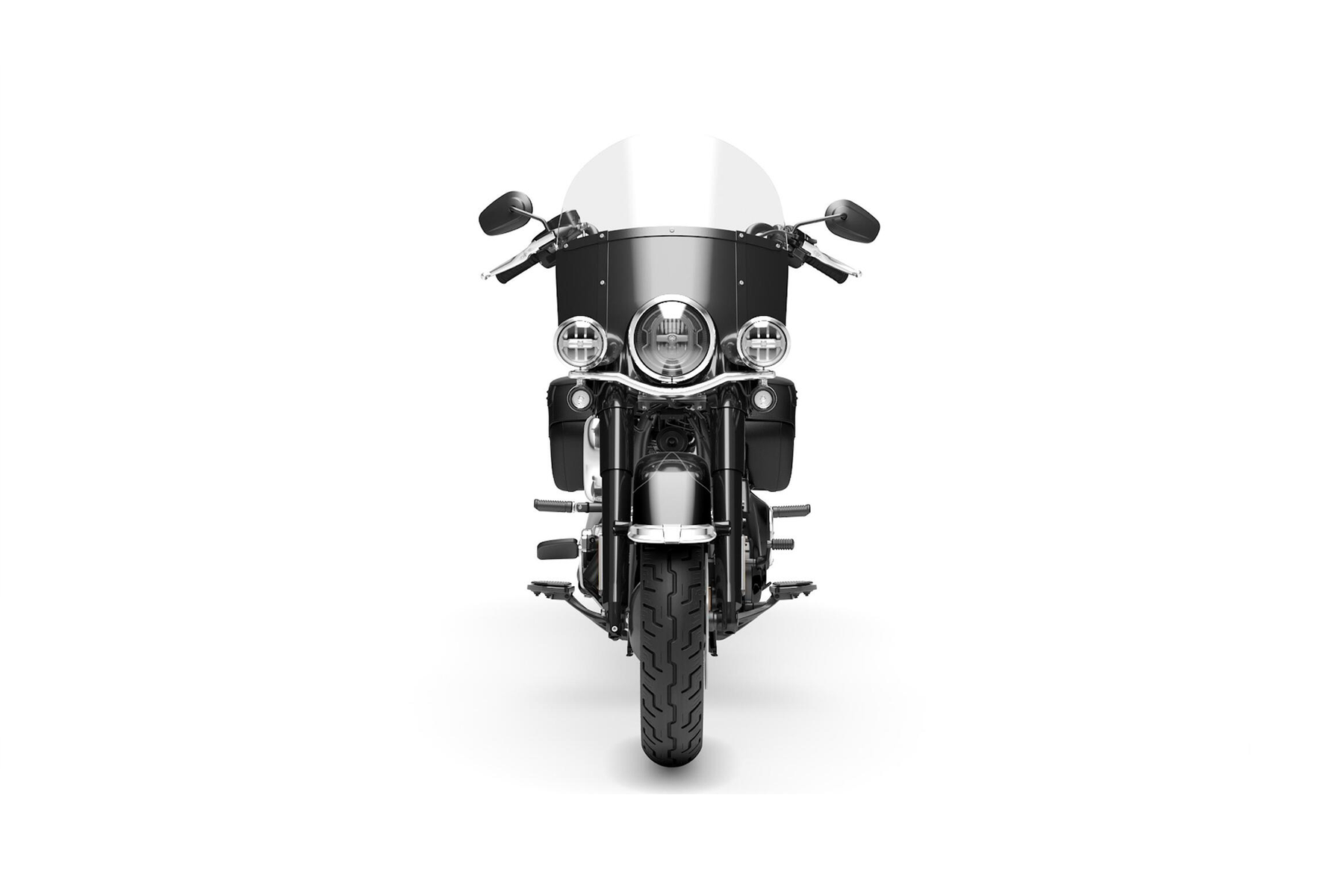

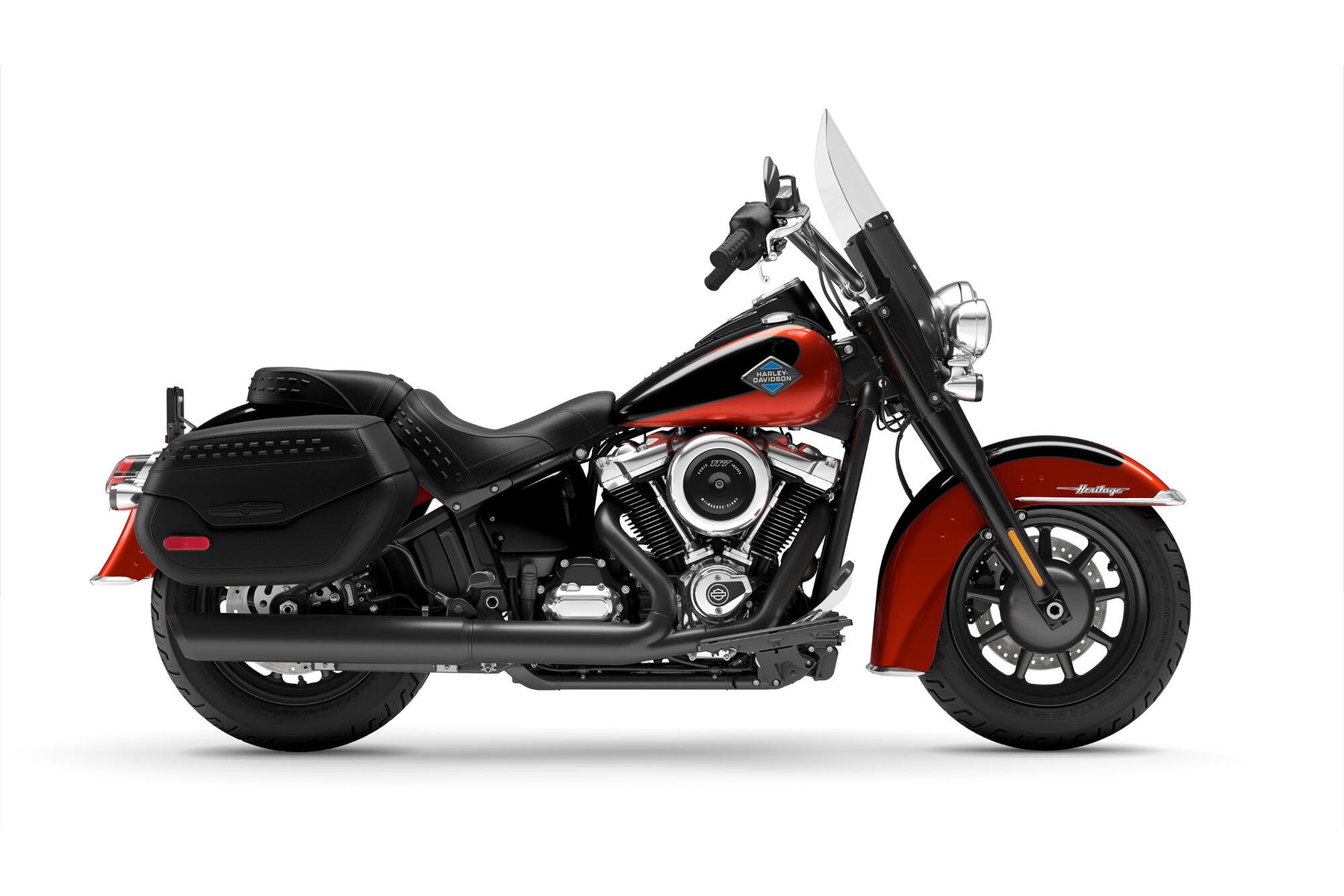

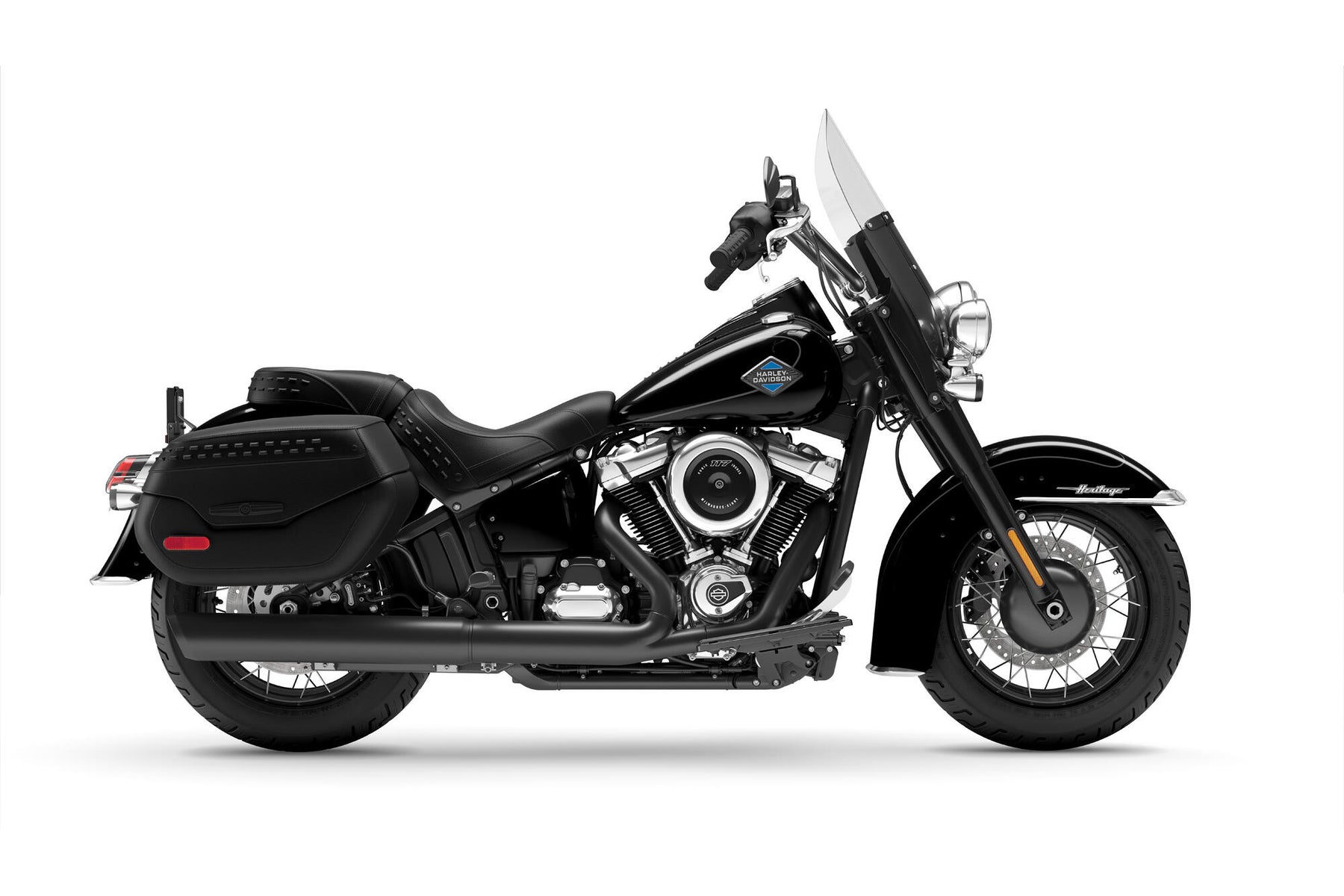

HARLEY-DAVIDSON 2025 HERITAGE™ CLASSIC 117 FLHC
Thanks for your interest in Harley-Davidson. Please provide your details below and a member of our team will be in touch soon.
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.DESIGN

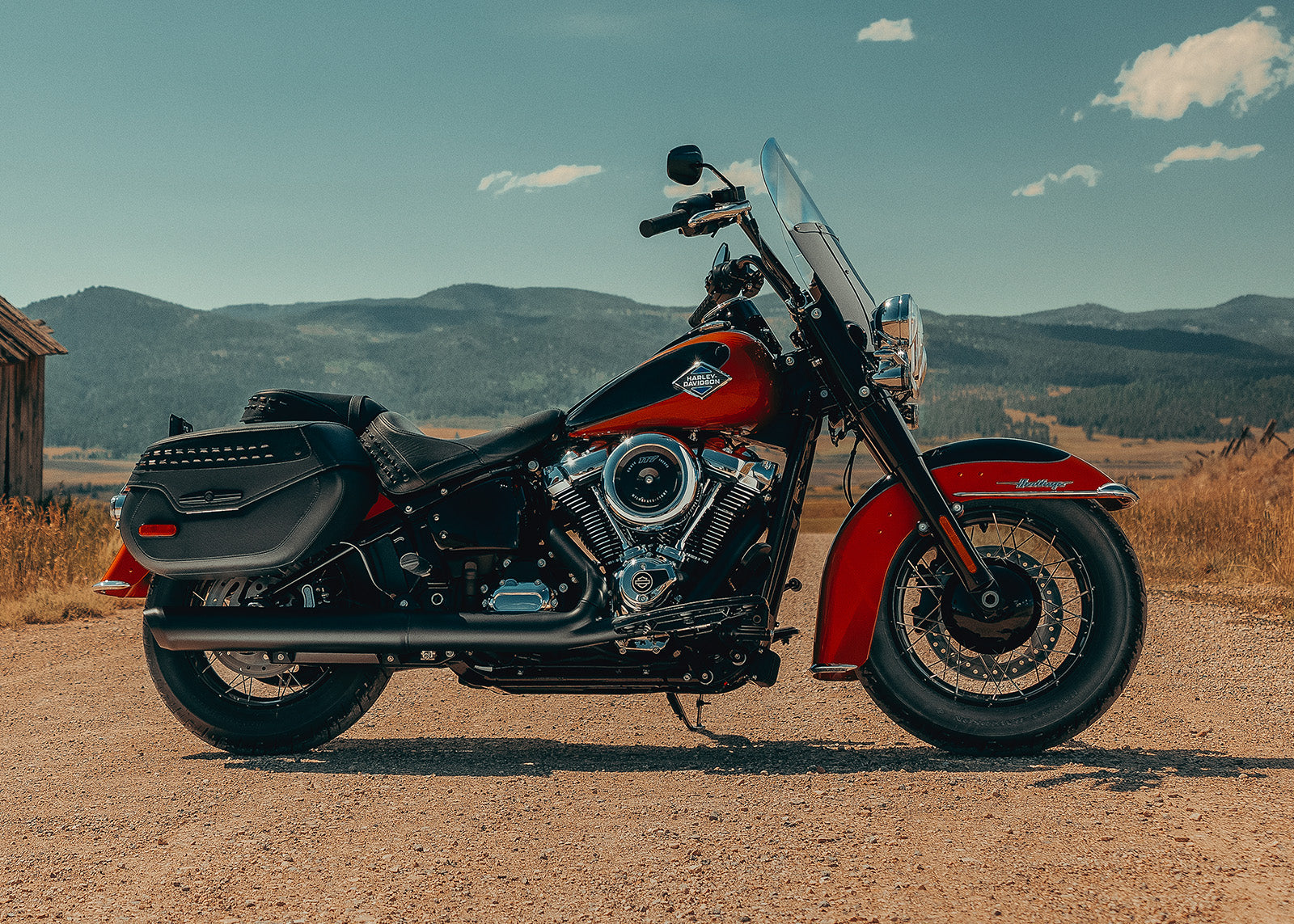

With nostalgic fuel tank medallion, leather-wrapped saddlebags with blackened-nickel studs, and optional laced wheels, old-school cool meets modern design.
MILWAUKEE-EIGHT® 117 CLASSIC ENGINE
Effortless highway cruising with plenty of passing power, thanks to the new, larger displacement Milwaukee-Eight® 117 Classic engine.
TWO IN ONE EXHAUST
Compact, lightweight design tuned for performance and sound while providing a low, sweeping visual line with nostalgic style
FIVE-INCH ANALOG DISPLAY
The nostalgic style of an analogue gauge supported by a digital display that facilitates changes to Ride Modes
DETAILED SPECS
DIMENSIONS
LENGTH | 2,415 mm |
SEAT HEIGHT, UNLADEN | 690 mm |
GROUND CLEARANCE | 120 mm |
RAKE | 30 |
TRAIL | 140 mm |
WHEELBASE | 1,630 mm |
TYRES, FRONT SPECIFICATION | 130/90B16,73H,BW |
TYRES, REAR SPECIFICATION | 150/80B16,77H,BW |
TYRE, TYPE | Dunlop Harley-Davidson Series, bias blackwall front and rear |
FUEL CAPACITY | 18.9 l |
OIL CAPACITY (W/FILTER) | 4.7 l |
WEIGHT, AS SHIPPED | 313kg |
WEIGHT, IN RUNNING ORDER | 326kg |
ENGINE
ENGINE | Milwaukee-Eight® 117 Classic |
BORE | 103.5 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,923 cc |
COMPRESSION RATIO | 10.3:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-into-1; catalyst in header |
PERFORMANCE
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
HORSEPOWER | 95 HP / 71 kW @ 4600 rpm |
ENGINE TORQUE | 156 Nm |
ENGINE TORQUE (RPM) |
2500 |
LEAN ANGLE, RIGHT (DEG.) | 27.4 |
LEAN ANGLE, LEFT (DEG.) | 27.4 |
DRIVE TRAIN
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.311 |
GEAR RATIOS (OVERALL) 2ND | 6.454 |
GEAR RATIOS (OVERALL) 3RD | 4.793 |
GEAR RATIOS (OVERALL) 4TH | 3.882 |
GEAR RATIOS (OVERALL) 5TH | 3.307 |
GEAR RATIOS (OVERALL) 6TH | 2.79 |
CHASSIS
FRONT FORK | Dual-bending valve 49 mm telescopic with aluminium fork triple clamps; dual rate spring; "beer can" covers |
REAR SHOCKS | Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment |

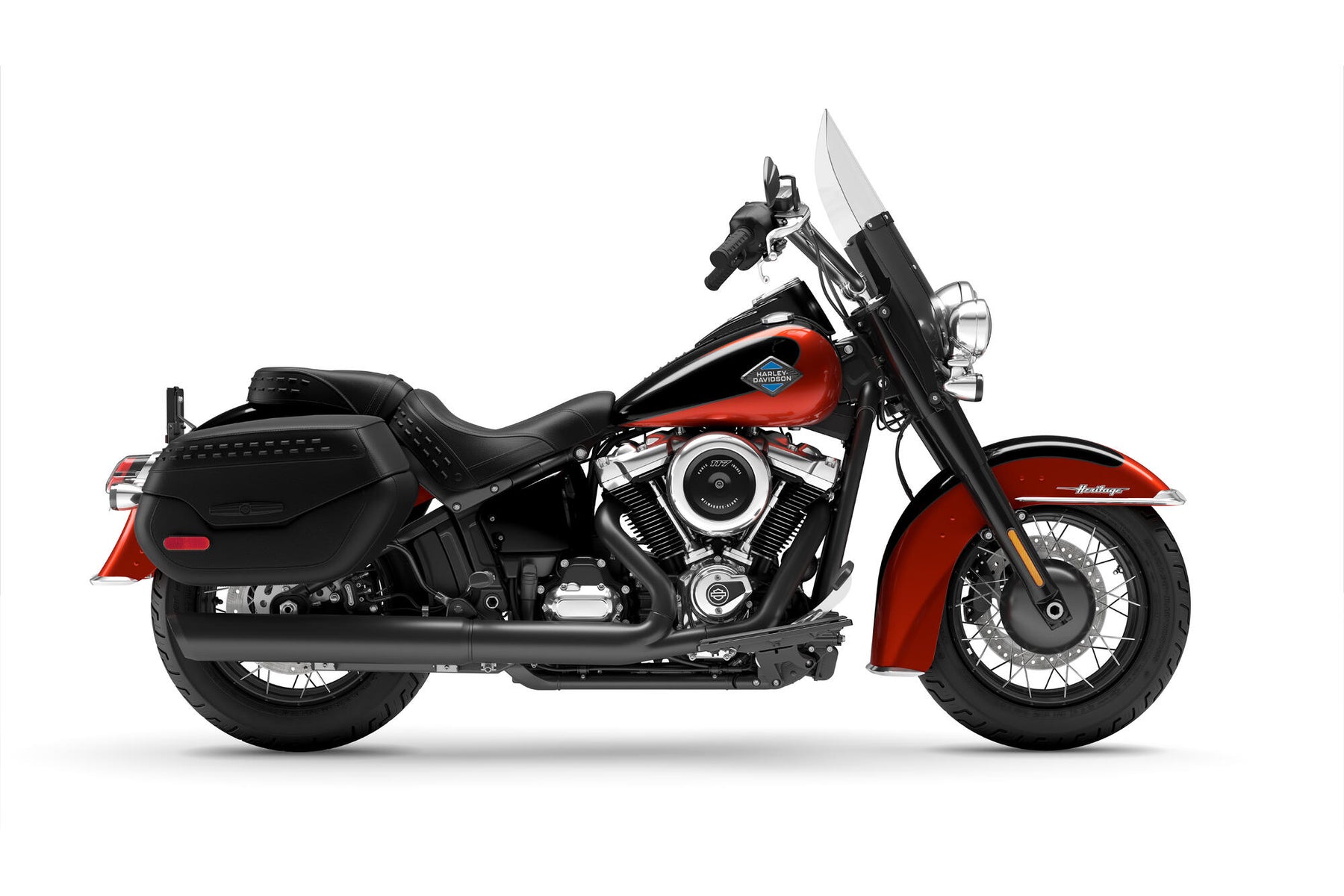

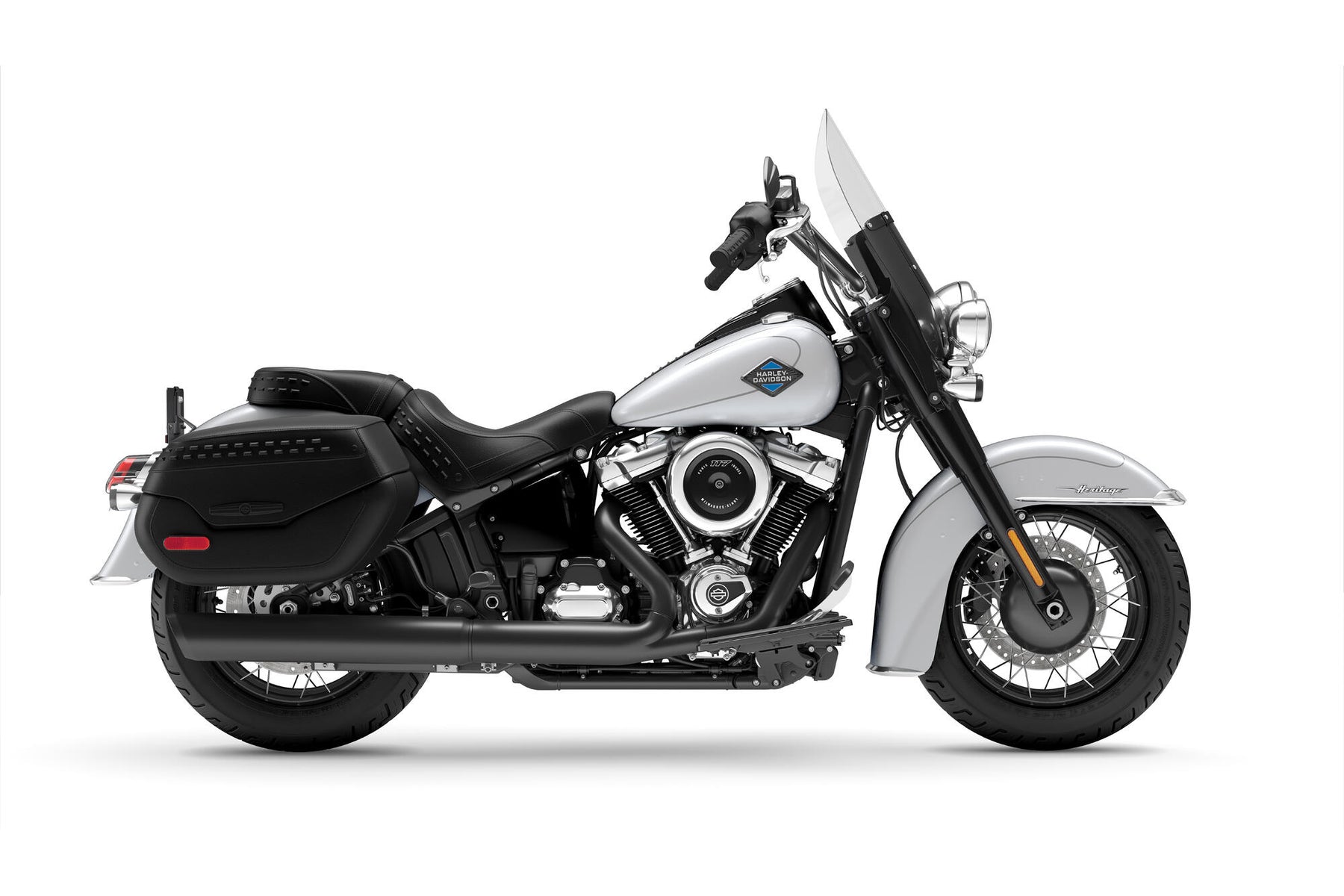

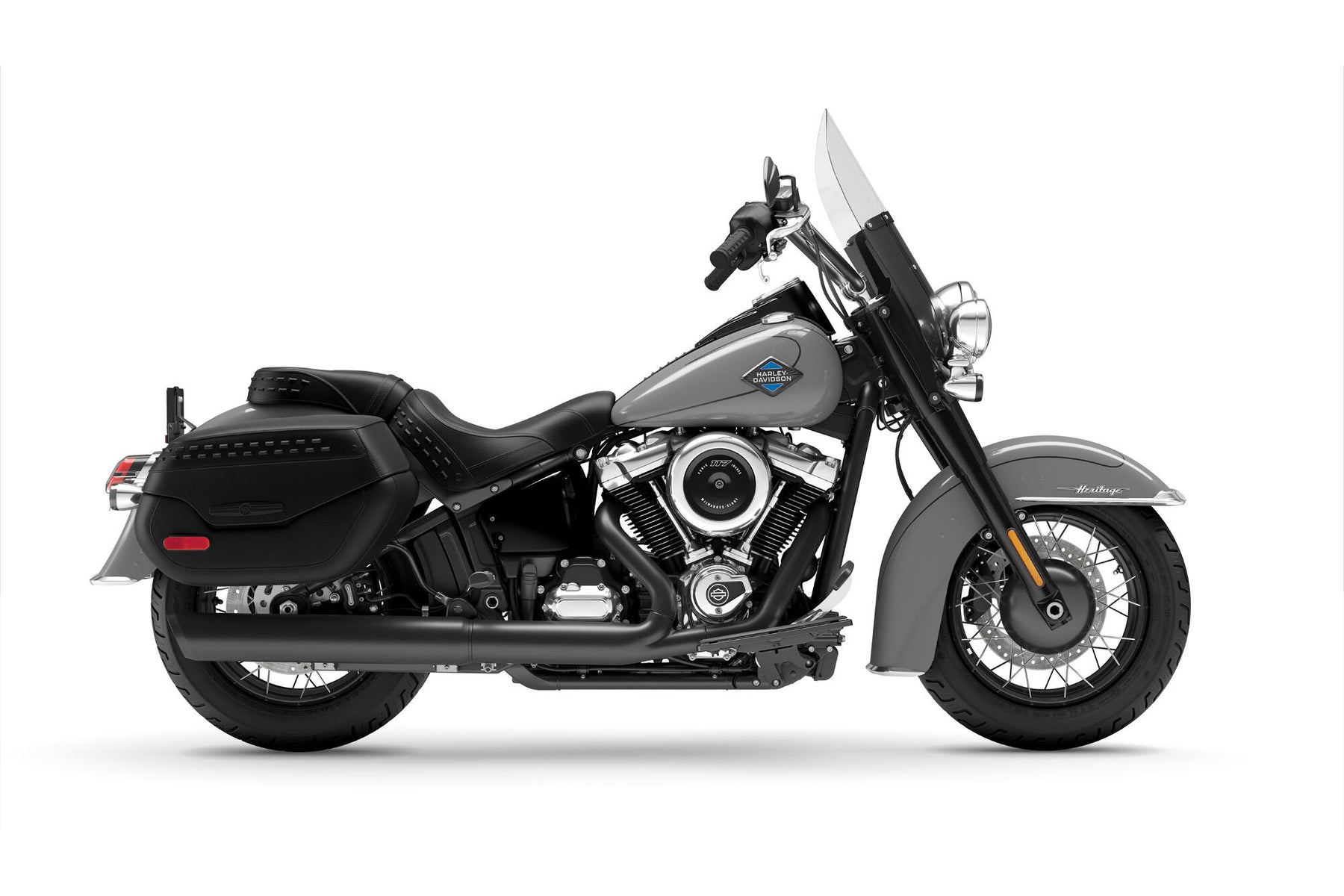

WHEELS, OPTIONAL TYPE |
Black tubeless laced with 36 bright spokes |
WHEELS, FRONT TYPE | Black, 9-Spoke Cast Aluminium |
WHEELS, REAR TYPE | Black, 9-Spoke Cast Aluminium |
BRAKES, CALIPER TYPE | 4-piston fixed front and 2-piston floating rear |
BRAKES, ROTOR TYPE |
Solid, uniform expansion rotors |
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | All LED, low beam, high beam and signature position lamp |
GAUGES | 127 mm (5-inch) analogue speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication |
