HARLEY-DAVIDSON LOW RIDER S 2024
Sale priceFrom$33,250.00 Ride Away Price*Thanks for your interest in Harley-Davidson. Please provide your details below and a member of our team will be in touch soon.
This brand is sold at the following dealerships:
Please contact us for availability of specific models.
Advertised ‘Ride Away Price’*
Advertised ‘Ride Away Price’ includes on road costs and is subject to change. Overseas models may be shown with accessories that are not standard fitment. Fraser Motorcycles reserves the right to vary colours, specifications & pricing at any time.Indicative ‘per week price’**
THE BLACK SHEEP OF THE BLACKTOP.

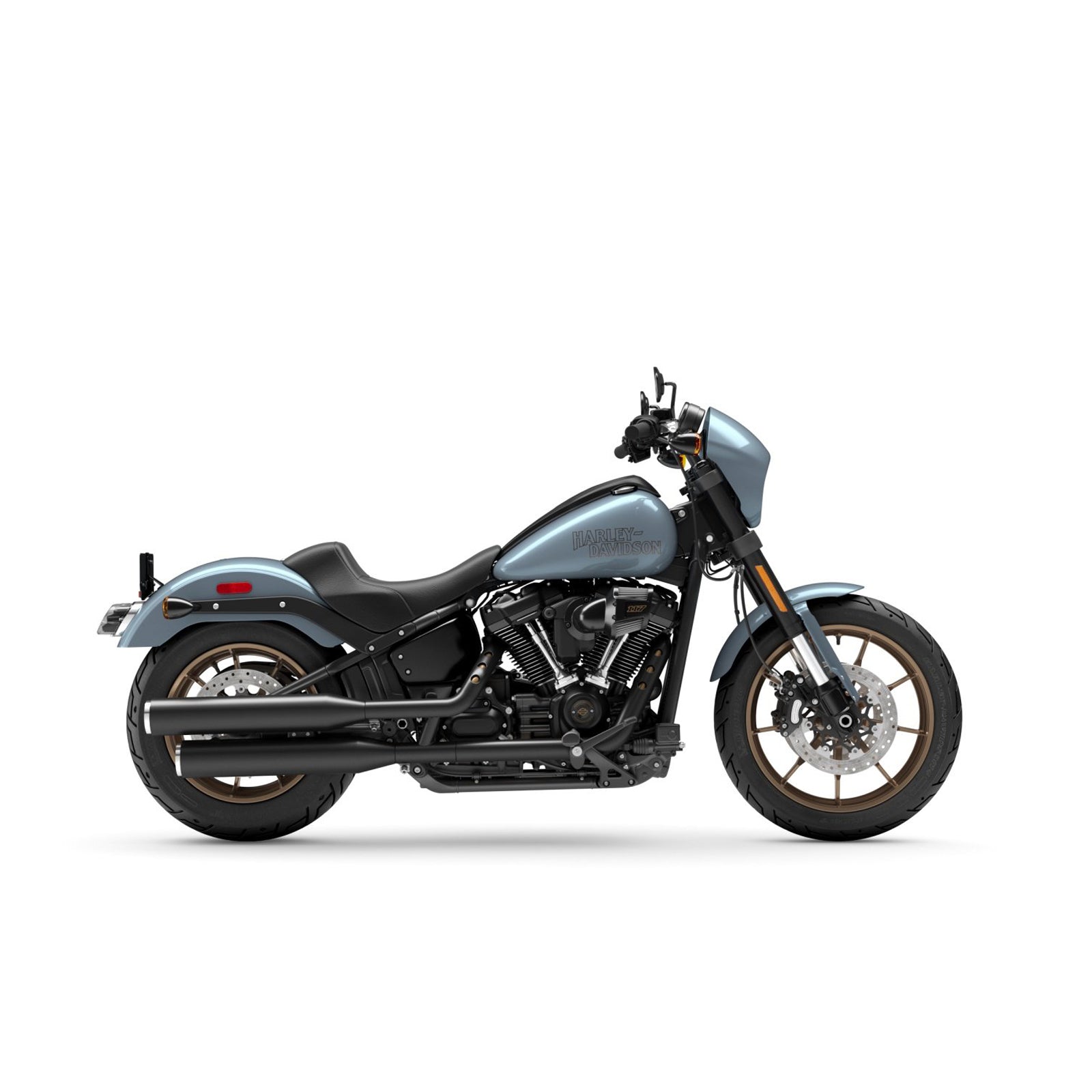

A blacked-out, factory-custom performance cruiser, the Harley-Davidson Low Rider S has West Coast style and Milwaukee muscle.
MILWAUKEE-EIGHT™ 117 ENGINE
High-performance engine with oil and air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson powertrain.
ELECTRONIC CRUISE CONTROL
Your Low Rider S will save you from speeding so you can enjoy the view and embrace true riding bliss.
SPEEDOMETER
HANDLEBARS
Moto handlebar mounted on risers puts the rider in an aggressive posture on the bike.
TANK STYLING
The tank features an FXLRS badge cover and a dropped “H” logo, first seen on early H-D race bikes.
DETAILED SPECS
DIMENSIONS
LENGTH | 2,365 mm |
SEAT HEIGHT, UNLADEN | 710 mm |
GROUND CLEARANCE | 145 mm |
RAKE | 28 |
TRAIL | 145 mm |
WHEELBASE | 1,615 mm |
TYRES, FRONT SPECIFICATION | 110/90B19,62H,BW |
TYRES, REAR SPECIFICATION | 180/70B16,77H,BW |
TYRE, TYPE | Michelin Scorcher "31" front and rear |
FUEL CAPACITY | 18.9 l |
OIL CAPACITY (W/FILTER) | 4.7 l |
WEIGHT, AS SHIPPED | 295 kg |
WEIGHT, IN RUNNING ORDER | 308 kg |
ENGINE
ENGINE | Milwaukee-Eight 117 |
BORE | 103.5 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,923 cc |
COMPRESSION RATIO | 10.2:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-into-2 offset shotgun; catalyst in muffler |
PERFORMANCE
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE | 167 Nm |
ENGINE TORQUE (RPM) | 3,500 |
HORSEPOWER | 103 HP / 77 kW @ 5020 rpm |
LEAN ANGLE, RIGHT (DEG.) | 31.3 |
LEAN ANGLE, LEFT (DEG.) | 31.3 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 5.6 l/100 km |
DRIVE TRAIN
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.311 |
GEAR RATIOS (OVERALL) 2ND | 6.454 |
GEAR RATIOS (OVERALL) 3RD | 4.793 |
GEAR RATIOS (OVERALL) 4TH | 3.882 |
GEAR RATIOS (OVERALL) 5TH | 3.307 |
GEAR RATIOS (OVERALL) 6TH | 2.79 |
CHASSIS
FRONT FORK | Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring |
REAR SHOCKS |
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment |
WHEELS, FRONT TYPE | Dark bronze, Radiate cast aluminium wheel |
WHEELS, REAR TYPE | Dark bronze, Radiate cast aluminium wheel |
BRAKES, TYPE | Front and rear black, Split 7-spoke floating rotors |
BRAKES, CALIPER TYPE | -piston fixed front and 2-piston floating rear |
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | All LED, low beam, high beam and signature position lamp; LED Zeppelin tail lamp; Incandescent bullet turn signals |
GAUGES |
4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication |
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS) |
Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
